Job Card D/R A287 - Collimator DC-DC Board
5. Power on the Gantry and check that no errors are raised on the Gantry LCD display.
6. Check that the LED states are as follows. For more information about the behavior and states of the
Collimator Control board LEDs, refer to Collimator Control Board PL403 on page 295.
7. Reboot the Senographe system and verify that the Collimator blades move as expected.
7 COMPLETION
None.
LED Label LED Color LED Status
DS1 Green ON
DS2 Green OFF or ON
DS3 Green ON
DS4 Green ON
DS5 Green ON
DS6 Green OFF
DS7 Red OFF
DS8 Red OFF
DS9 Red OFF
DS10 Red OFF

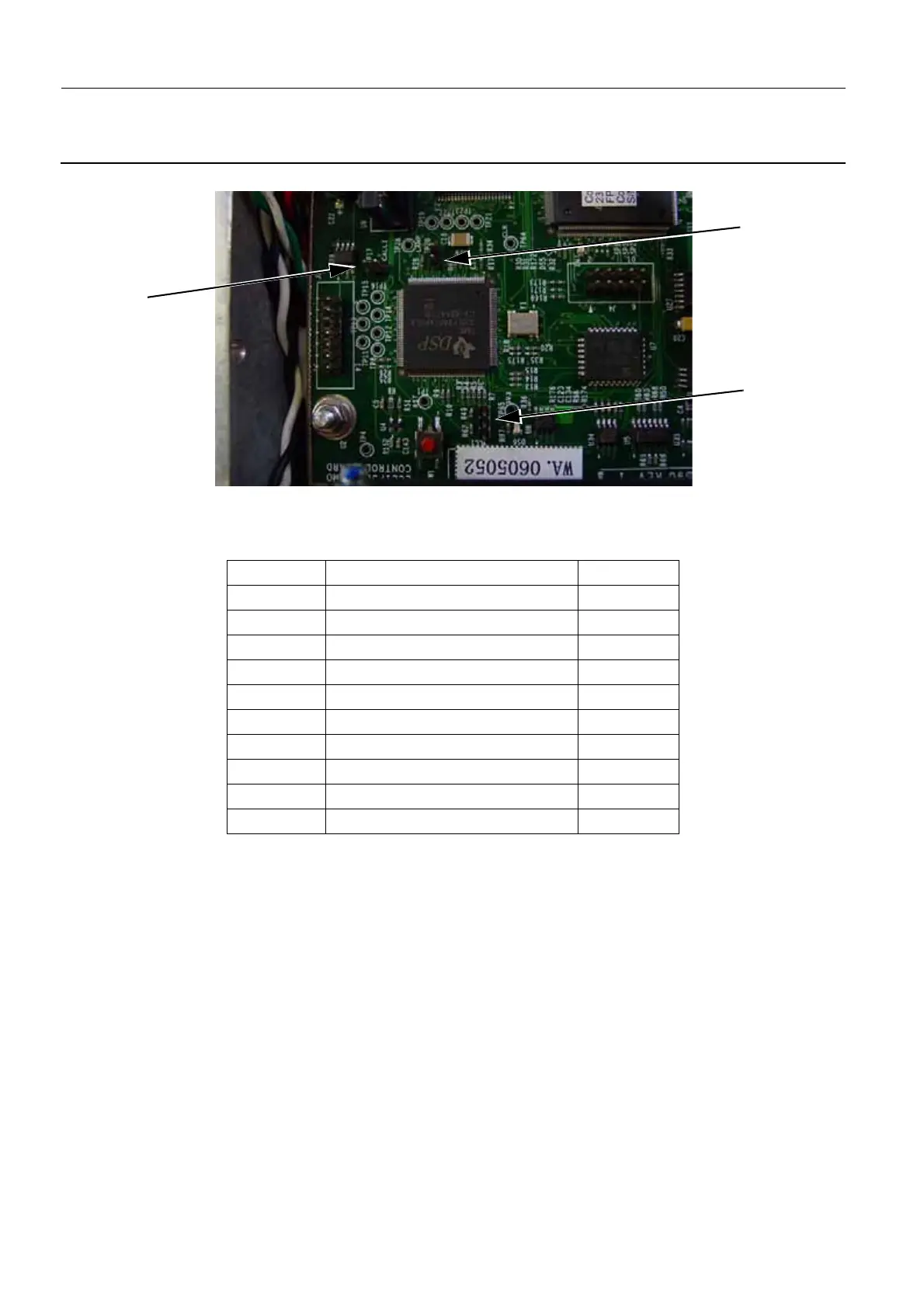

CC1TP
TP20
TP17
