Chapter 9 Page no. 1386
JC-DR-A-288.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A288 - Collimator Lamp

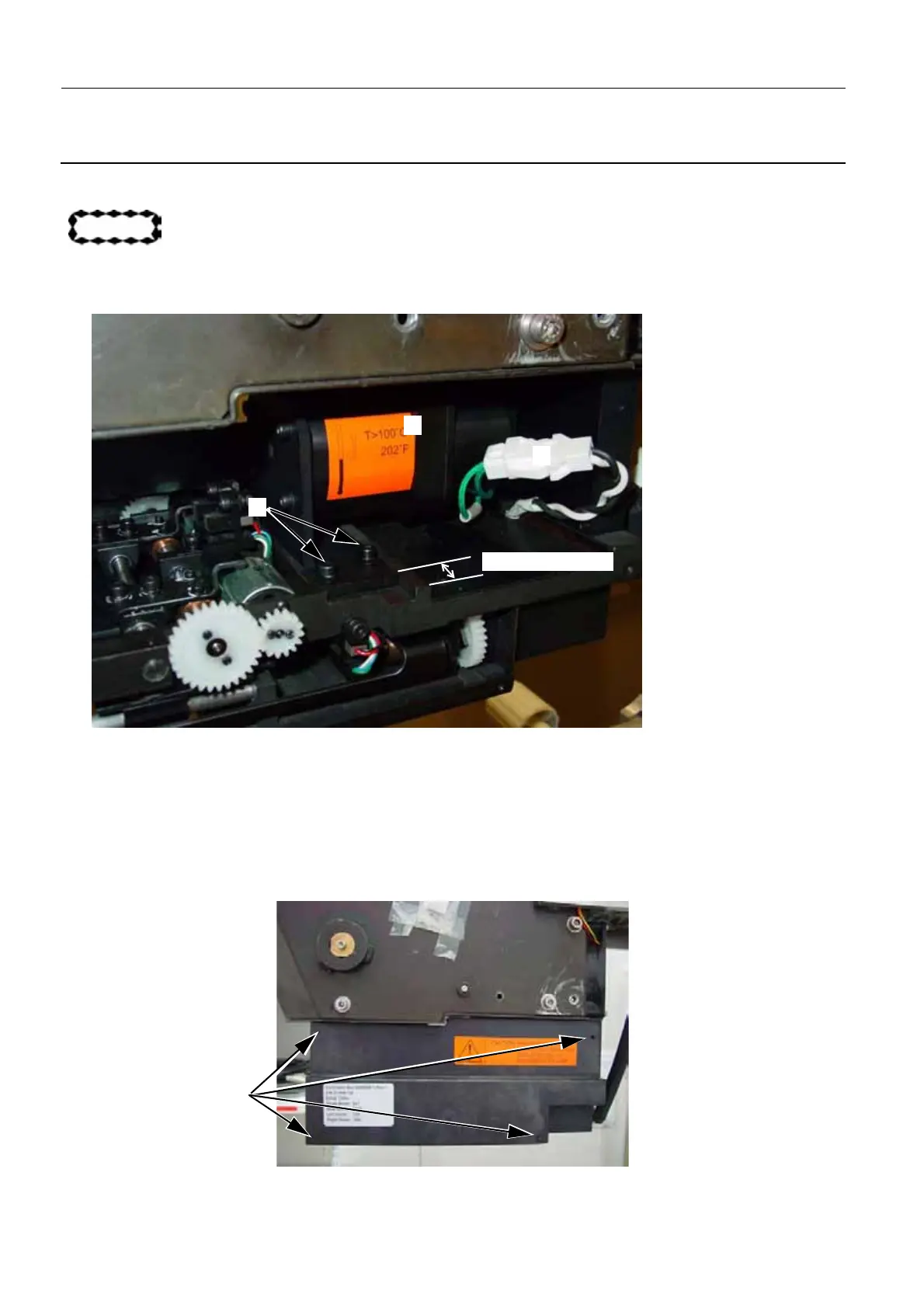

6-2 Install the New Lamp
CAUTION
When handling the new lamp, do not to touch its surface with your fingers. Always use a
clean dry cloth or paper handkerchief.
1. Slide the new lamp (1) into position until it reaches the end of the slot.
2. Partially secure the lamp with washers and allen screws (2) inside the collimator (2.5 mm allen
wrench), so that its position can be adjusted.
3. Adjust the position of the lamp to so that the end of its support is 11.5 mm from the side of the Colli-
mator.
4. Fully secure the lamp, tightening the allen screws (2) to a torque of 1.1 Nm.
5. Connect the lamp to the cable (3).
6. Reinstall the right collimator cover with the small screws (4) (small Pozi screwdirver).
Position = 11.5 mm
3
1
2
4
To Next Page
