GE Senographe DS User Manual

Chapter 9 Page no. 1408
JC-DR-A-311.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A311 - AWS Unit

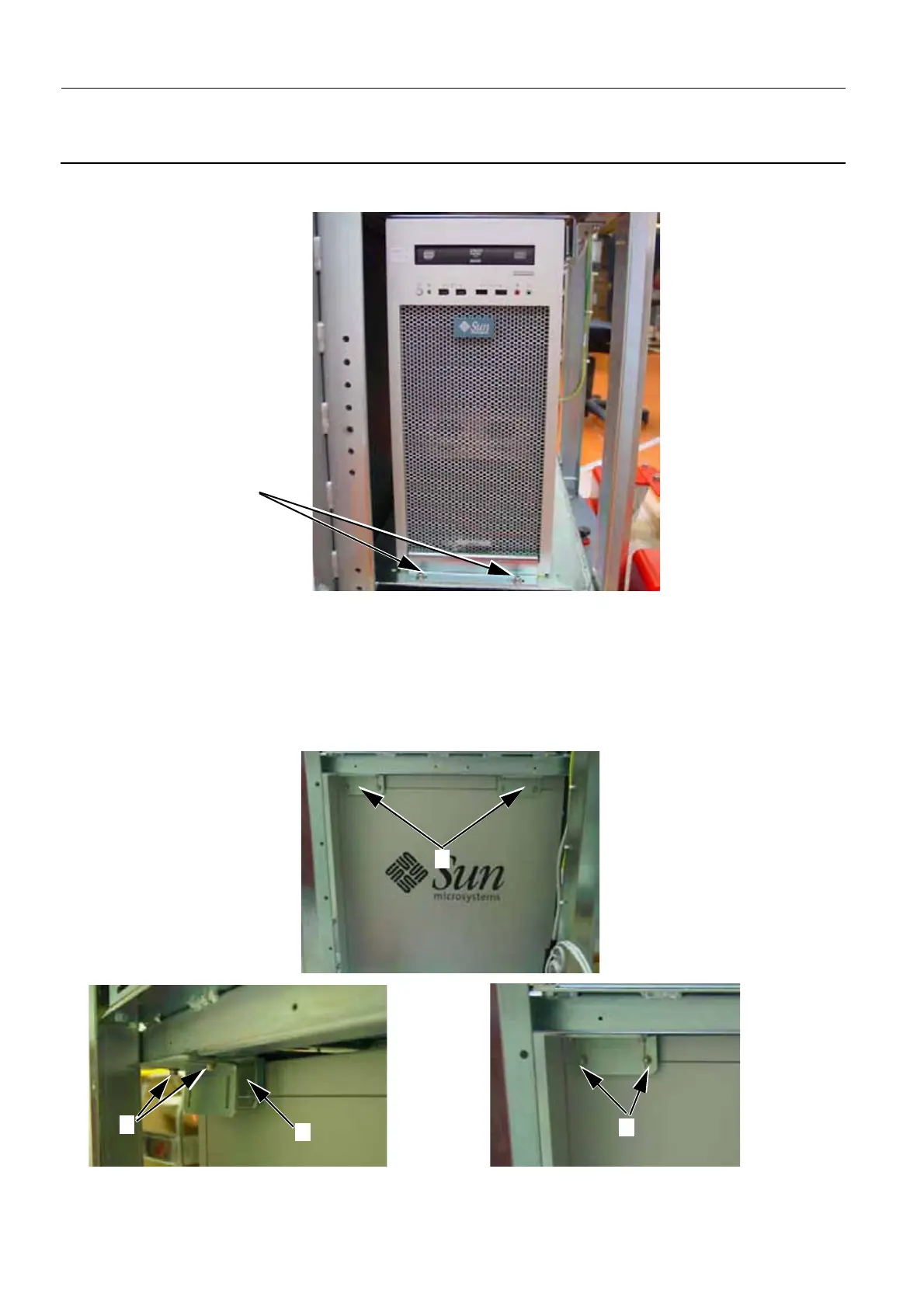

3. Attach the two allen screws and associated bracket (3) to secure the front of the AWS unit (4 mm
allen wrench).
4. Secure the top of the AWS unit to each of the side L-brackets (4) as follows:
a. Gently place the C-bracket (5) on the top of the AWS unit, so that its threads line up with the holes
on the L-bracket.
b. Push the L-bracket away onto threads of the C-Bracket.
c. Attach the two nuts (6) to secure the L-bracket to the C-bracket (7 mm open ended wrench).
d. Tighten the two allen screws (7) to secure the L-bracket to the Control Station framework (4 mm
allen wrench).
3
4
6
7
5
