Job Card D/R A311 - AWS Unit

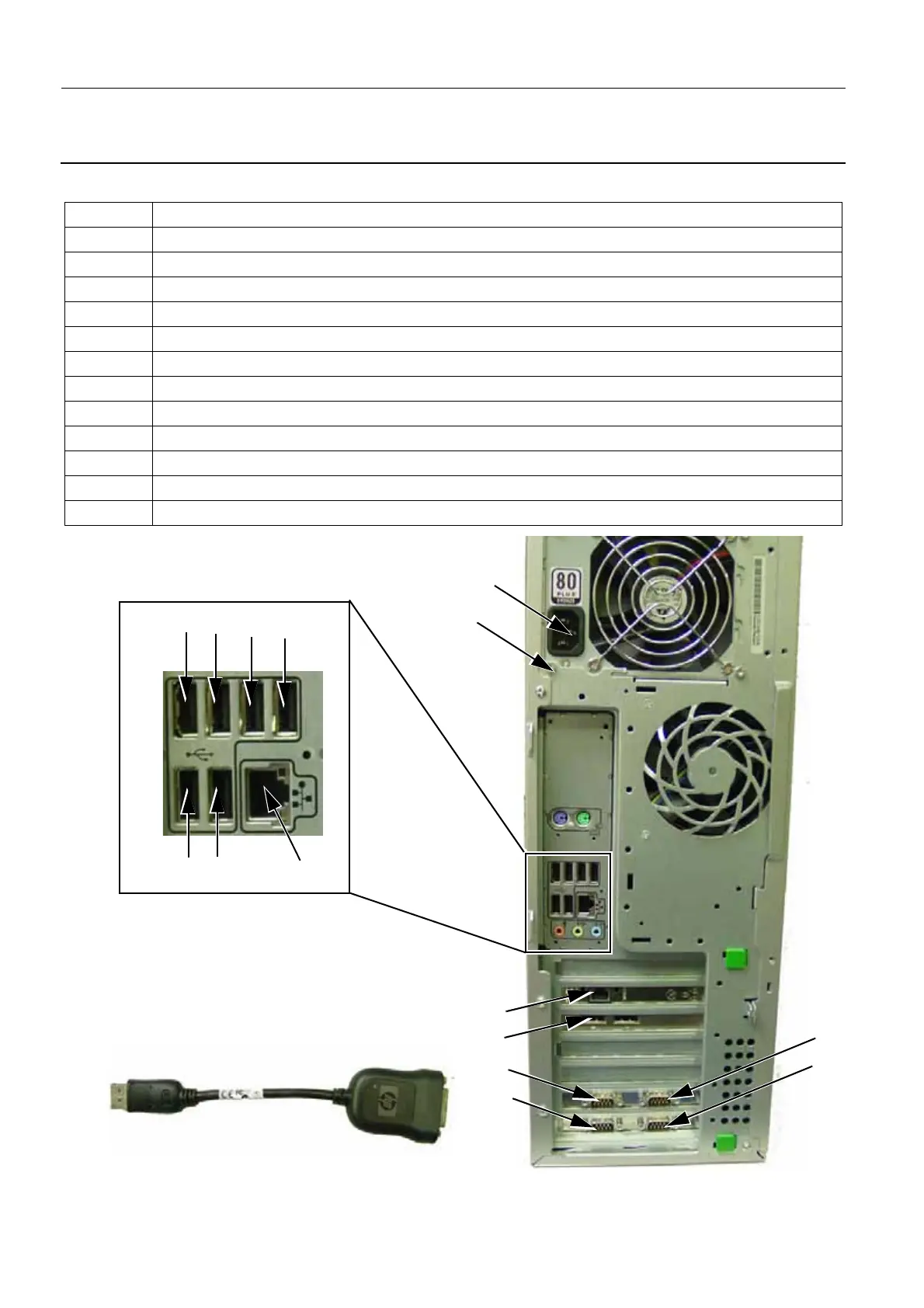

10 ADS REAR PANEL CONNECTORS (HP Z400 WORKSTATION)
Reference Function
1 AC input
2 Monitor DVI Cable 5177284-2 via a DVI-I - display port adaptor cable supplied with the Z400.
3 Mouse or Trackball USB Link
4 Keyboard USB Link
5, 6, 8 Not used
7 Bar Code Reader USB Link
9 Internal Ethernet Switch (IDC, AWS, Gantry) (2389288-2)
10 External Ethernet Link (to hospital network)
11 Not used
12 Generator-UPS-ADS Serial Link 2387162
13 Generator Serial Link 2226625
14 Service-specific cable
13
2
12
14
9
3
8
4
7
11
1
Ground
Note: Ensure that the monitor DVI cable is connected
to the left hand side display port (number 1) on the back
of the ADS computer. The monitor DVI cable must be
connected to the display port via a DVI-I - display port
adaptor cable shown below.
