Chapter 9 Page no. 1418
JC-DR-A-312.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A312 - Mouse
7 PROCEDURE FOR ERGOTRON B ARMS
7-1 Disassembly of Mouse on Ergotron B Arms
1. Unplug and remove the X-ray Console.
2. Remove Control Station Top Cover. See Job Card PHY A040 - Remove/Reinstall Control Station
Covers on page 503.
3. Remove Control Station Omega Cover. See Job Card PHY A040 - Remove/Reinstall Control Station
Covers on page 503.

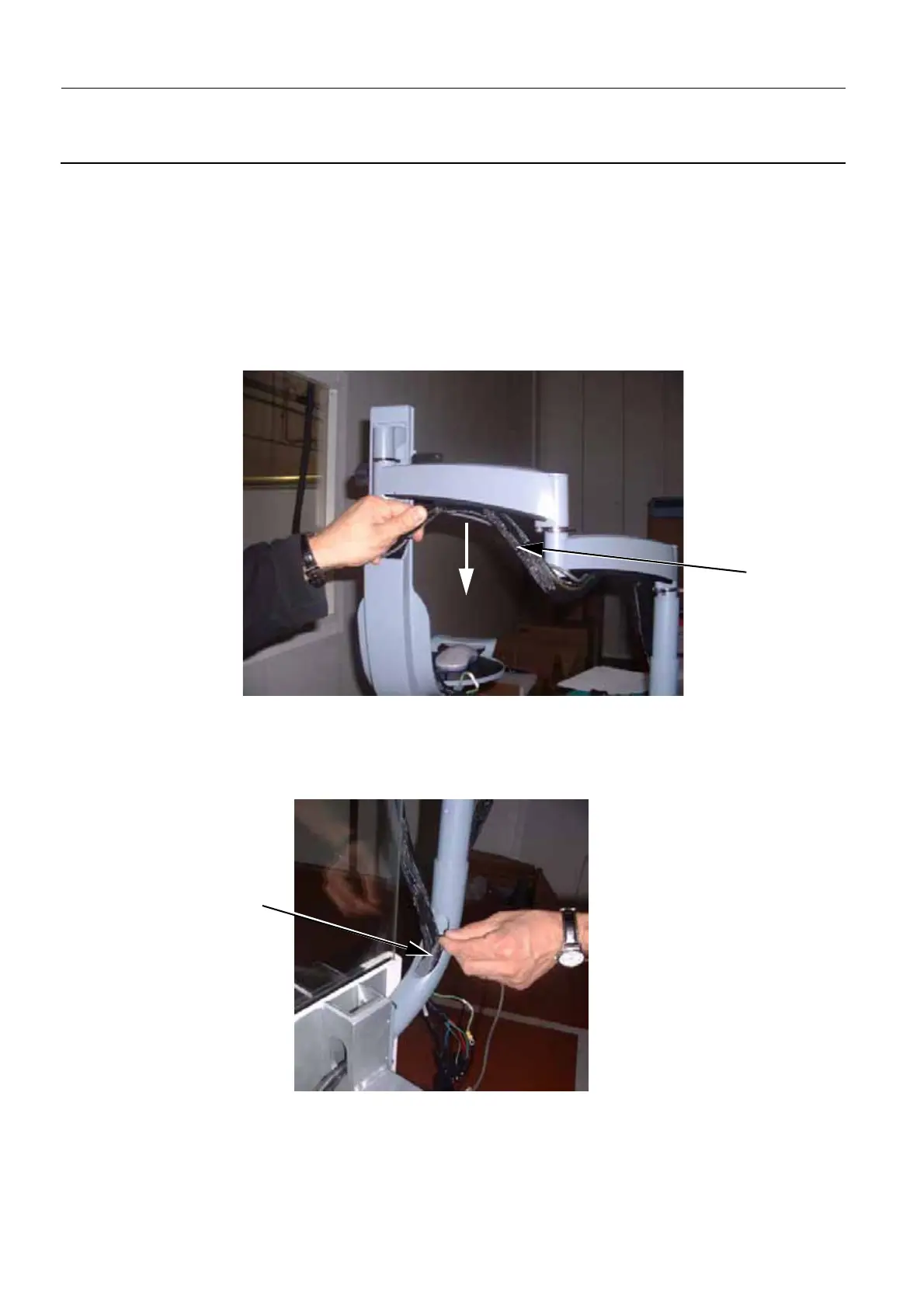

4. Carefully extract the harness (1) from the rotative arm.
5. Cut the cable ties from the monitor harness to free the mouse cable.
6. Disconnect the mouse cable from the ADS computer.
7. Extract the mouse cable from the opening of the rotative arm support (2) and from the mouse and
monitor support.
8. Remove the mouse.
