GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A312 - Mouse
Page no. 1419 Chapter 9
JC-DR-A-312.fm
7-2 Reassembly of Mouse on Ergotron B Arms
1. Place the new mouse on the mouse mat.

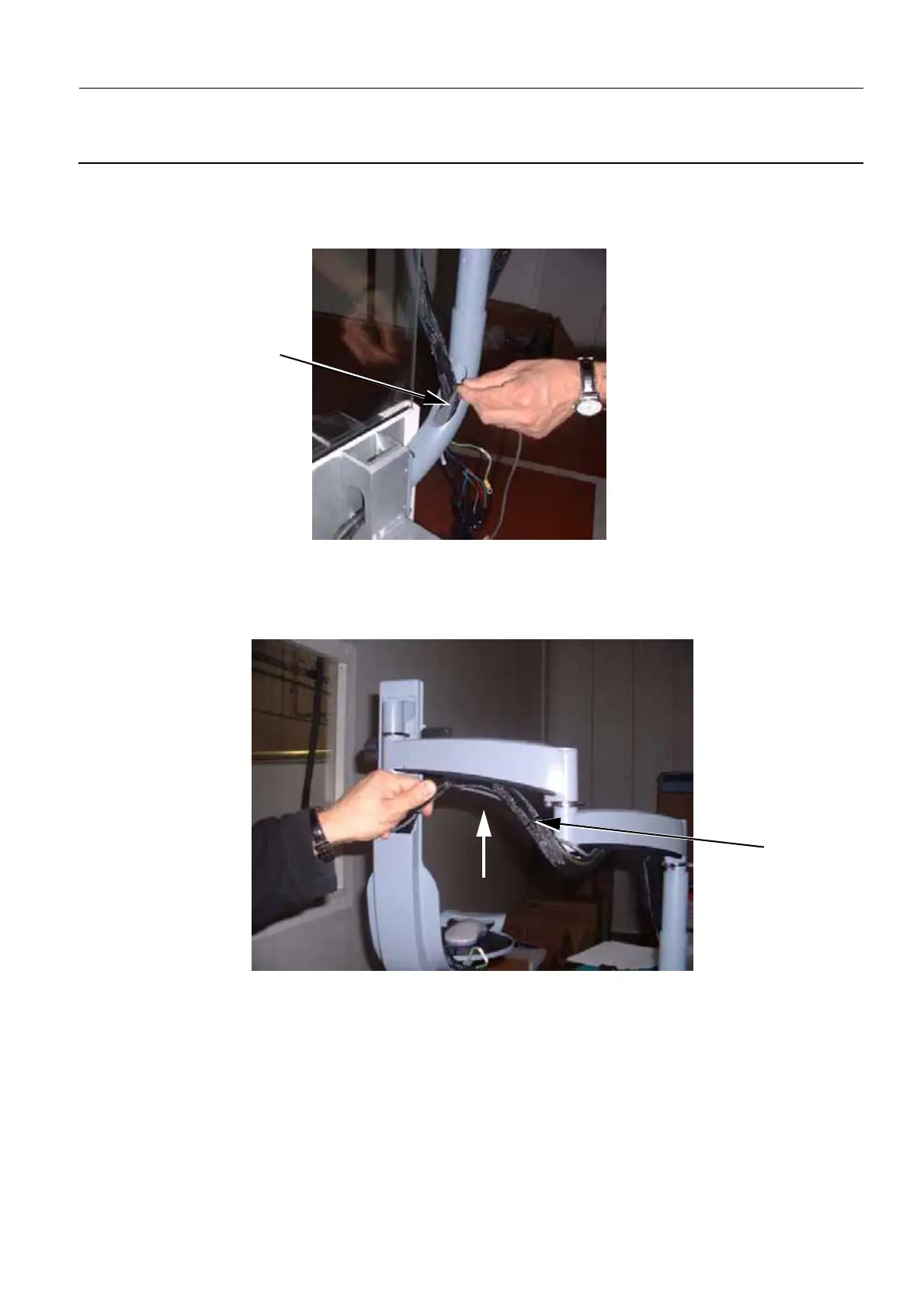

2. Introduce the mouse cable in the opening (1) of the rotative arm.
3. Connect the mouse to the ADS Compouter.
4. Route the mouse cable along the monitor harness. Secure the monitor harness and trackball cable
with black cable ties.
5. Reinsert the harness (2) into the rotative arm.
6. Reinstall the Omega Cover (see Job Card PHY A040 - Remove/Reinstall Control Station Covers on
page 503).
7. Reinstall the Top Cover (see Job Card PHY A040 - Remove/Reinstall Control Station Covers on
page 503).
8. Reinstall the X-ray Console.
1
2
