Chapter 9 Page no. 1420
JC-DR-A-312.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A312 - Mouse
8 PROCEDURE FOR SISFLE ARM
8-1 Disassembly of Mouse on Sisfle Arm
1. Unplug and remove the X-ray Console.
2. Remove the Top Cover (see Job Card PHY A040 - Remove/Reinstall Control Station Covers on page
503).
3. Remove the Omega Cover (see Job Card PHY A040 - Remove/Reinstall Control Station Covers on
page 503).

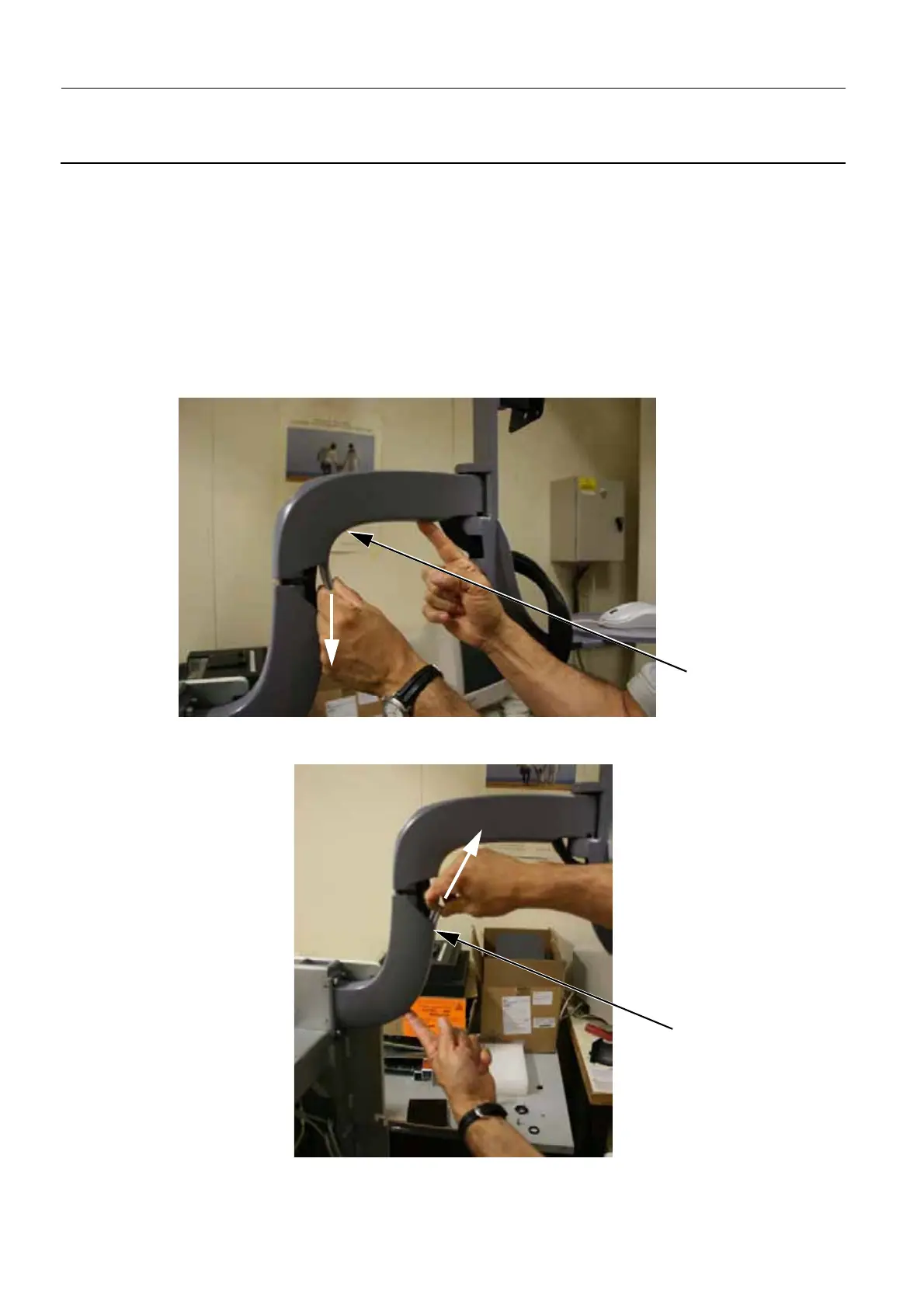

4. Carefully pull on the upper silicone mask (1) to remove it from the rotative arm. Store the upper sili-
cone mask in a clean place.
5. Carefully pull on the lower silicone mask (2) to remove it from the rotative arm support. Store the
lower silicone mask in a clean place.
