GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A314 - External CD-RW Unit
Page no. 1441 Chapter 9
JC-DR-A-314.fm

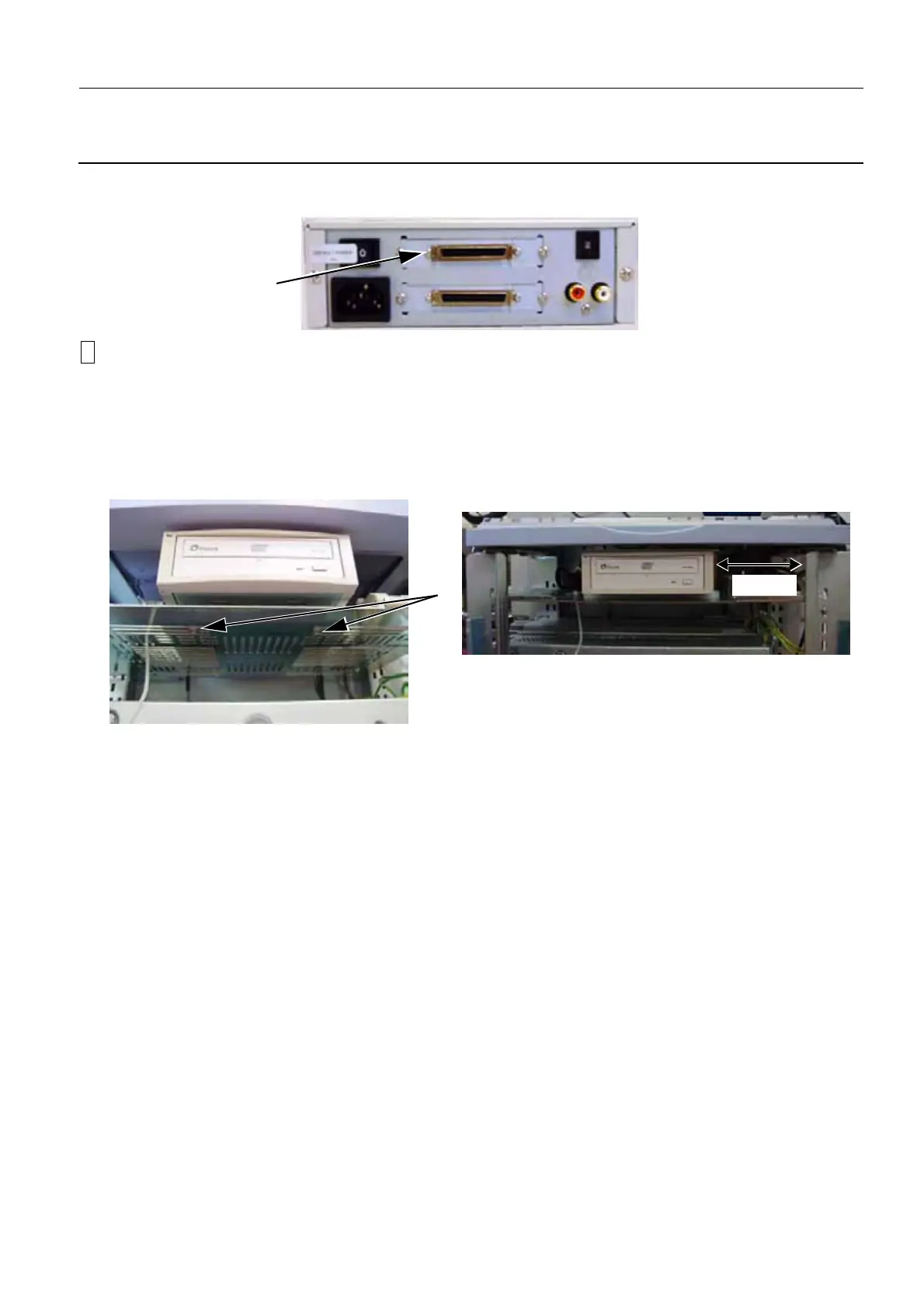

8. Connect the power cable and SCSI cable to the back panel of the new CD-RW unit. The SCSI cable
must be connected to the top SCSI connector (3).
!
Notice:
Be careful not to pinch or damage cables.
9. Carefully slide the housing unit that accommodates the new CD-RW unit back into the Control Sta-
tion. Fit, but do not tighten, the two screws and washers (4) under the CD-RW unit (3 mm allen
wrench). The screws should be placed in the second from from the front of the Control Station frame.
Position the CD-RW unit centrally. The right edge of the CD-RW unit should be approximately
12.5 cm from the right lateral bar of the Control Station frame.
10. Temporarily mount the top cover, then center the CD-RW unit’s tray with respect to the cover aper-
ture. It is possible and accepted that the width of the CD-RW unit exceeds the width of the opening in
the top cover. However, there should be no gap between the CD-RW and the top cover.
11. Once you have aligned the top cover and the CD-RW unit, remove the top cover and tighen the
screws and washers (4) so that housing accommodating the CD-RW unit is secured to the Control
Station frame.
12. Replace the Control Station top cover (see Job Card PHY A040 - Remove/Reinstall Control Station
Covers on page 503).
7-3 Verification of installation
1. Power up the Senographe system and insert a blank CD-ROM in the new CD-RW unit.
2. From the Browser,click the CD-R icon and select Query in the drop-down menu.
3. The blank CD-ROM should be recognised by the Query. If the blank CD-ROM is not recognized,
check connections, and restart the AWS.
3
4
12.5 cm
