Job Card D/R A317 - Radiation Screen

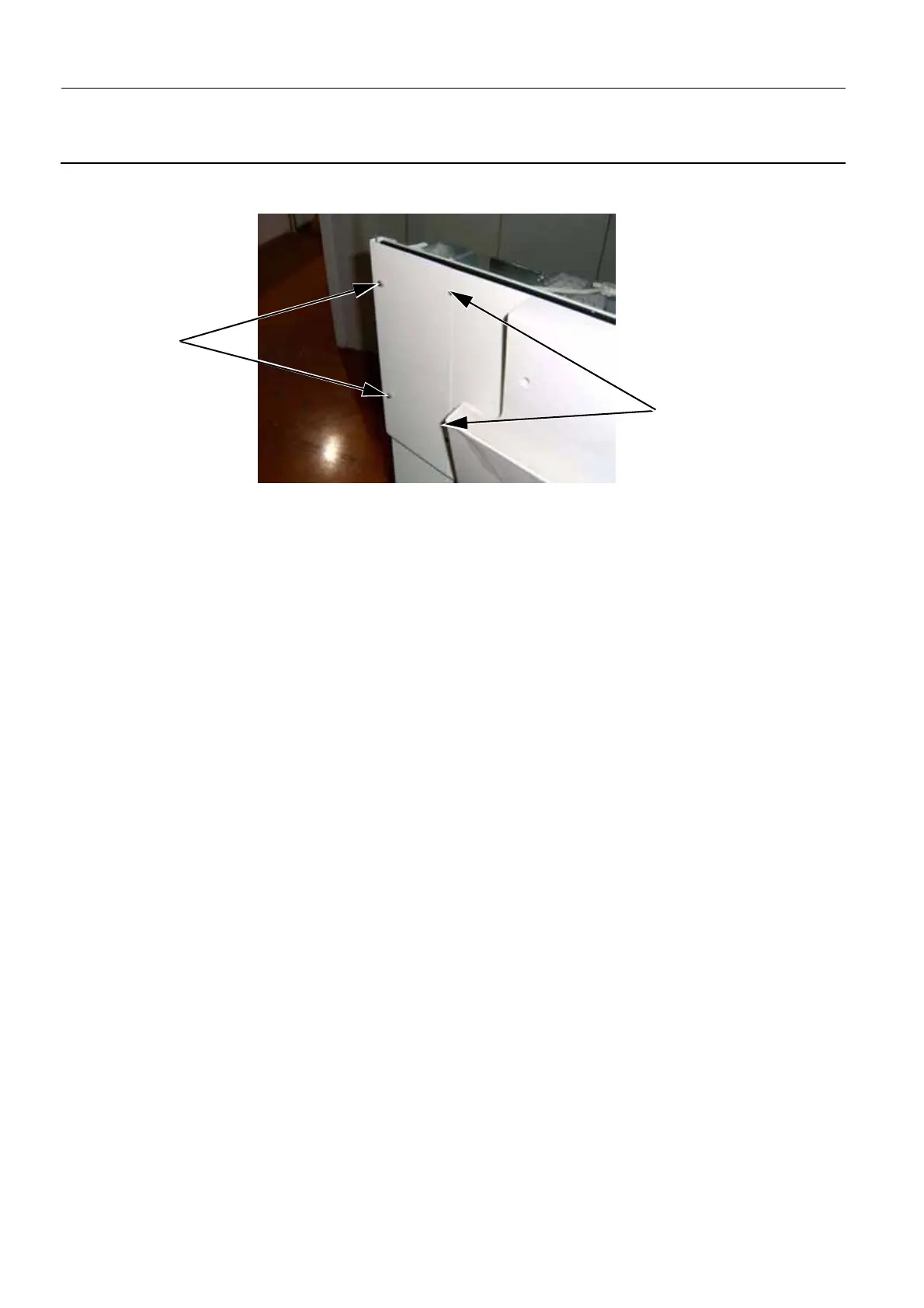

can be removed. To do this, remove the two screws (5) and loosen the two screws (4).
4. Remove the edge pinch and pinch plate.
5. Loosen the two screws (4) on the opposite edge pinch.
6. Slide out the radiation screen.
