GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A317 - Radiation Screen
Page no. 1465 Chapter 9
JC-DR-A-317.fm
7-2 Reassembly

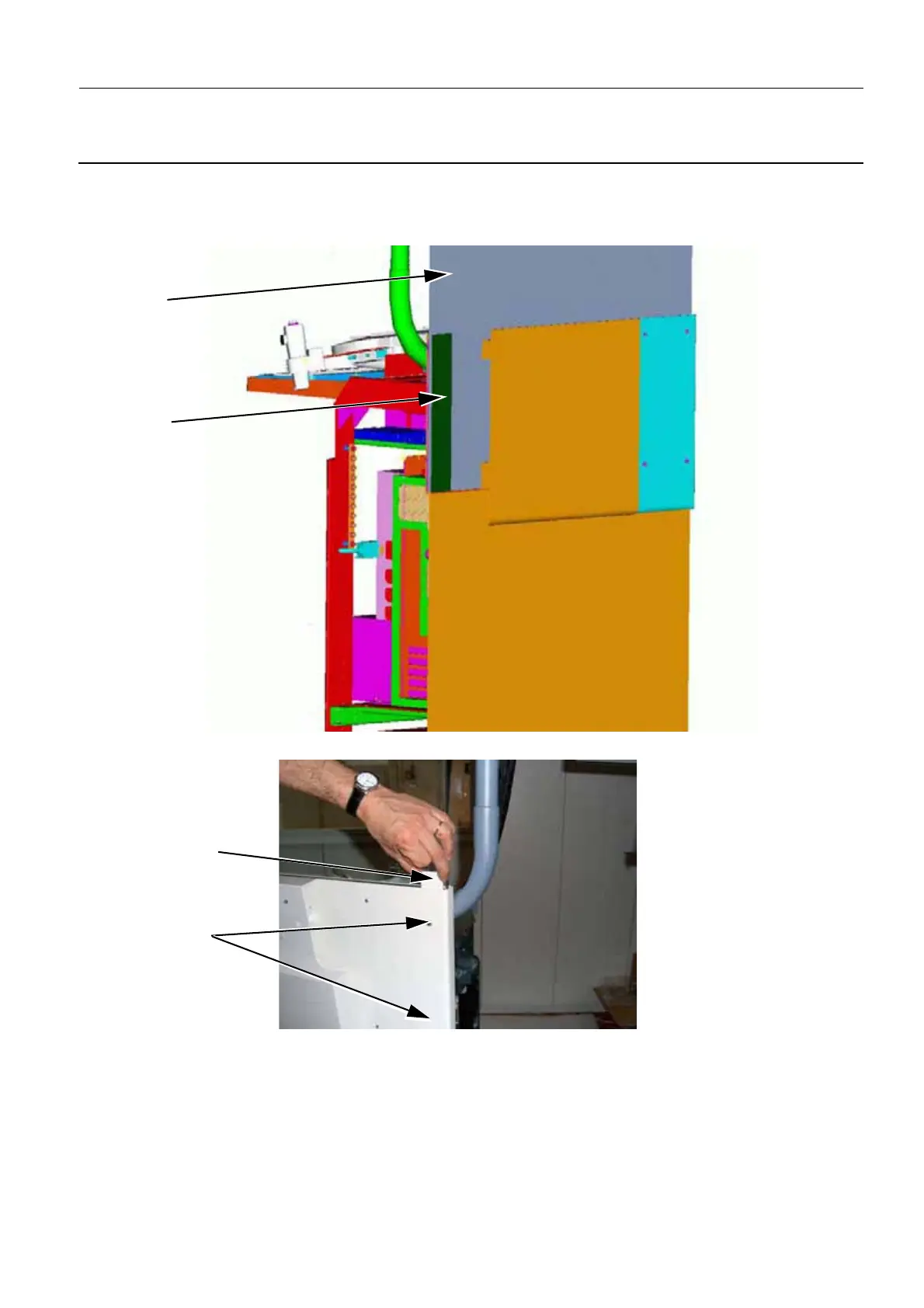

1. Carefully put the new radiation screen (1) in place. The vertical felt bands (2) must be located
towards the back of the Control Station.
2. Carefully introduce one pinch plate (3) between the edge pinch and the radiation screen.
3. Tighten with moderation the two screws (4).
1
2
4
3
