Job Card D/R A318 - LCD Monitor
7-1 18" and 19" Monitors
For the V2/V3 Control Stations, two types of Rotative Arm Sets exist, as follows:
• Ergotron B - contains one rotative arm support and two extension (rotative) arms
• Sisfle - contains one rotative arm support and one extension (rotative) arm
For the V4 Control Stations, only the Sisfle arm exists.
When appropriate, the steps below show images for both arms.
7-1-1 Disassembly - 18" and 19" Monitors

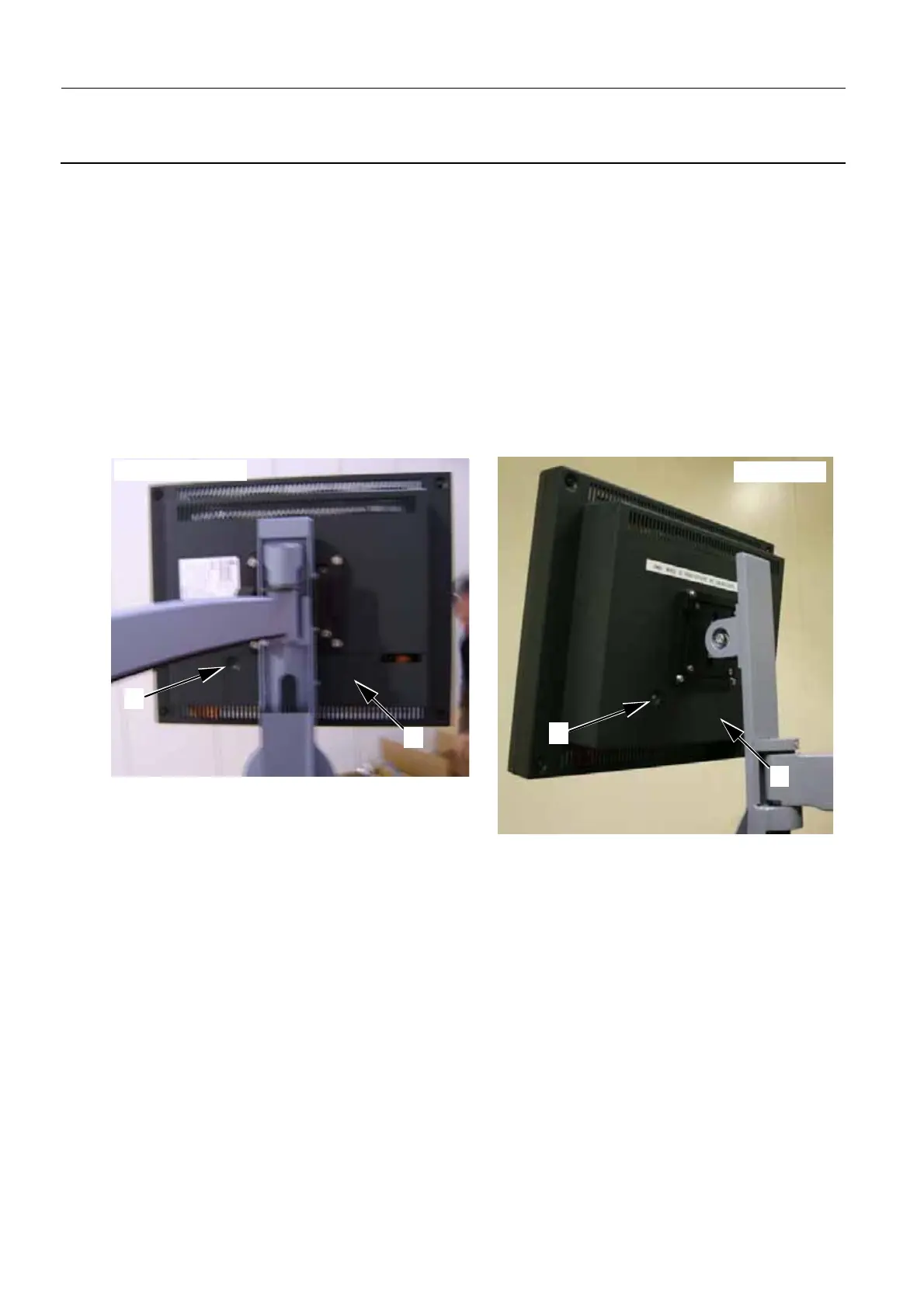

1. If necessary, cut the cable tie that secures the monitor harness to the back of the LCD monitor.
2. Unscrew the screw (1) (screwdriver) which secures the monitor cable protecting plate (2) and remove
the cable protecting plate.
3. Disconnect the power supply cable (3) from the monitor.
4. Remove the screw securing the power supply cable clamp (4) (screwdriver) and remove the power
supply cable.
5. Disconnect the video connection as follows:
• On V2 Control Stations, disconnect the five BNC cables and ensure that the BNC T Adapter and
1
2
2
1
Sisfle Arm
Ergotron B Arm
