GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A318 - LCD Monitor
Page no. 1473 Chapter 9
JC-DR-A-318.fm
75 Ohm BNC Terminator remain connected to the black cable.

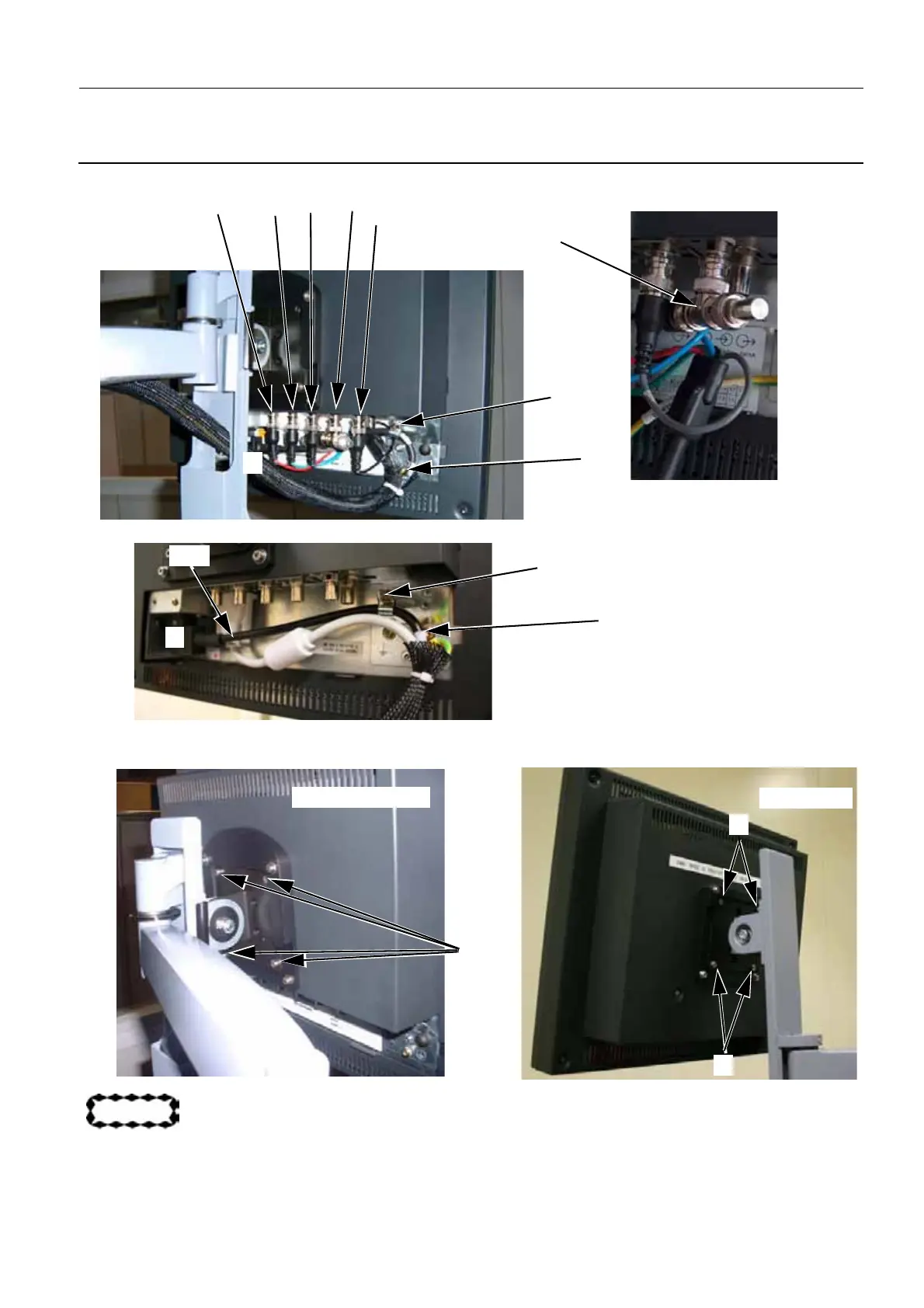

• On V3/V4 Control Stations, connect the DVI cable.
6. Disconnect the ground cable (5) (screwdriver).
7. Remove the four inner screws (6) securing the monitor (3 mm allen wrench).
CAUTION
Do not remove the four external screws.
8. Carefully slide the monitor up the support to remove it from the rotative arm.
5
4
Red
Green
Blue
Grey
Black plus BNC T Adapter
and BNC Terminator
3
5
4
DVI
3
6
6
6
Sisfle Arm
Ergotron B Arm
