GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A318 - LCD Monitor
Page no. 1477 Chapter 9
JC-DR-A-318.fm

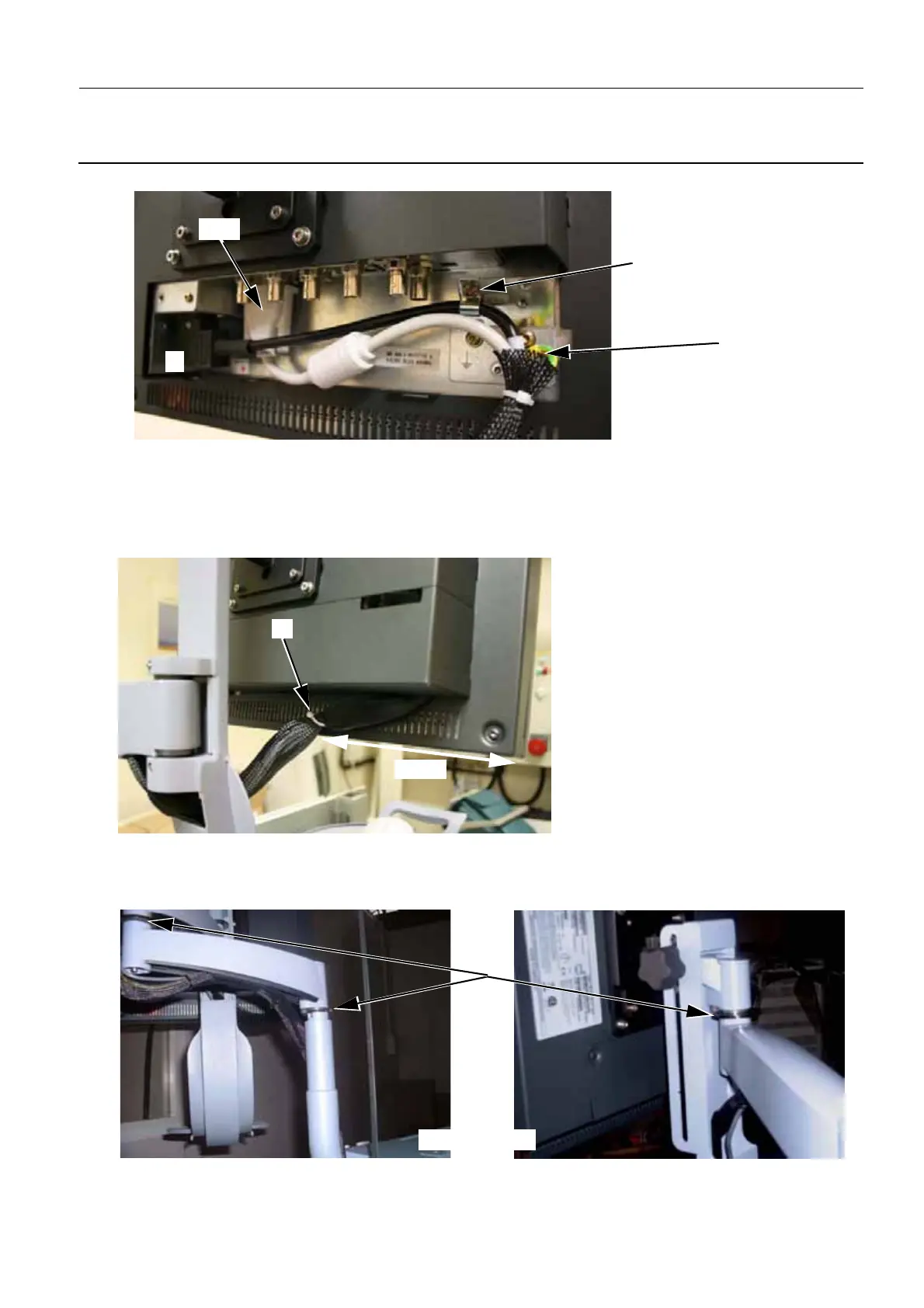

• On V3/V4 Control Stations, connect the DVI cable.
9. Connect the power supply cable (7) and secure it with a cable clamp (8).
10. Re-install the cable protecting plate (5) while ensuring that the cables pass through the exit without
being trapped, and tighten the securing screw (4) (screwdriver).
11. At 17 cm away from the right edge (looking from behind), secure the monitor harness to the back of
the LCD monitor with a black cable tie (9).
12. Perform a monitor collision check as follows:
• For the Ergotron B arm, check that the three stop brackets and three stop screws (10) are cor-
rectly positioned to avoid a collision with the radiation screen.
6
8
DVI
7
9
17 cm
10
Ergotron Arm
