GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A318 - LCD Monitor
Page no. 1481 Chapter 9
JC-DR-A-318.fm

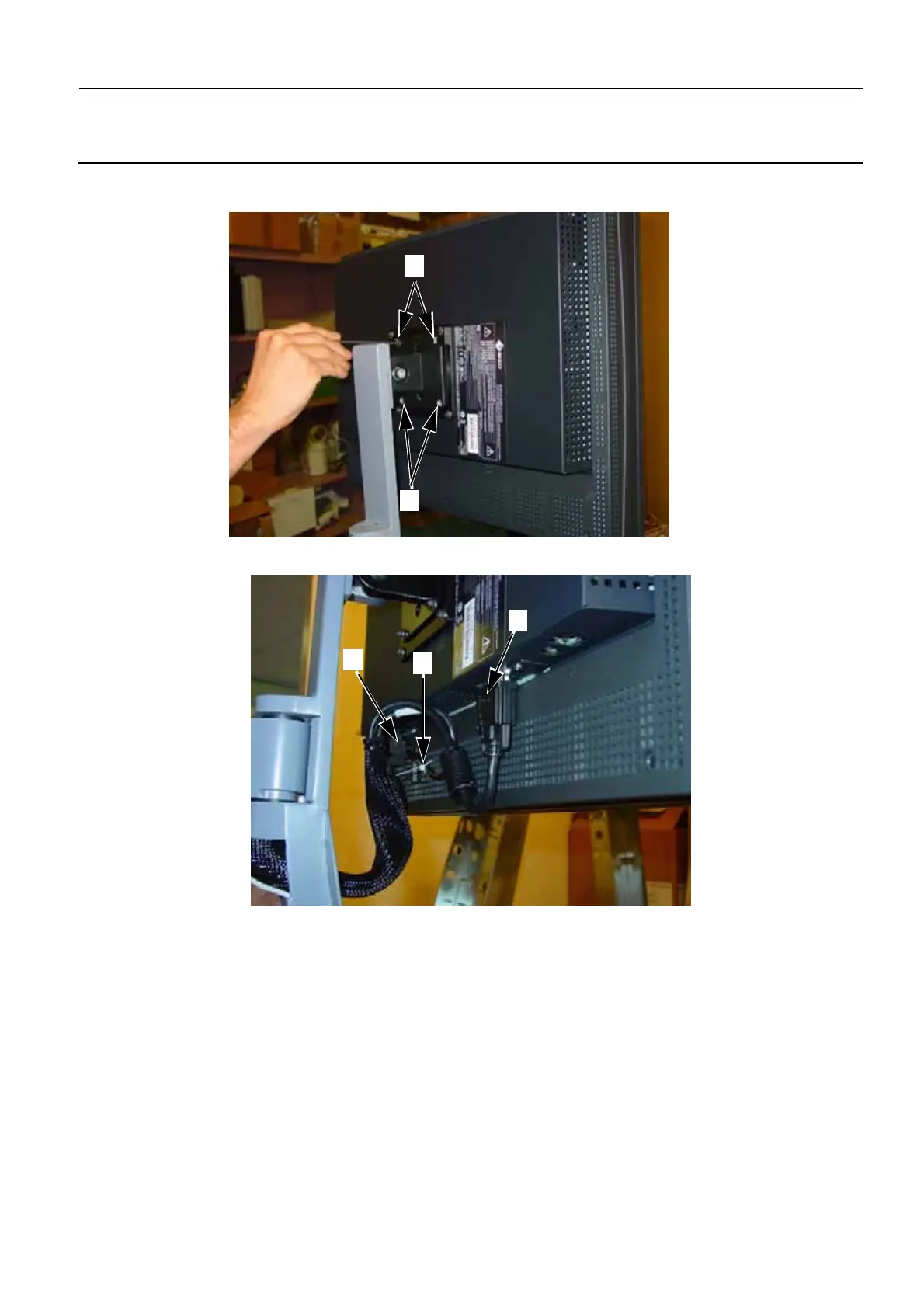

4. Fix the sliding pivot with the monitor using the four inner screws of 8 mm length (3) (3 mm allen
wrench).
5. Connect the DVI cable (4).
6. Connect the power supply cable (5) and secure it with a cable tie (6).
7. Perform a monitor collision check. Check that the stop bracket and stop bracket screw (7) is correctly
3
3
5
6
4
