Chapter 9 Page no. 1484
JC-DR-A-319.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A319 - Rotative Arm
6 PROCEDURE FOR ERGOTRON B ARM
6-1 Disassembly of Ergotron B Arm

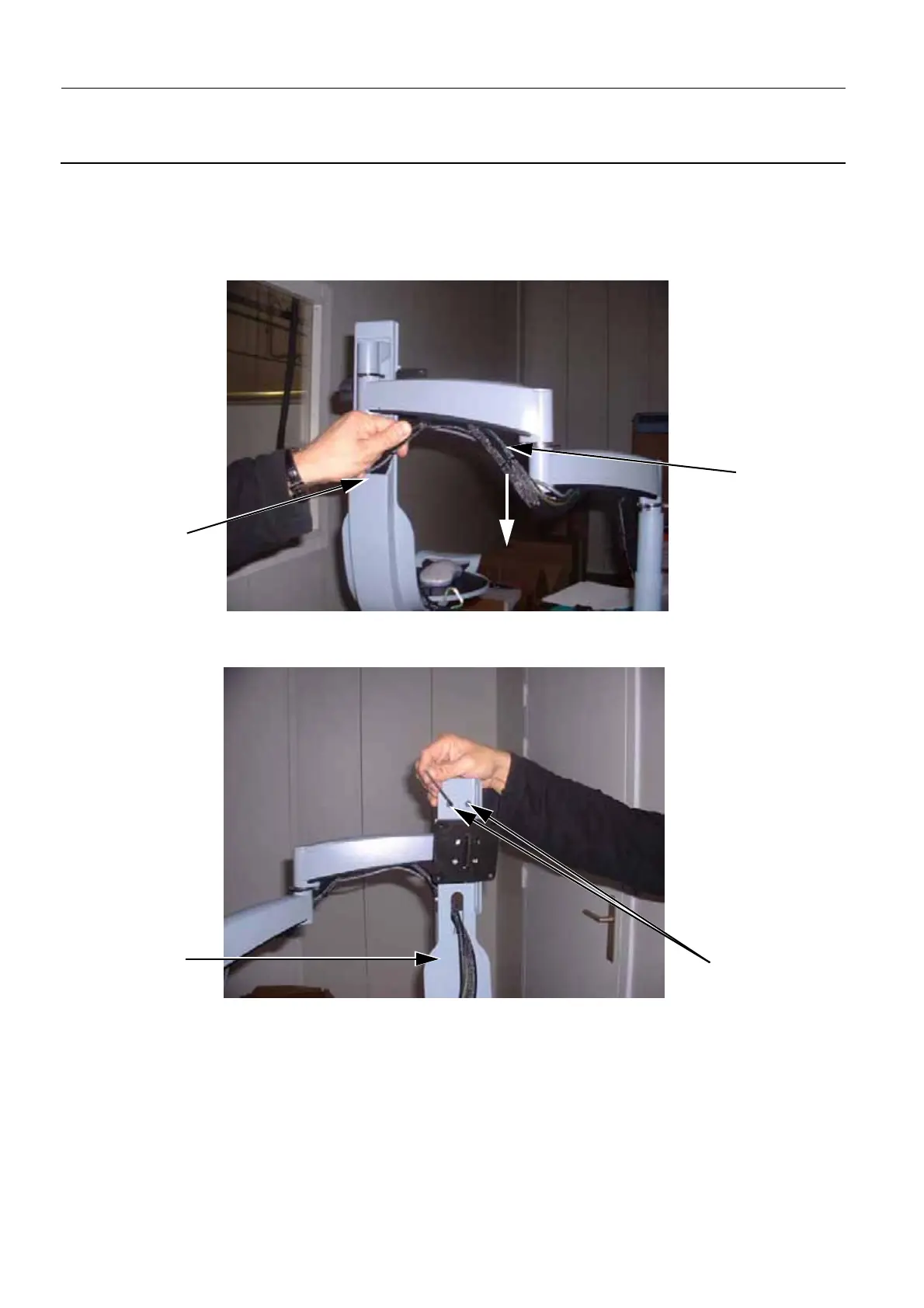

1. Carefully extract the harness (1) from the Rotative Arm and release them from the Monitor and
Mouse Support (2).
2. While holding the Monitor and Mouse Support (2), remove the two screws (3) securing it (allen
wrench 3/32'').
1
2
3
2
