Job Card D/R A319 - Rotative Arm
Page no. 1485 Chapter 9
JC-DR-A-319.fm

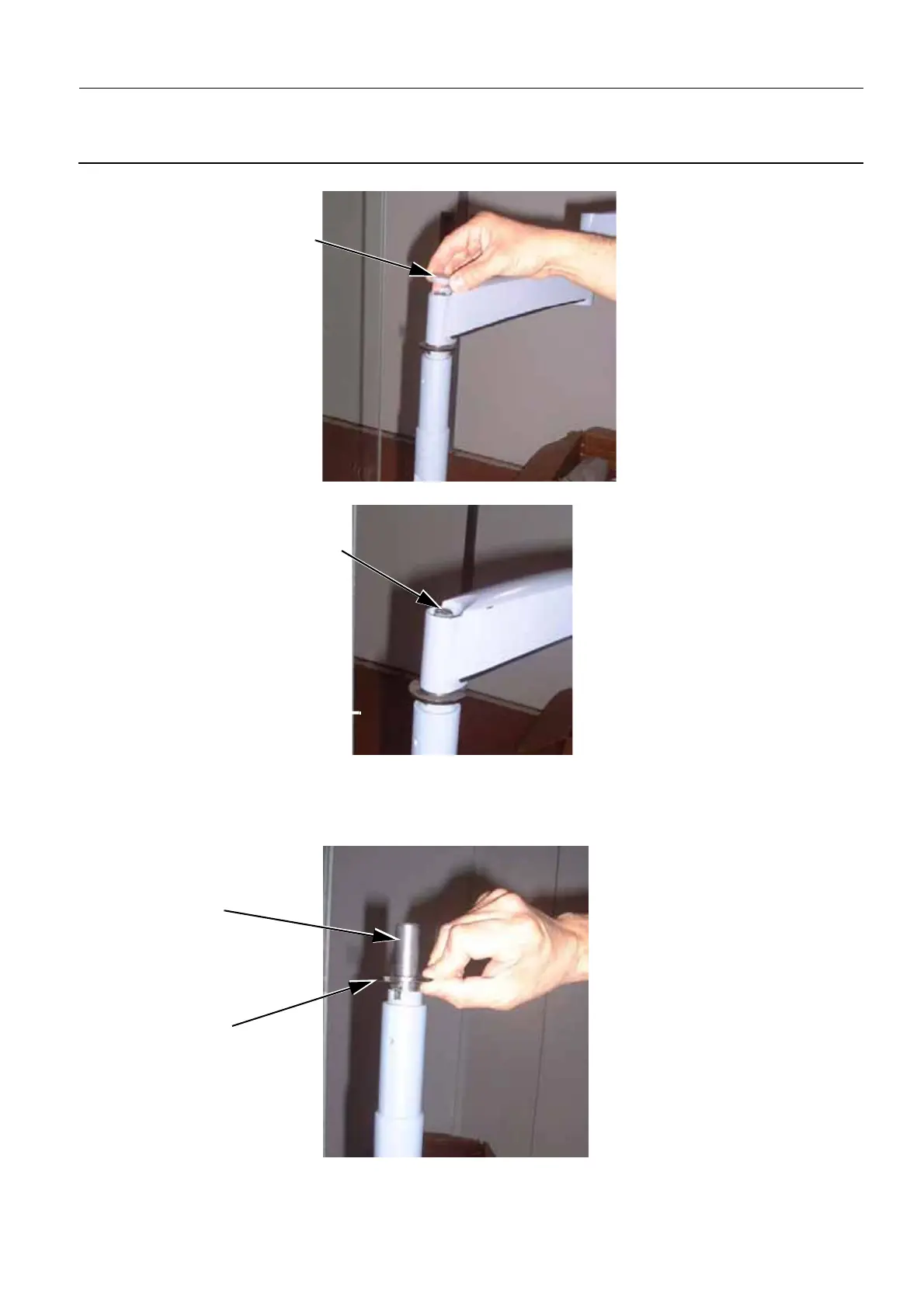

3. Remove the plastic blanking plug (3) from the corner of the rotative arm (rotative arm support side).
4. Unscrew the bolt (4) (ratchet wrench with 13 mm socket) and remove the rotative arm.
6-2 Reassembly of Ergotron B Arm
1. On the rotative arm support, check the presence of the axis (1) and stop bracket (2) (alignment tab is
positioned on the Control Station side).
3
4
2
1
