Job Card D/R A319 - Rotative Arm
2. Check the presence of the three stop screws (3) on the rotative arm.

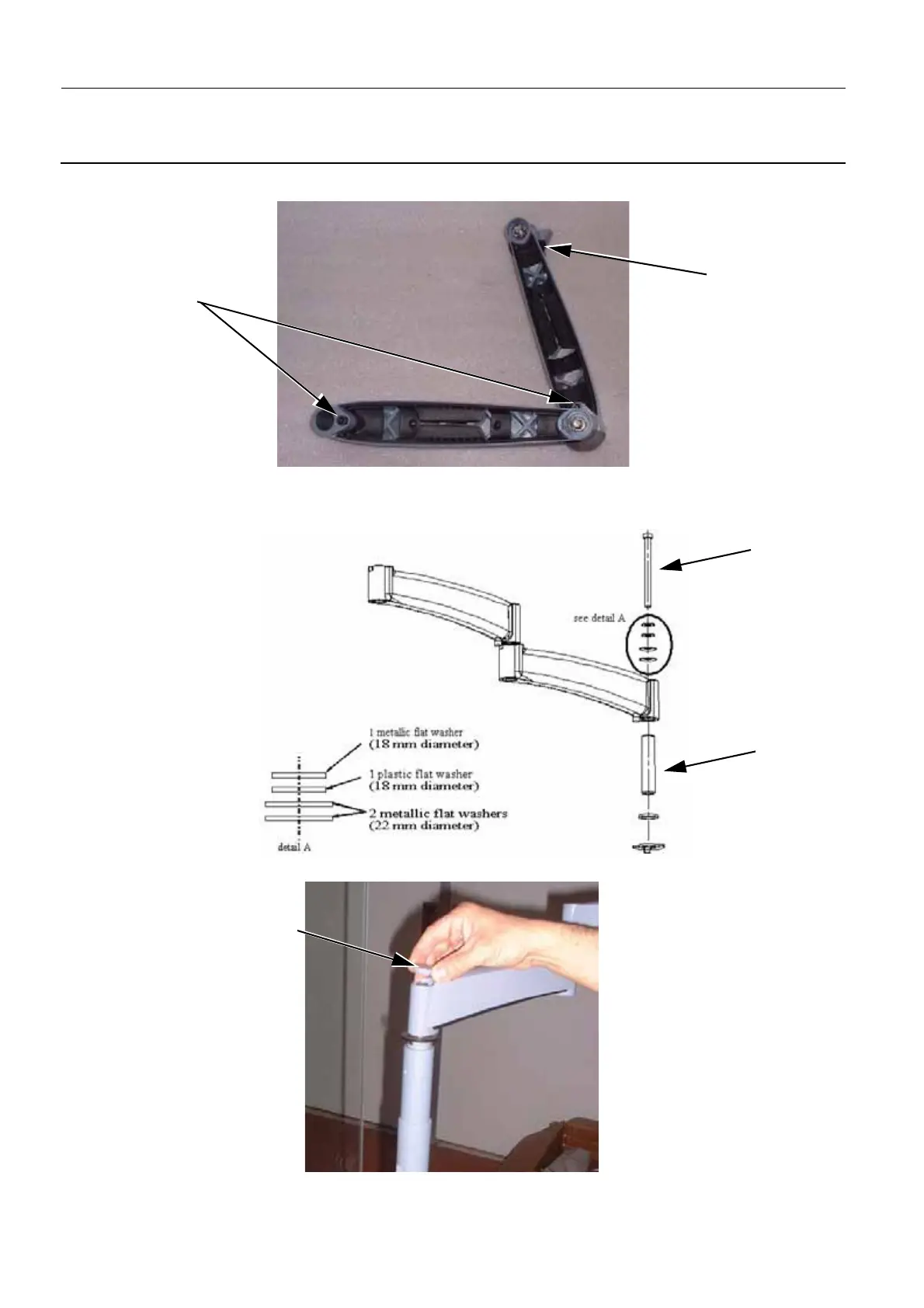

3. Attach the rotative arm to the axis (4). Secure the rotative arm with the bolt (5) (torque wrench with
13 mm socket, torque 6.5 N.m) and the four washers according to the following illustration.
4. Reinstall the plastic blanking plug (6) on the corner of the rotative arm.
3
3
4
5
6
