Job Card D/R A319 - Rotative Arm
Page no. 1497 Chapter 9
JC-DR-A-319.fm
e. Thread the ground cable through the opening of the rotative arm support.

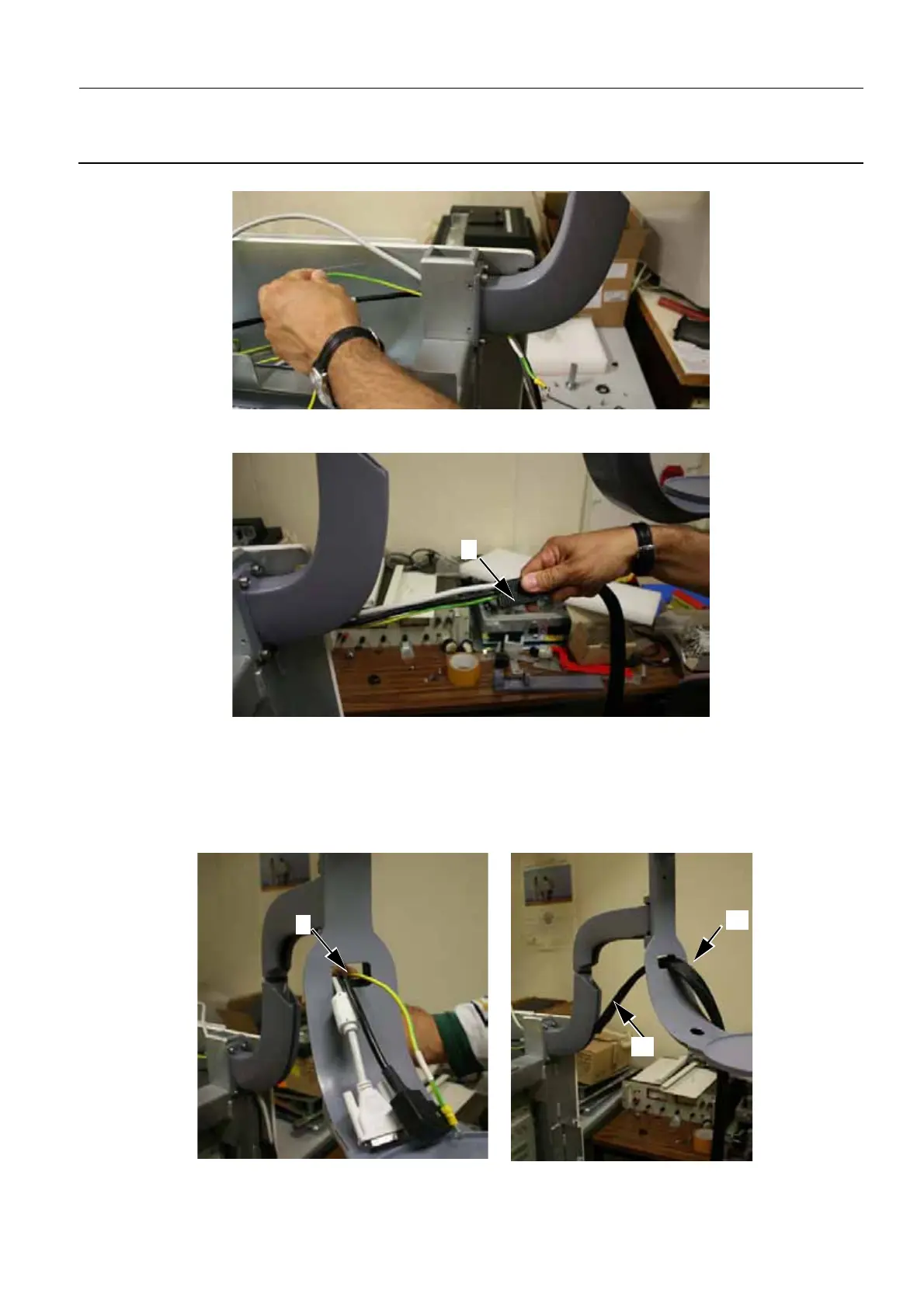

3. Thread the monitor cables (8) through the harness. Ensure that the monitor cables do not cross each
other, as shown below.
4. Put the harness through the opening of the monitor support (9). To do this, pull the harness back
from the monitor cables and insert the monitor cables through the opening of the monitor support in
the following order:
• Power cable
• DVI video cable (for V3/V4 Control Stations) or BNC video cables (for V2 Control Stations)
• Ground cable
8
9
10
10
