Chapter 9 Page no. 1498
JC-DR-A-319.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A319 - Rotative Arm

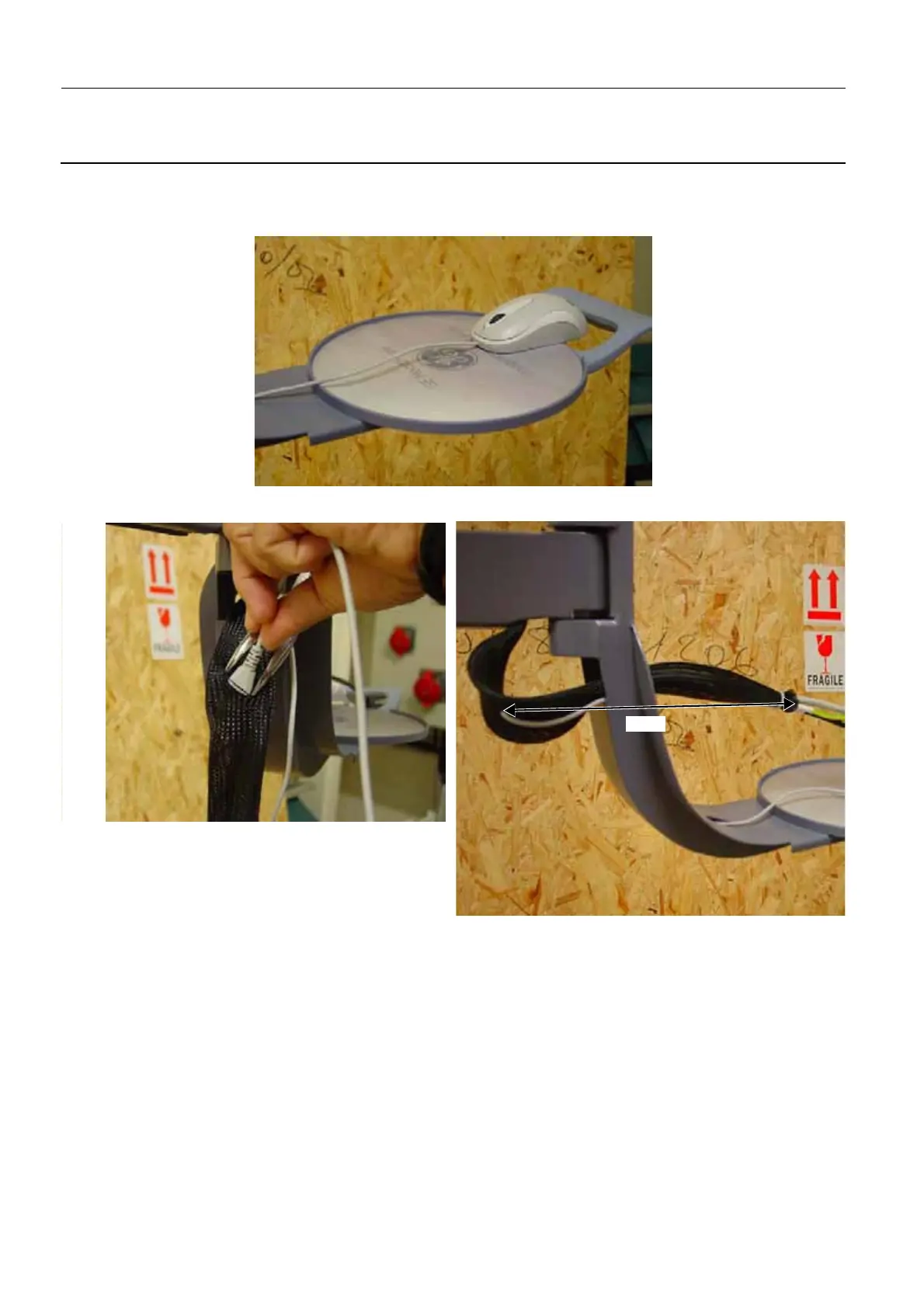

5. Distribute evenly (10) the harness over the monitor cables on both sides of the monitor support.
6. Place the mouse at the back of the mouse support (so that there is enough cable for use of the
mouse on the entire mouse support).
7. Use pointed nose pliers to create an opening in the harness at 27 cm from the end of the harness.
8. Route the mouse cable through the opening in the harness, so that it leaves the other end of the har-
ness. Then route the mouse cable through the rotative arm support entrance into the Control Station.
27 cm
To Next Page
