Job Card D/R A331 - UPS
7 PROCEDURE ON V3/V4 CONTROL STATIONS
7-1 Disassembly of the UPS on V3/V4 Control Stations

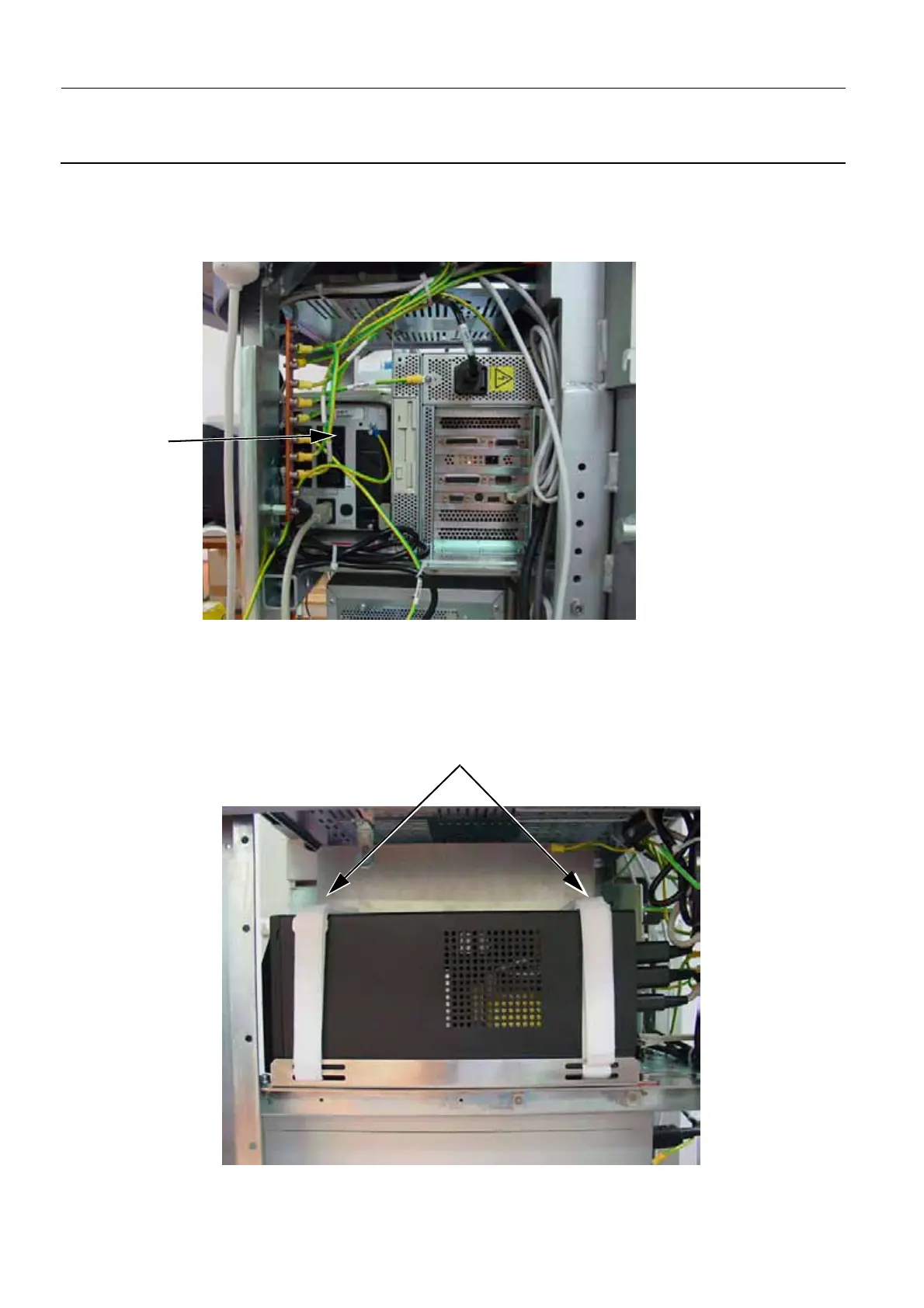

1. Locate the UPS unit (1) inside the Control Station.
2. Disconnect all cables from the UPS unit rear panel.
Note:
Note locations of disconnected cables.
3. Disconnect the Ground cable (cross-head screwdriver).
4. Open the velcro straps (2) securing the UPS to the Control Station.
1
2
