5. Remove the defective UPS unit from the Control Station by lifting it vertically from the framework and
pulling it towards you.
7-2 Reassembly of New UPS Unit on V3/V4 Control Stations

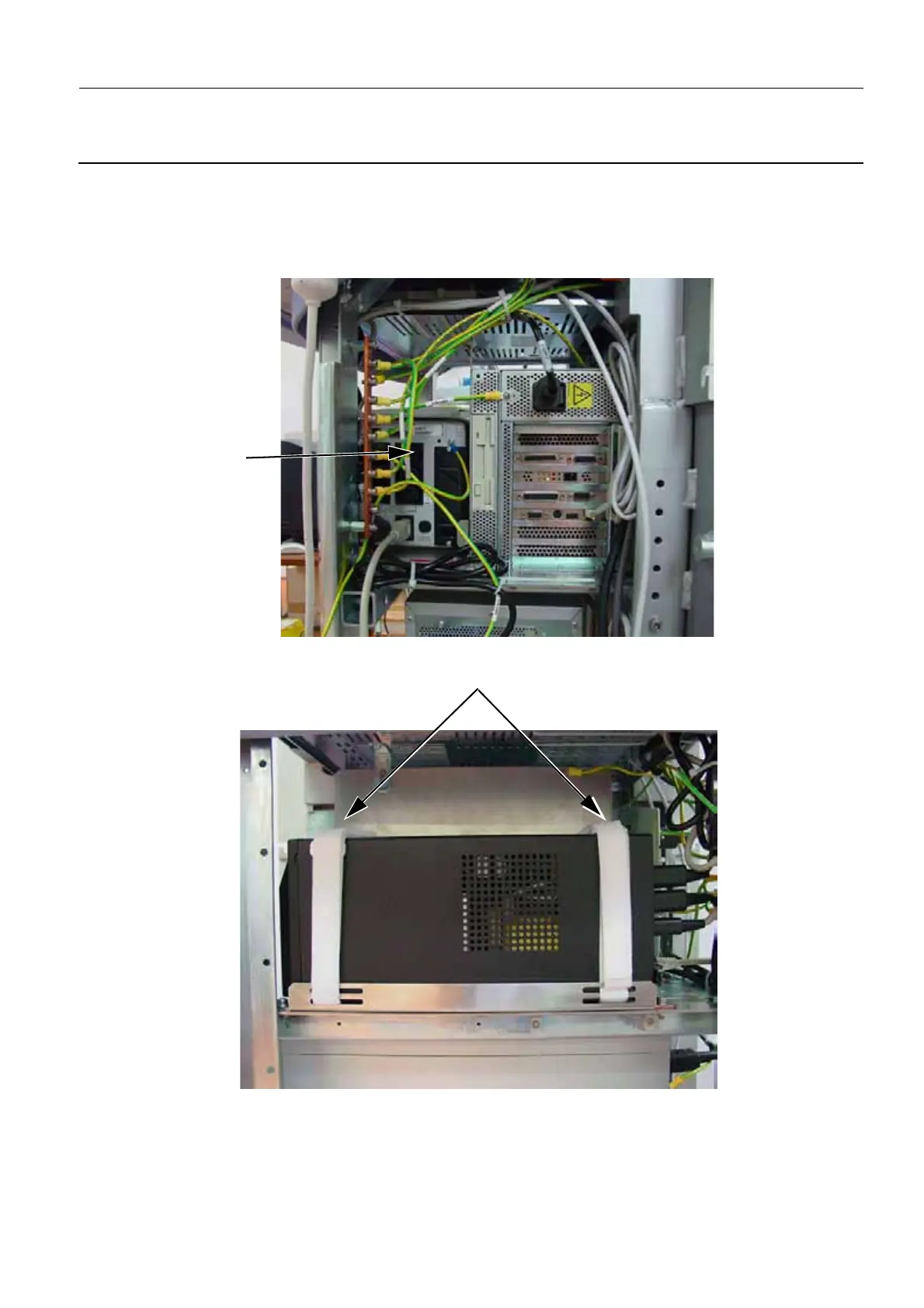

1. Put the new UPS unit (1) inside the Control Station.
2. Attach the velcro straps (2) to secure the UPS to the Control Station.
1
2
