Chapter 9 Page no. 1530
JC-DR-A-332.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A332 - UPS Battery Replacement

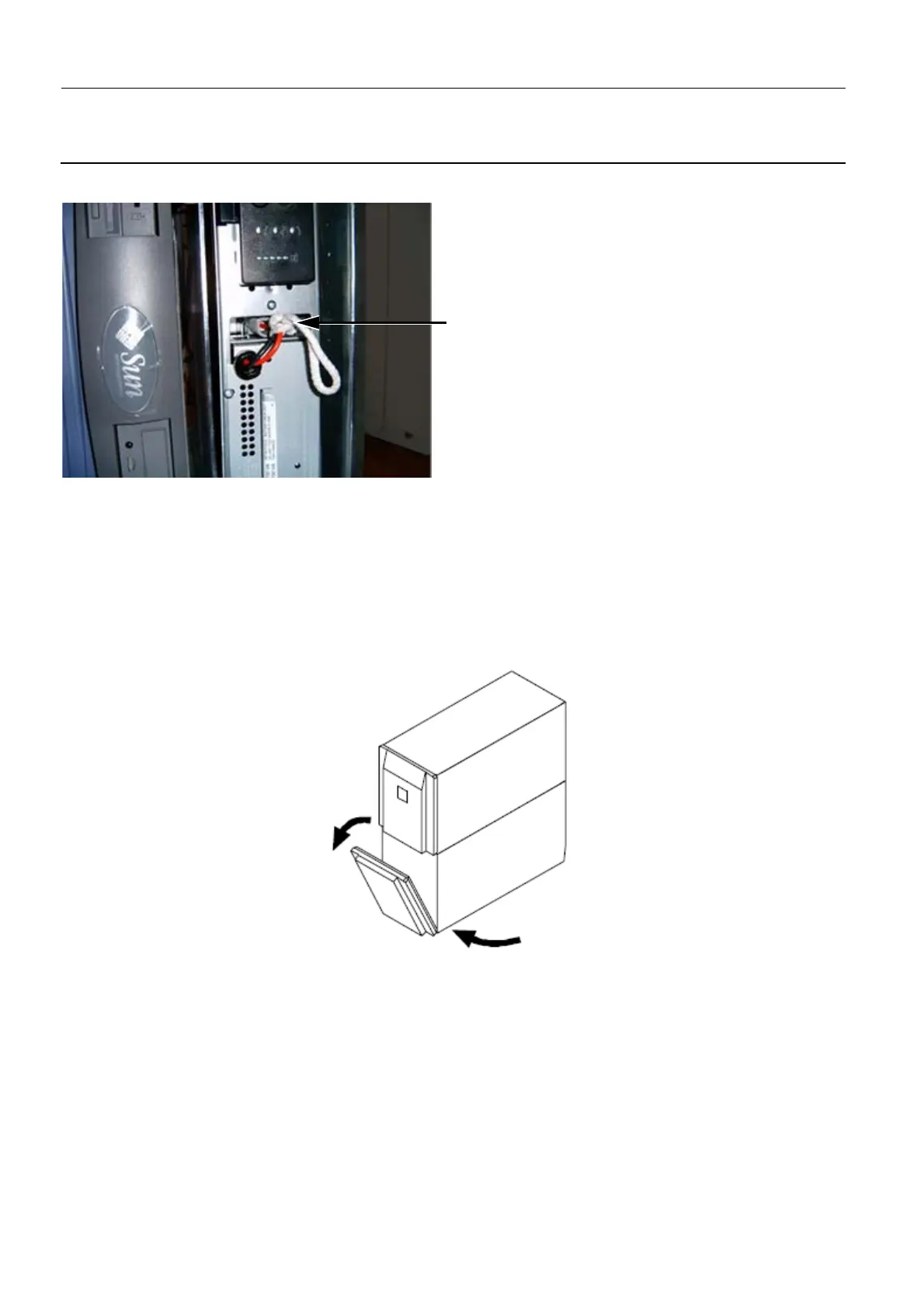

2. Unplug the battery connector (1), located on the rear panel.
Note:
Battery replacement is a safe procedure, isolated from electrical hazards. You may leave the UPS
and load on for the following procedure.
3. Grasp the top edge of the bottom front cover and tilt it out.
4. Unhook the bottom section of the front cover from the chassis and set it aside.
5. Use a flat-blade screwdriver or a coin to remove the two battery door screws and open the door.
6. Grip the wires for the front set of batteries and pull firmly to disconnect the connector from the bat-
tery compartment.
