GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A332 - UPS Battery Replacement
Page no. 1531 Chapter 9
JC-DR-A-332.fm

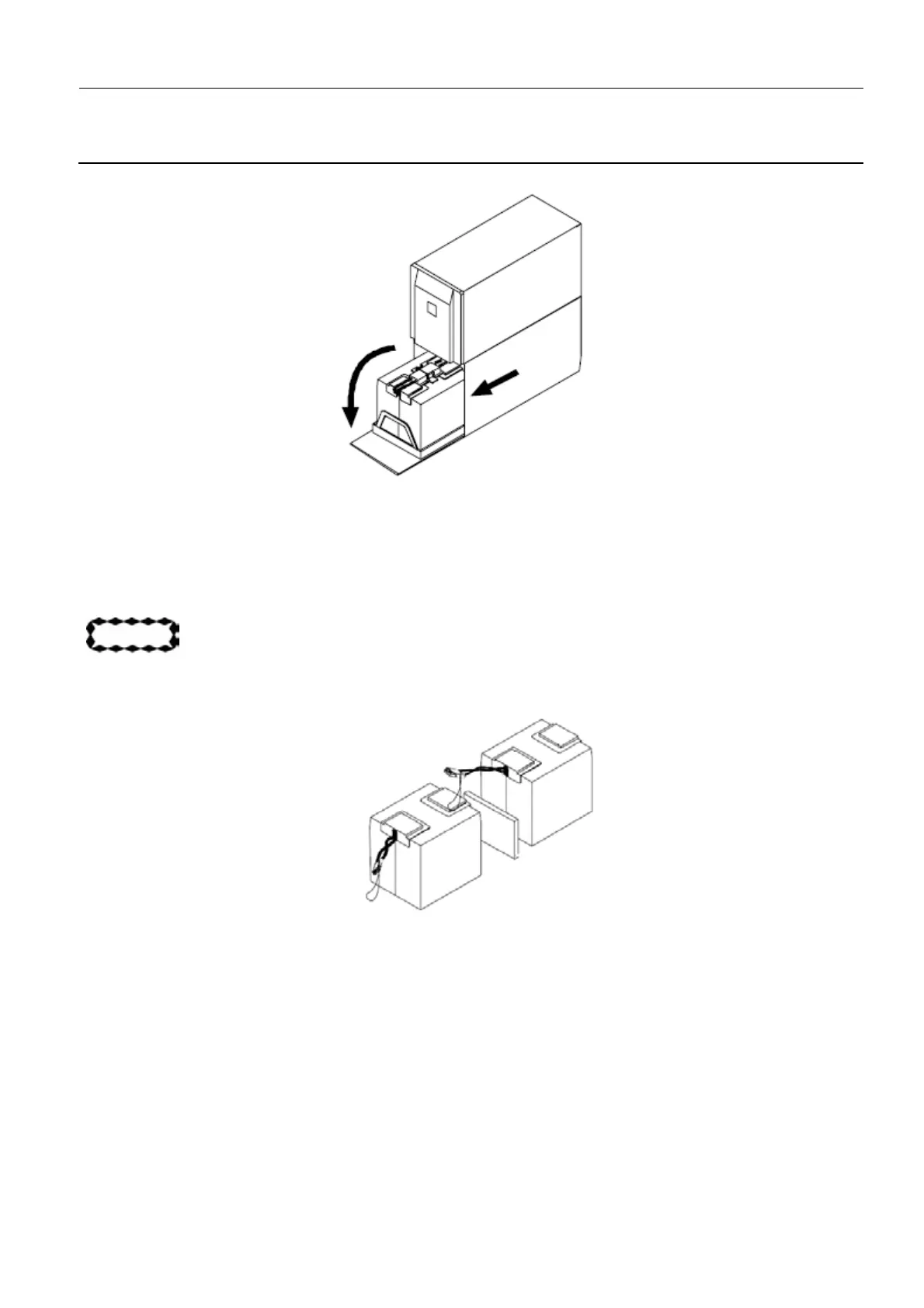

7. Pull the white cord on the front battery connector to remove the batteries.
8. Set aside the foam spacer located between the batteries.
9. Reach into the battery compartment and grasp the white cord on the other battery connector. Pull
firmly to disconnect the connector and remove the second set of batteries.
CAUTION
Be careful when removing the batteries since they are heavy. Batteries weigh 5.5 kg/12.1
pounds.
6-2 Reassembly of the New UPS Battery on a V1/V2 Control Station
1. Affix a paper label with the charging date on new batteries.
2. Slide the first set of new batteries into the unit. Hold the connector down below the top of the bat-
teries and towards the door ; otherwise the assembly does not fit.
3. Guide the connector over the top of the batteries and press firmly to connect it to the rear connec-
tor of the battery compartment.
4. Small sparks at the battery connectors are normal during connection.
5. Set the foam spacer against the rear batteries to prevent the wires from being pinched.
6. Slide in the second set of batteries, then guide the connector over the batteries and press firmly to
