Chapter 9 Page no. 1538
JC-DR-A-335.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A335 - AWS (U20) Motherboard Battery (V3 Control Stations only)
7. Slide the access panel approximately 1.5 cm toward the back of the workstation.
8. Tilt the top edge of the panel out, then lift the panel upward.
9. Carefully set the panel aside.
10. Gently lay the system on its right side on a stable, nonslip surface.

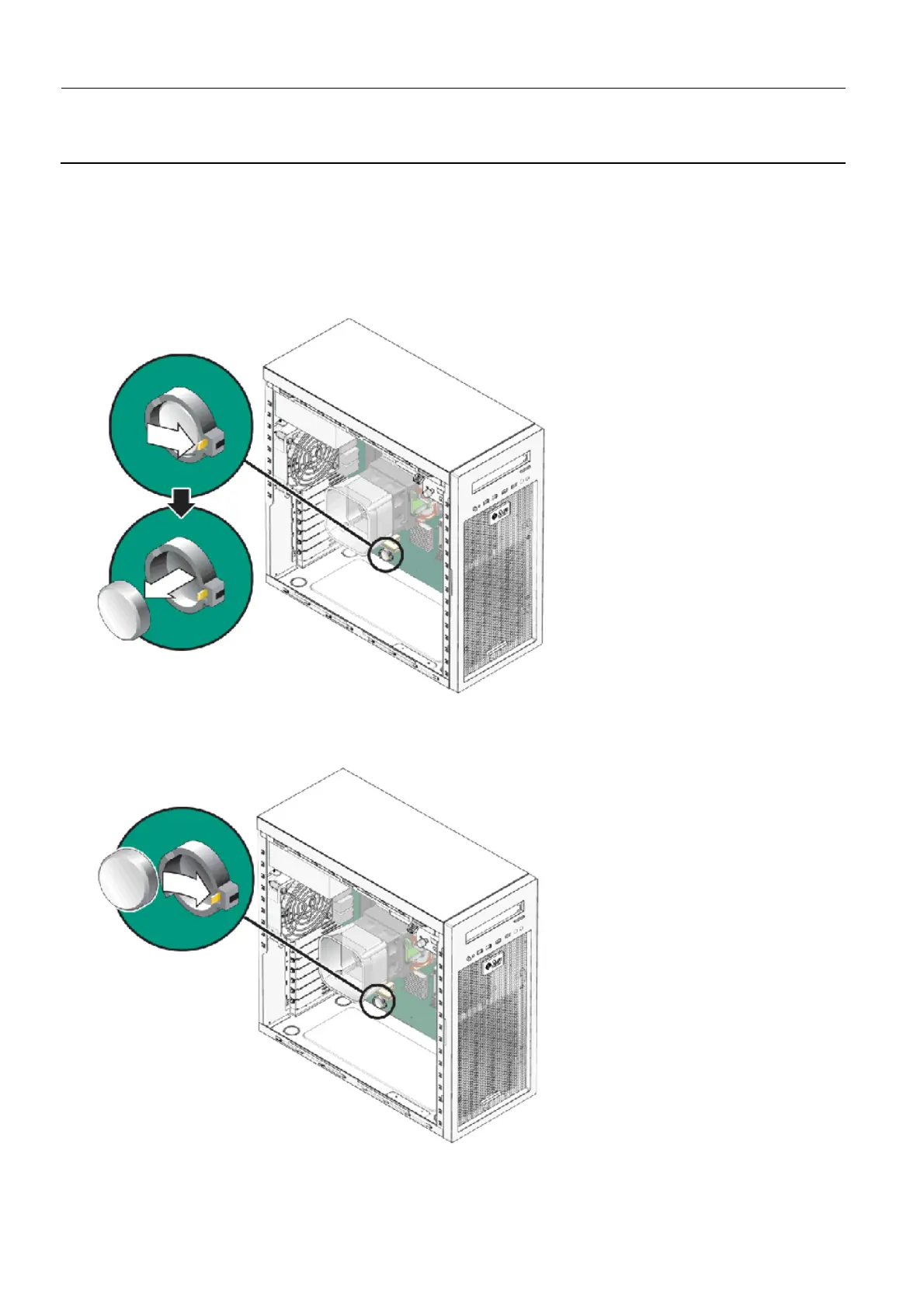

11. Pinch the battery latch together (squeezing away from the battery) until the battery pops out of the
motherboard socket.
12. Lift the battery to remove it.
13. Insert a new battery with the positive sign (+) facing up. Tilt the battery into the battery connector,
angling the battery under the battery latch. Slide the battery until it clicks into place.
14. Position the access panel so the lip on the inside bottom of the panel fits over the bottom chassis rail.
To Next Page
