Chapter 9 Page no. 1554
JC-DR-A-403.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A403 - Capacitor Box

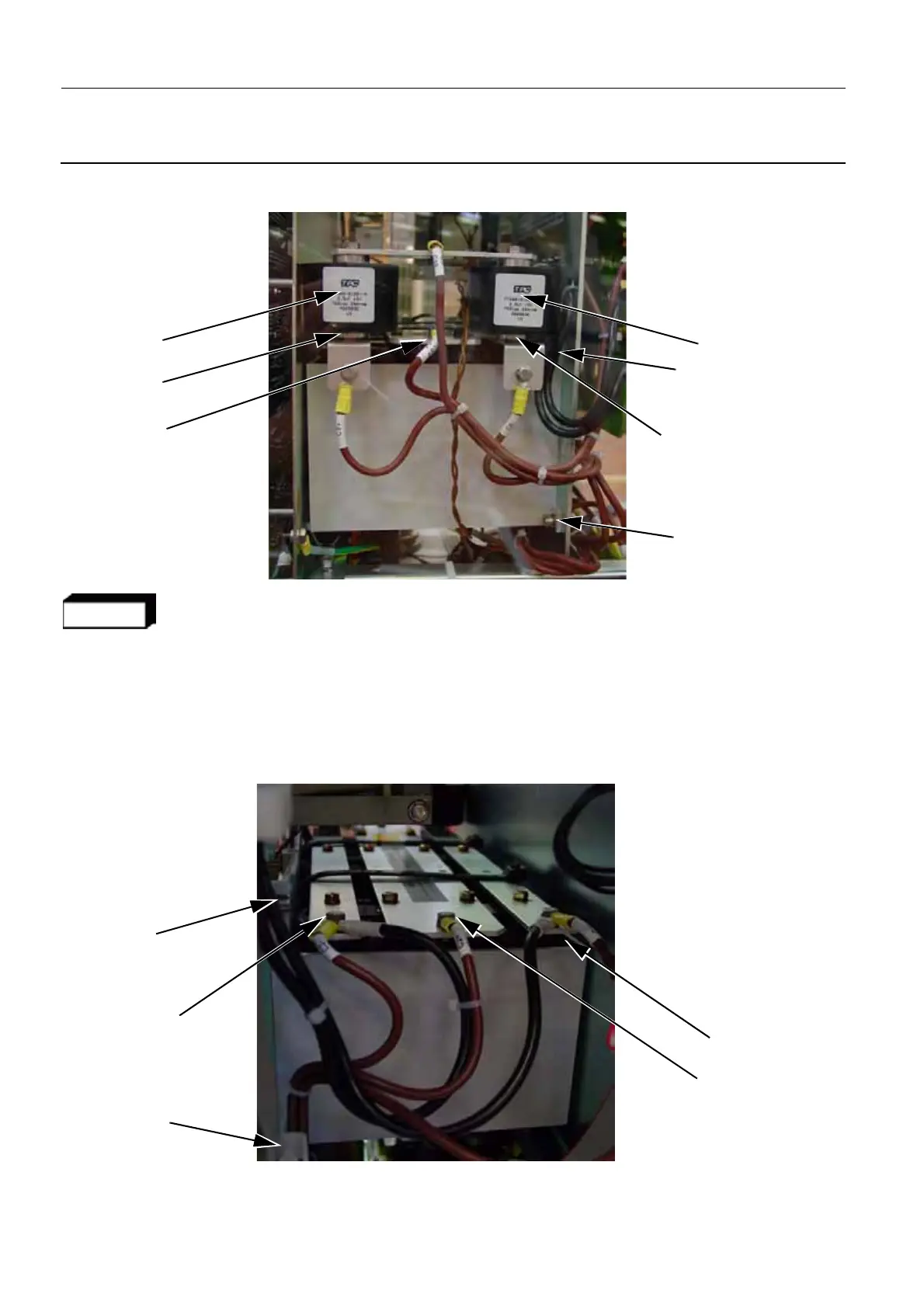

4. Using a voltmeter (rating 1000 V DC), check that there is no residual voltage between screws S1 and
S2 before proceeding.
WARNING
Residual voltage stored in the resonant capacitors can be dangerous. Ensure that the res-
onant capacitors are fully discharged before you handle them.
5. Remove screws S1 and S2 (10 mm open-ended wrench), and remove the two resonant capacitors,
RC1 and RC2, together with their upper plate.
6. Remove screw S3 (8 mm open-ended wrench) that connects the C8+/C7– cable to the capacitor box.
7. Remove the screws S4, S5, and S6 (8 mm open-ended wrench) that connect the C1+ cables,
C1–/C2+ cable and C2– cables to the capacitor box.
S2
S1
RC2
RC1
S3 (C8+/C7–)
S8
S10
S6 (C2–)
S5 (C1–/C2+)
S4 (C1+)
S9
S7
To Next Page
