Job Card D/R A403 - Capacitor Box

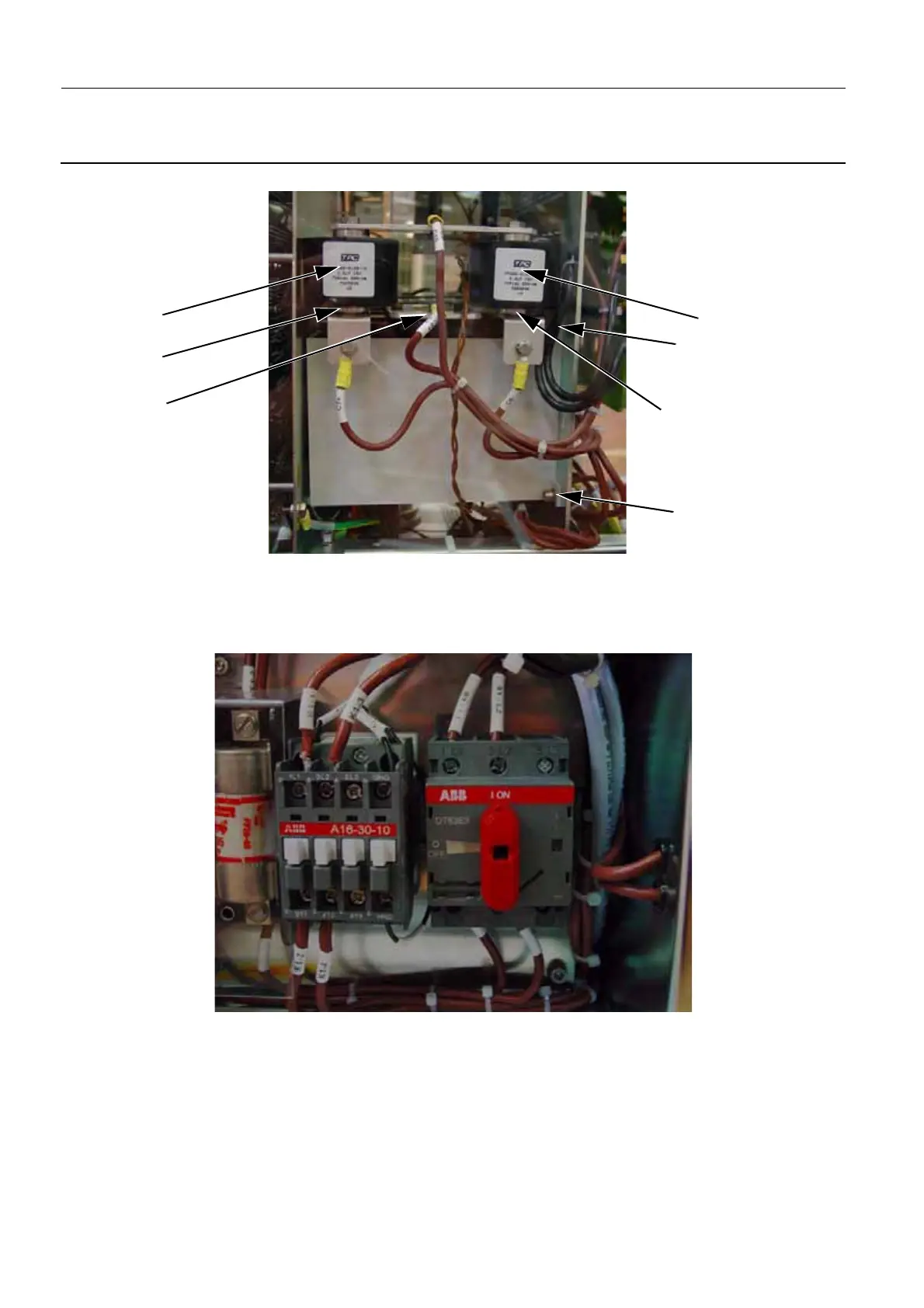

4. Connect the C8+/C7– cable to the new capacitor box with screw S3 (8 mm open-ended wrench).
5. Attach the two resonant capacitors, RC1 and RC2, together with their upper plate to the new capaci-
tor box using screws S1 and S2 (10 mm open-ended wrench).
6. Switch on the electrical power supply, both from the Mains Distribution Panel in the room and on the
rotary switch in the Generator cabinet (position I).
S2
S1
RC2
RC1
S3 (C8+/C7–)
S8
S10
