Chapter 9 Page no. 1578
JC-DR-A-407.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A407 - Generator Interface Board 400-PL2
S2 before proceeding.
WARNING
Residual voltage stored in the resonant capacitors can be dangerous. Ensure that the res-
onant capacitors are fully discharged before you handle the Generator Interface board.

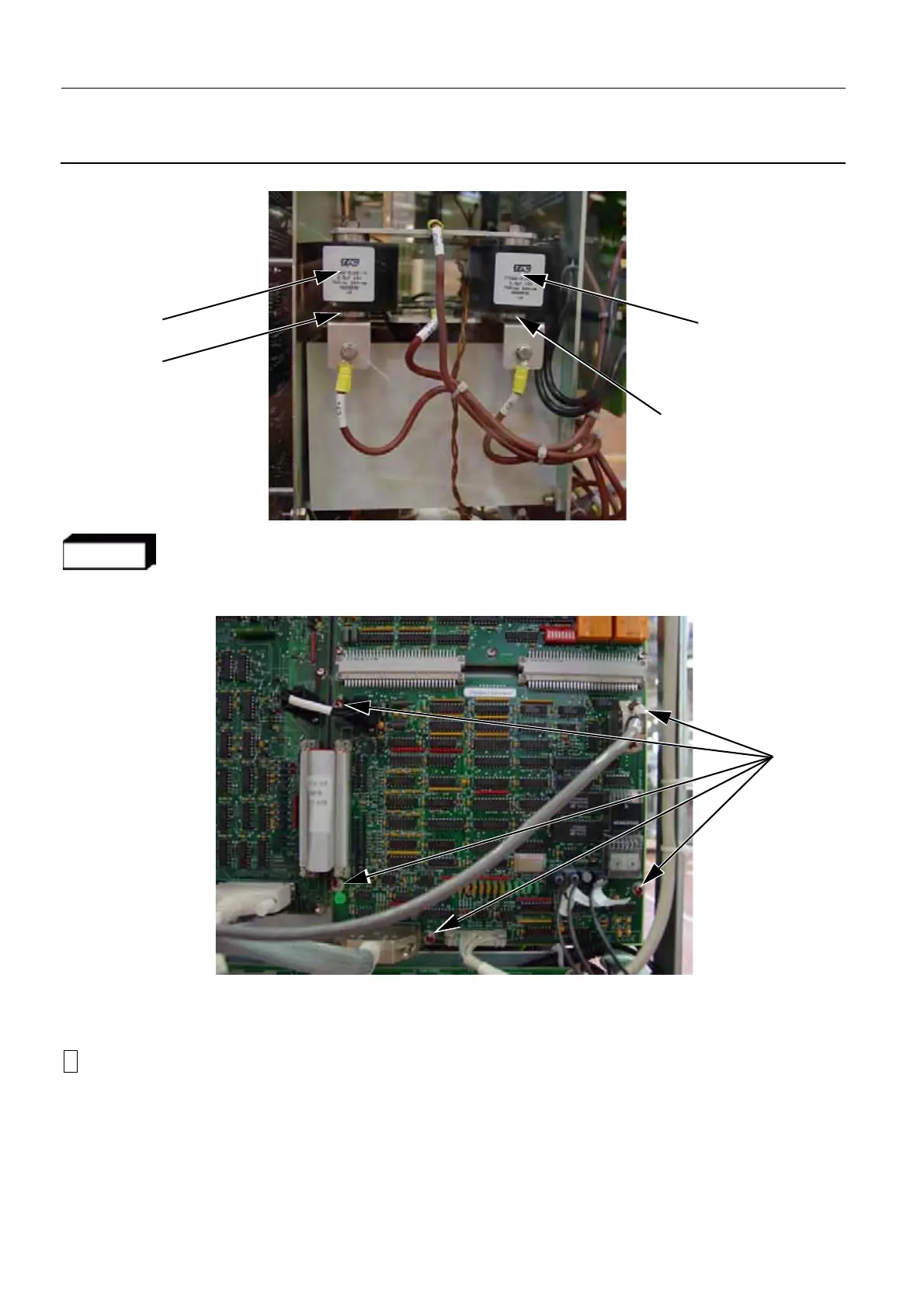

5. The Generator Interface board is located on the middle right of the Generator. Disconnect all the
cables and optical fibers from the Generator Interface board and make a mental note where they
connect to. Ensure that you do not move them too much so it is easier to re-connect them later on.
!
Notice:
Disconnect with caution to avoid damage to the connectors and cables.
6. Remove the five screws (1) that secure the Generator Interface board (4 mm allen wrench) to the
Generator chassis. Carefully remove the defective Generator Interface board by pulling it downwards
away from the Generator CPU board.
S2
S1
RC2
RC1
1
