GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A408 - Generator Supply Command Board 200-PL2
Page no. 1585 Chapter 9
JC-DR-A-408.fm

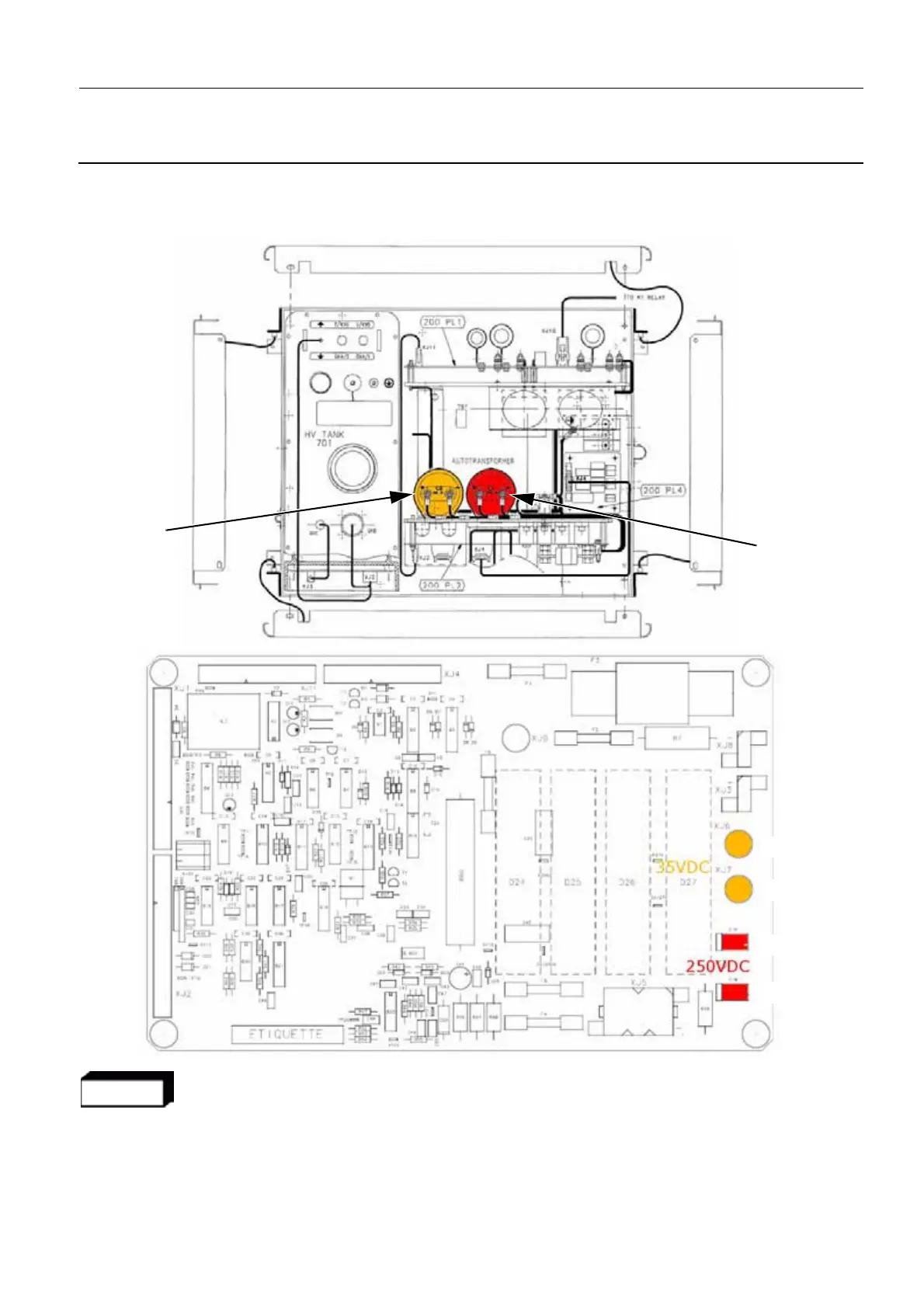

6. The C1P and M1P connectors may still have a residual voltage of 250V DC from the C1 capacitor
located behind the Generator Supply Command board. Using a voltmeter (rating 1000 V DC), check
that there is no residual voltage (250V DC) between the C1P and M1P connectors.
WARNING
Residual voltage stored in the C1 and C2 capacitors (located behind the Generator Com-
mand Supply board can be dangerous. Ensure that the capacitors are fully discharged
before you handle the Generator Supply Command board.
C2
C1
XJ6
XJ7
C1P
M1P
To Next Page
