GE Senographe DS User Manual

Chapter 9 Page no. 1588
JC-DR-A-408.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN

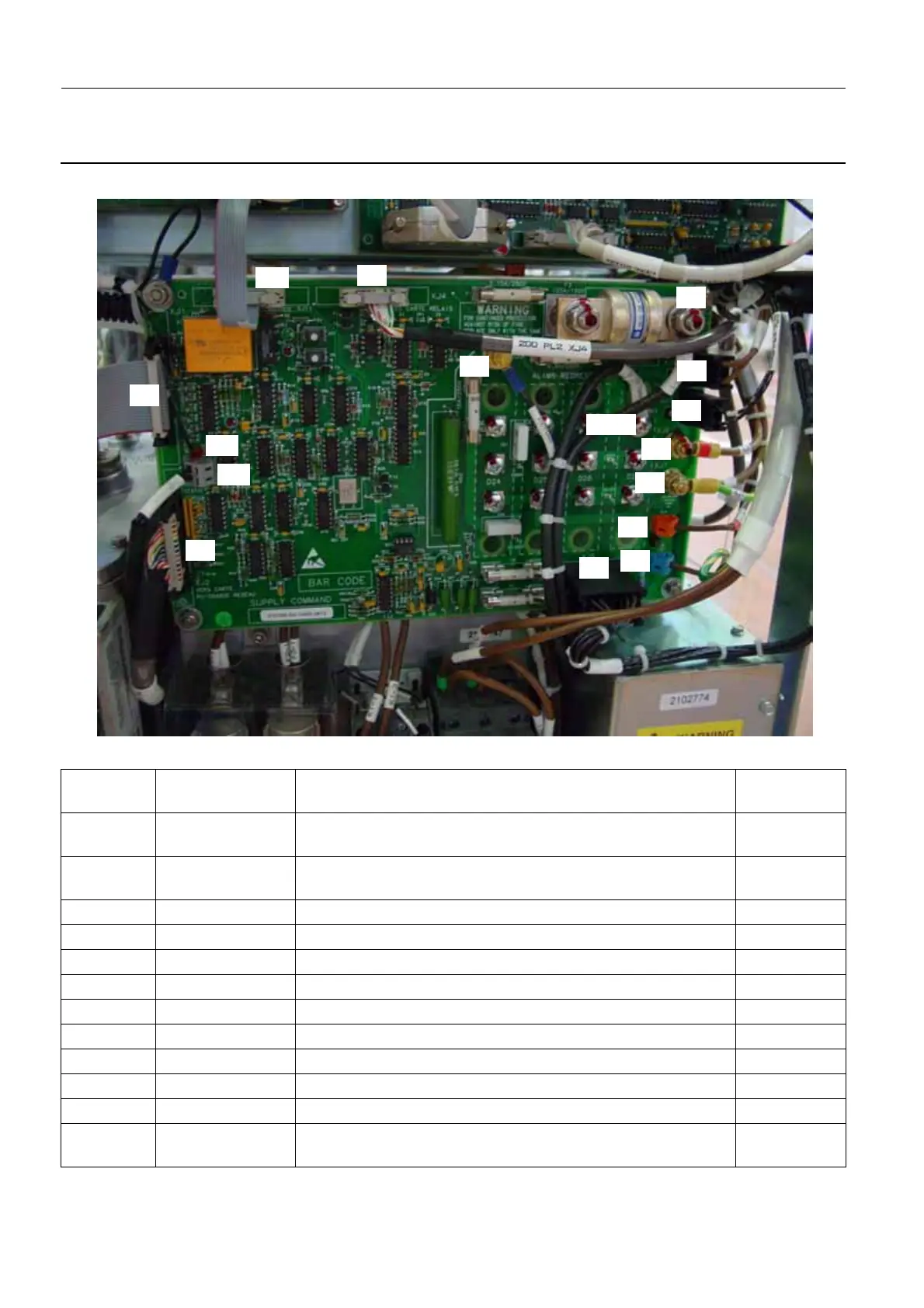

Job Card D/R A408 - Generator Supply Command Board 200-PL2
Connector
Label
Tool Description of cable
(usually identified by code on a white label)
Cable color
XJ1 N/A 400 PL1 XJ1
(red line at bottom of ribbon connector)
Gray
XJ11 N/A 200 PL2 XJ11
(red line at left of ribbon connector)
Gray
XJ2 N/A 200 PL2/XJ2 Gray
XJ3 N/A 200 PL2/XJ2 (cable labeled "T" on top) Black
XJ4 N/A 200 PL2 XJ4 Gray
XJ5 N/A XJ5 Black
XJ8 N/A Two brown cables in to black connector Brown
TP10 N/A Black cable with red end plastic, coming from to left conduit Black
XJ10 Small screwdriver 200 PL2/XJ10 Black
C1P Small screwdriver C1P Brown
M1P Small screwdriver M1P Brown
XJ6 8 mm open ended
wrench
XJ6 Brown
XJ6
XJ7
XJ3
XJ8
XJ5
C1P
M1P
XJ4
XJ11
XJ10
XJ2
XJ1
F3-2
D27-AK
TP10
XJ9
