GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A408 - Generator Supply Command Board 200-PL2
Page no. 1589 Chapter 9
JC-DR-A-408.fm
5. Except for the TP10 connector which you connected earlier, ensure that all the Test Point (TP) con-
nectors (labeled TP1, ... etc.) on the Generator Supply Command board are open.
6. Switch on the electrical power supply, both from the Mains Distribution Panel in the room and on the
rotary switch in the Generator cabinet (position I).
7. Switch on the Senographe system electrical power (i.e. Generator, Gantry, and Control Station).
8. Wait until the Gantry boot is complete, and check that no error has been reported.
If the Generator Command board is operating correctly, the LED states on the Generator Command
board are as follows:
• green DE1 LED is ON
• red DE2 LED is OFF
• red DE3 LED is OFF
• clear N1 LED is ON
9. Reinstall the Generator covers (see Job Card PHY A042 - Remove/Reinstall Generator Covers on
page 513).
7 COMPLETION
None.

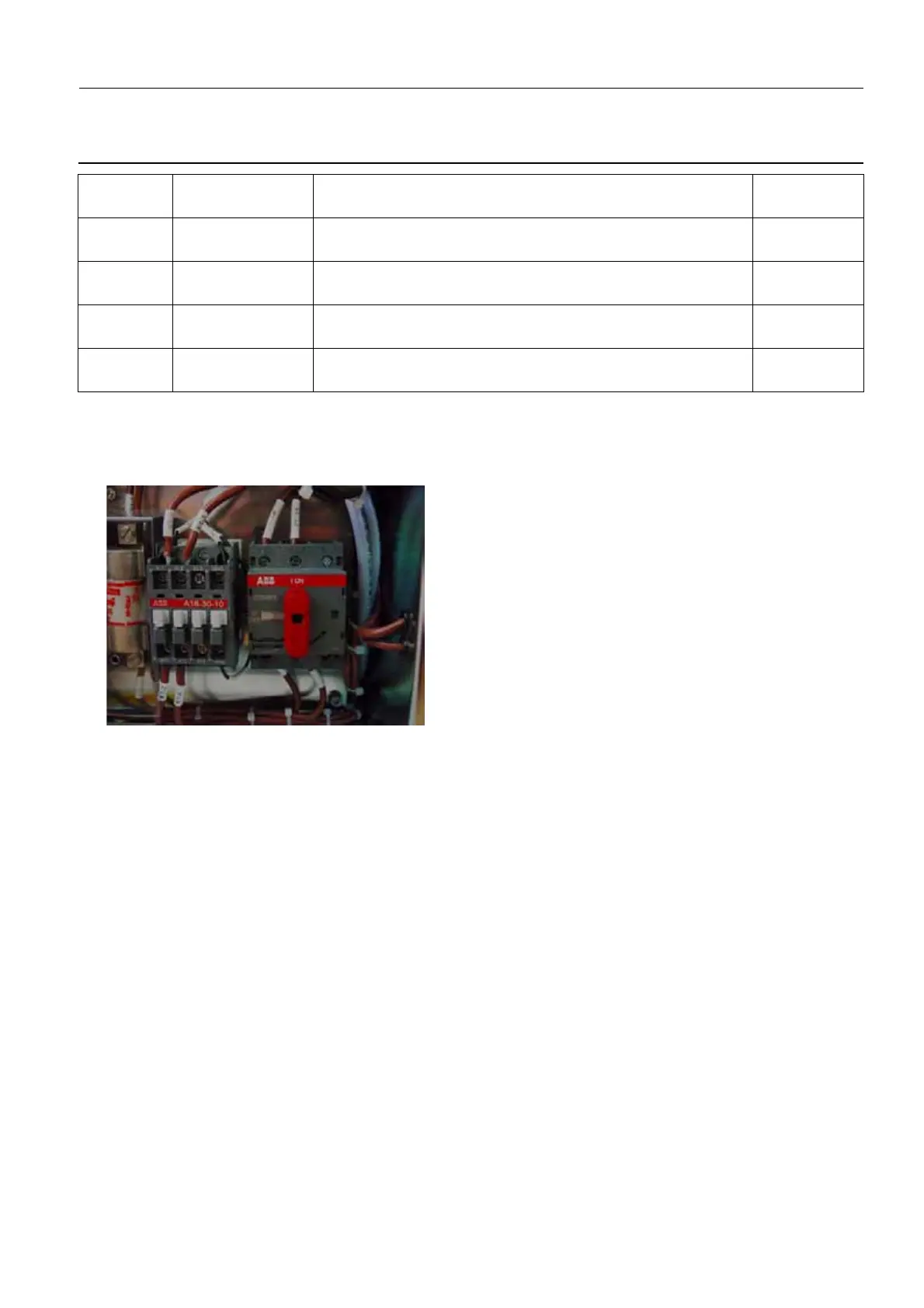

XJ7 8 mm open ended
wrench
XJ7 (on two cables) Brown
Yellow/green
XJ9 8 mm open ended
wrench
200 PL2/XJ9 Black
F3-2 13 mm open
ended wrench
200 PL2/F3-2 Black
D27-AK Cross-head
screwdriver
200 PL2/D27-AK Black
Connector
Label
Tool Description of cable
(usually identified by code on a white label)
Cable color
To Next Page
