Job Card D/R A410 - Inverter Board 300-PL1
Page no. 1597 Chapter 9
JC-DR-A-410.fm
6-2 Installation of the Inverter Board 300-PL1
1. Carefully place the new Inverter board on the Generator chassis. Ensure that the one thread passes
thorough the Inverter board top middle hole, and ensure that the holes for the six bolts line up with
the four threads on the Generator chassis.
2. When placing the new Inverter board on the Generator chassis ensure that you the thread the three
sets of brown cables through the holes in the Inverter board (1, 2, 3).
3. Attach the bolt (4) (7 mm open ended wrench) to the thread.
4. Attach the six bolts (5) (7 mm allen wrench) to secure the rest of the Inverter board to the Generator
chassis.

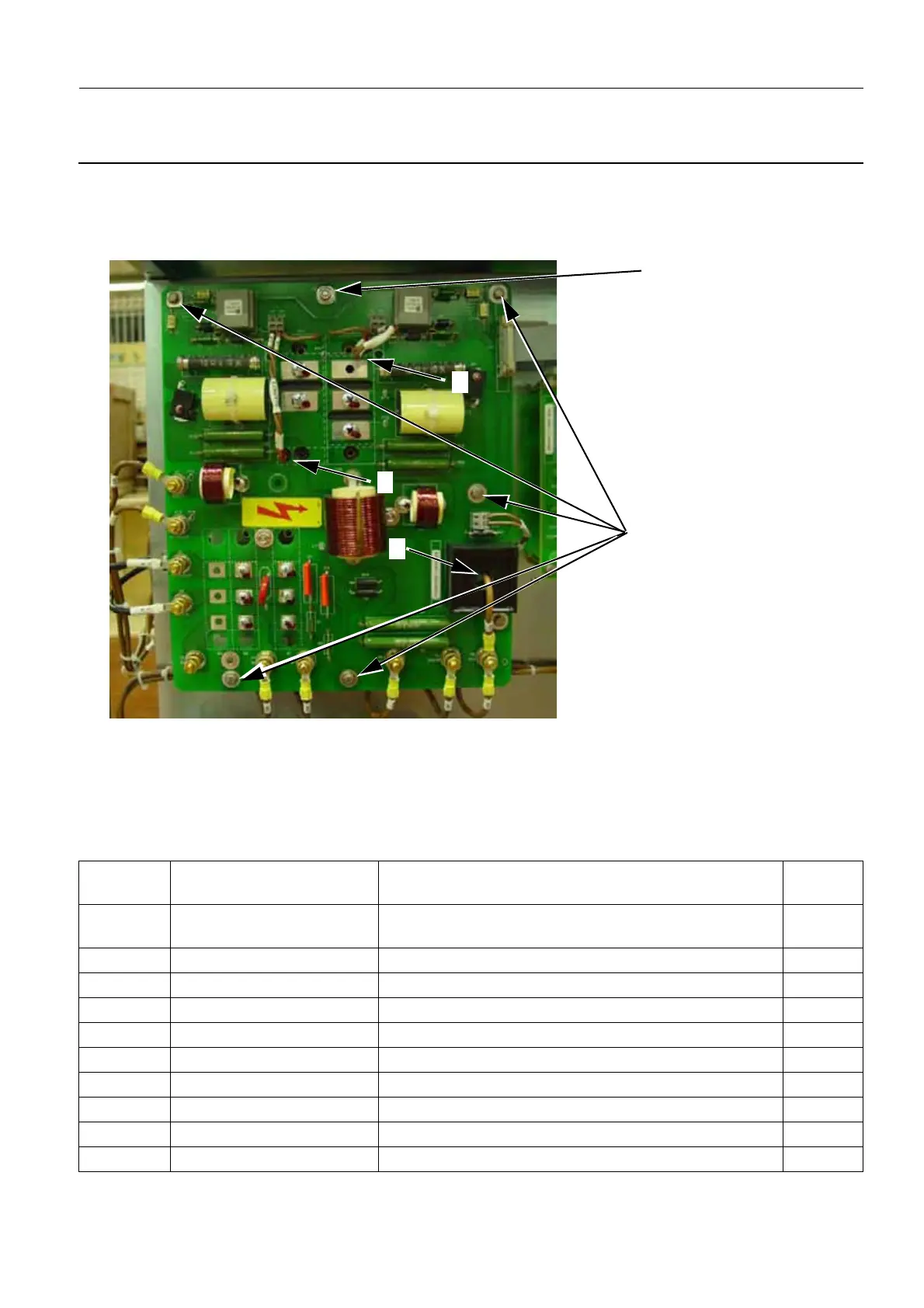

5. Connect all the cables to the new Inverter board as summarized in the diagram and table below.
Connec-
tor Label
Tool Description of cable
(usually identified by code on a white label)
Cable
color
XJ1 N/A 300 PL1 XJ1 2110262
(red line at top of ribbon connector)
Gray
X1 10 mm open ended wrench X1 Black
X2 N/A Empty N/A
X3 10 mm open ended wrench X3 Brown
X4 10 mm open ended wrench X4 Brown
X5 10 mm open ended wrench X5 Black
X6 10 mm open ended wrench X6 Brown
X7 10 mm open ended wrench X7 Brown
X8 10 mm open ended wrench Two cables, one from below and one from behind: X8 Brown
X9 10 mm open ended wrench X9 Brown
5
4
1
2
3
To Next Page
