Job Card D/R A412 - Anode Starter Board 300-PL2

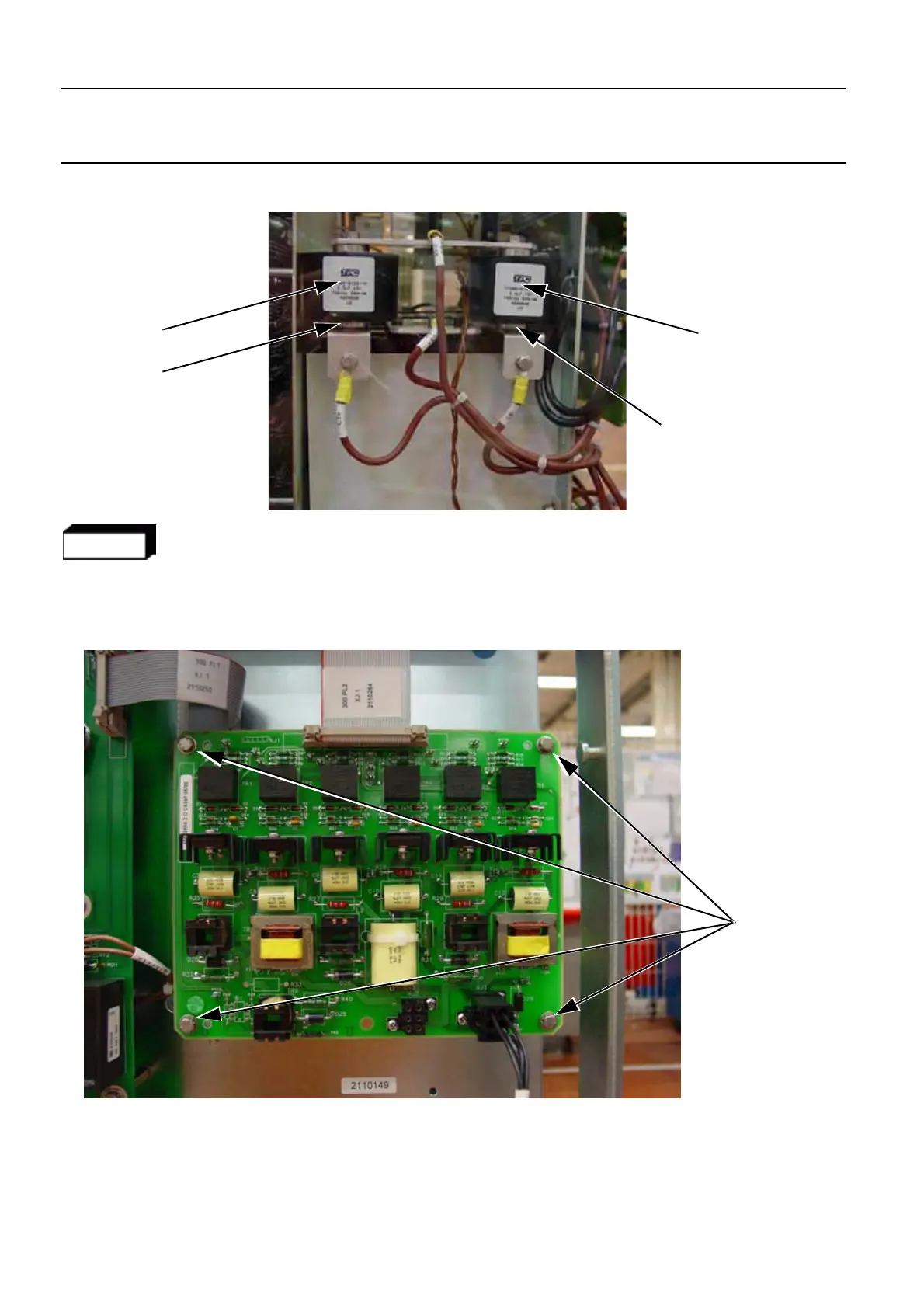

4. Using a voltmeter (rating 1000 V DC), check that there is no residual voltage between screws S1 and
S2 before proceeding.
WARNING
Residual voltage stored in the resonant capacitors can be dangerous. Ensure that the res-
onant capacitors are fully discharged before you handle the Anode Starter board.
5. Remove all of the cables from the Anode Starter board. Ensure that you do not move them too much
so they are easier to re-connect later on.
6. Remove the four bolts (1) (7 mm open ended wrench) which attach the Anode Starter board to the
Generator chassis.
7. Remove the faulty Anode Starter board from the Generator chassis.
S2
S1
RC2
RC1
1
