GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A412 - Anode Starter Board 300-PL2
Page no. 1611 Chapter 9
JC-DR-A-412.fm
8. Put the defective Anode Starter board in an anti-static bag.

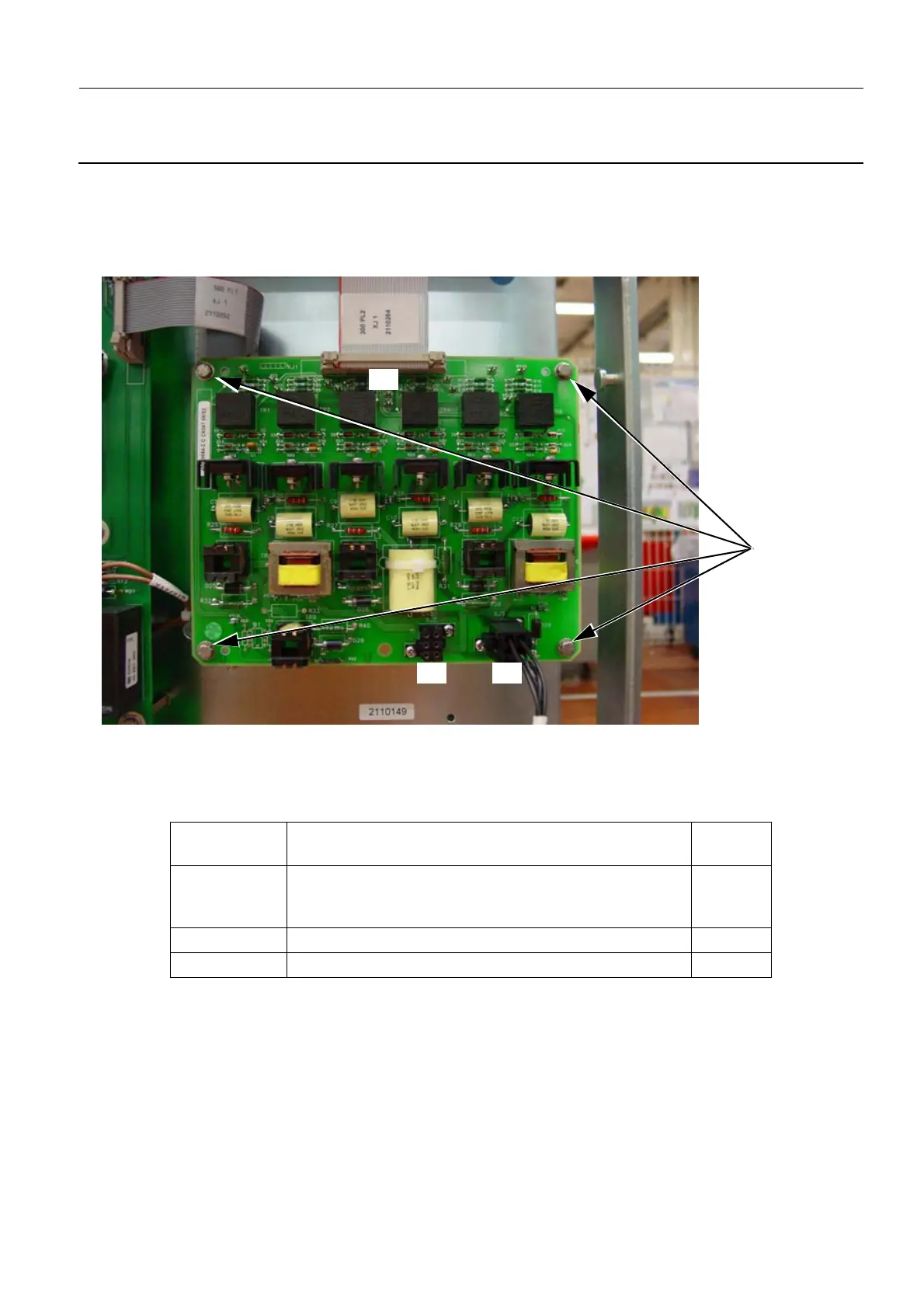

6-2 Installation of the Anode Starter Board 300-PL2
1. Carefully place the new Anode Starter board on the Generator chassis. Ensure that the holes for the
four bolts line up with the four threads on the Generator chassis.
2. Attach the four bolts (1) (7 mm allen wrench) to secure the Anode Starter board to the Generator
chassis.
3. Connect all the cables to the new Anode Starter board as summarized in the diagram above and
table below.
4. Switch on the electrical power supply, both from the Mains Distribution Panel in the room and on the
Connector
Label
Description of cable
(usually identified by code on a white label)
Cable
color
XJ1 300 PL2 XJ1 2110264
(red line of the ribbon cable on the left-hand side as you
look directly at the board)
Gray
XJ2 Empty N/A
XJ3 300 PL2 XJ3 Black
1
XJ1
XJ3 XJ2
To Next Page
