GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A415 - Generator Board CPU EEPROMs
Page no. 1629 Chapter 9
JC-DR-A-415.fm

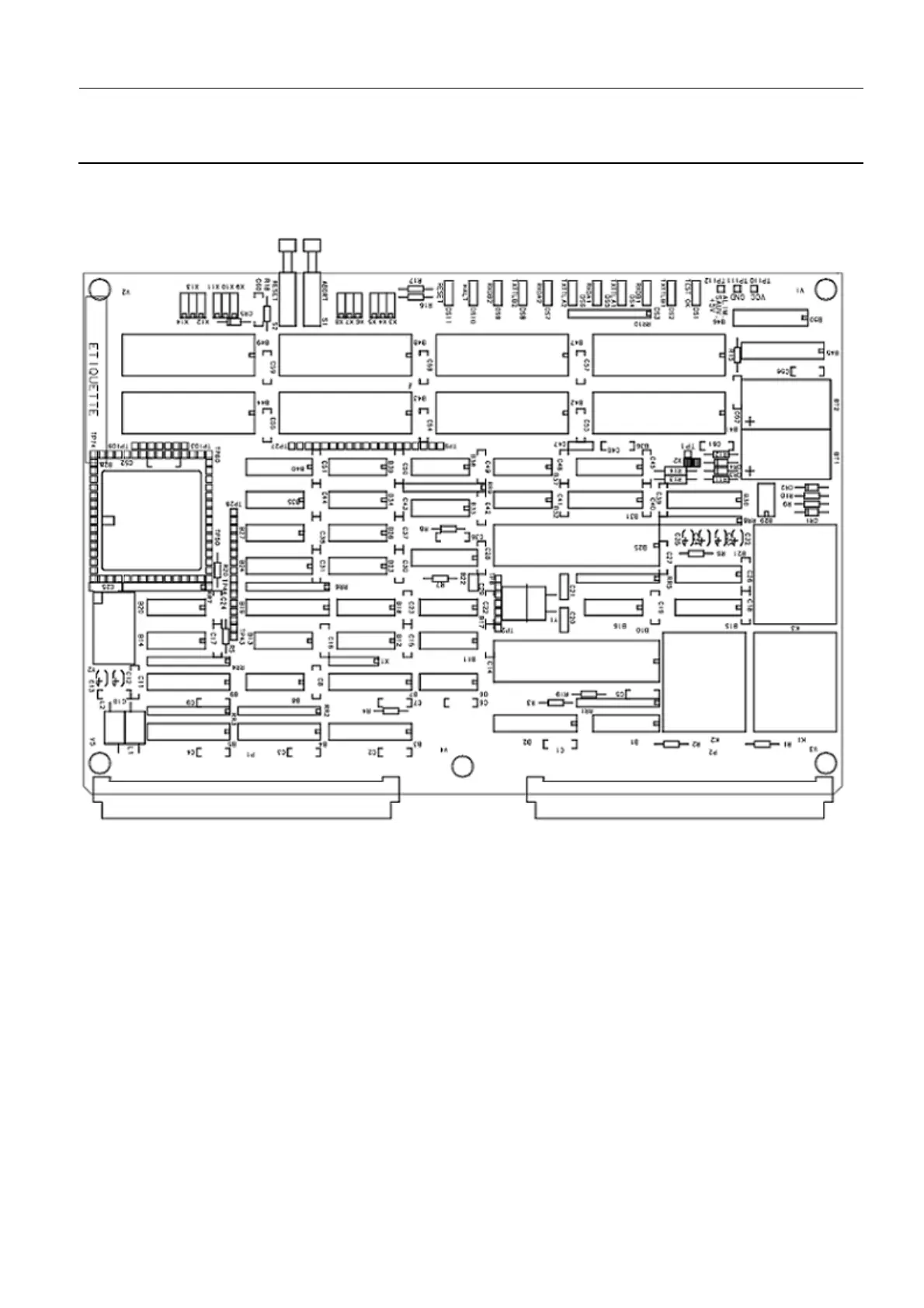

ILLUSTRATION 1 - LAYOUT OF THE GENERATOR CPU BOARD
Take great care to respect the orientation of the EEPROMs. Ensure that the small notch of the
EEPROM is above the small notch on the Generator CPU Board. Do not trust label orientation on the
B44 socket
B43 socket
B48 socket
B49 socket
