GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card CHK A004 - DICOM Printer Adjustments and Checks
Page no. 1743 Chapter 9
JC-CHK-A-004.fm

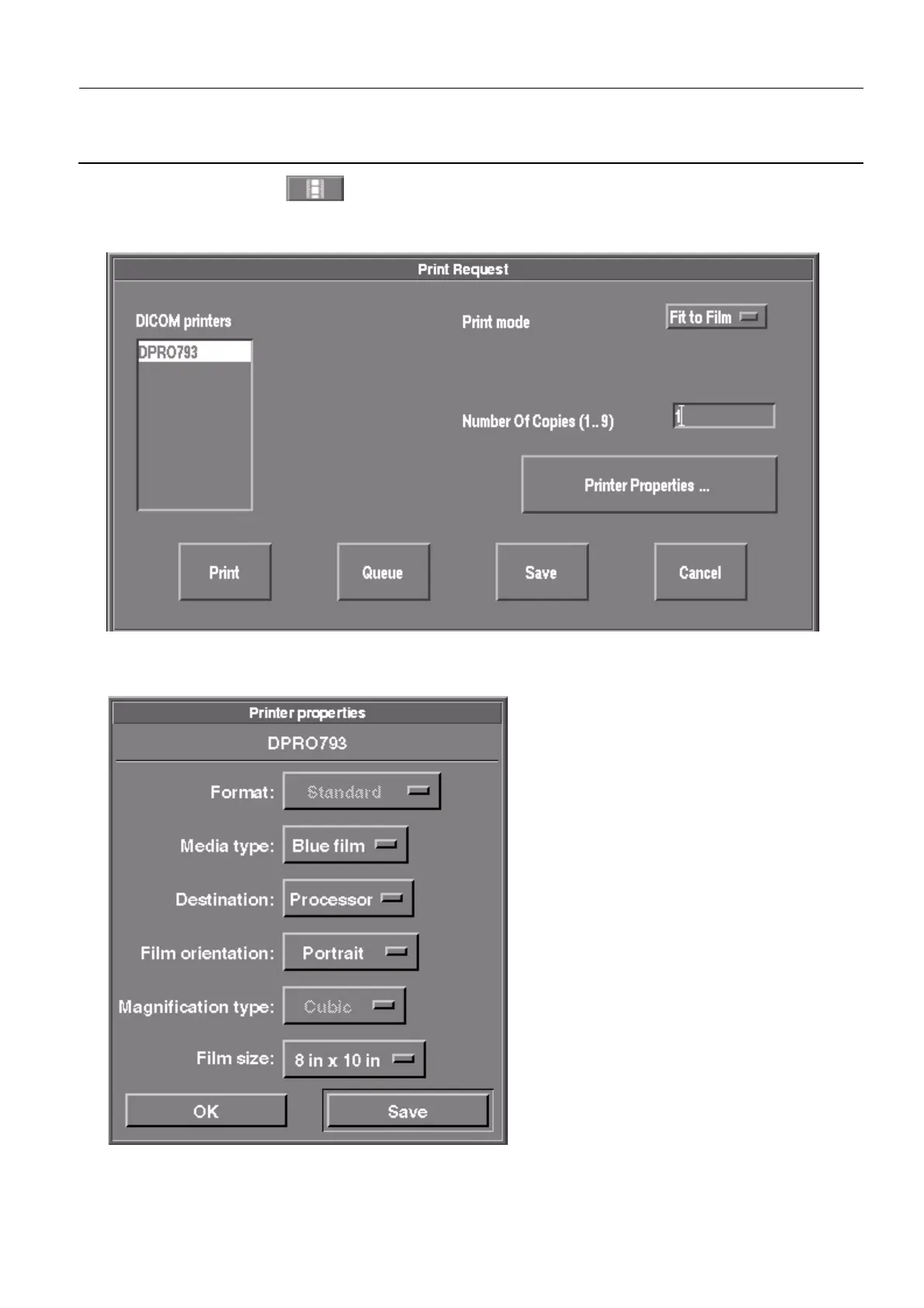

5. Click the PRINT button .
6. From the Print Request window that appears, select the DICOM printer you want to check in the list
of DICOM printers, then click on Printing Properties ....
7. In the Printer properties window that appears, select Blue film for the Media type, Processor for the
Destination, and Portrait for the Film orientation. Then click Save to save the settings and Done to
return to the Print Request window.
8. Back in the Print Request window, click Print.
To Next Page
