GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PM A254 - Tube Head Fan Filter Cleaning
Page no. 1785 Chapter 11
JC-PM-A-254.fm

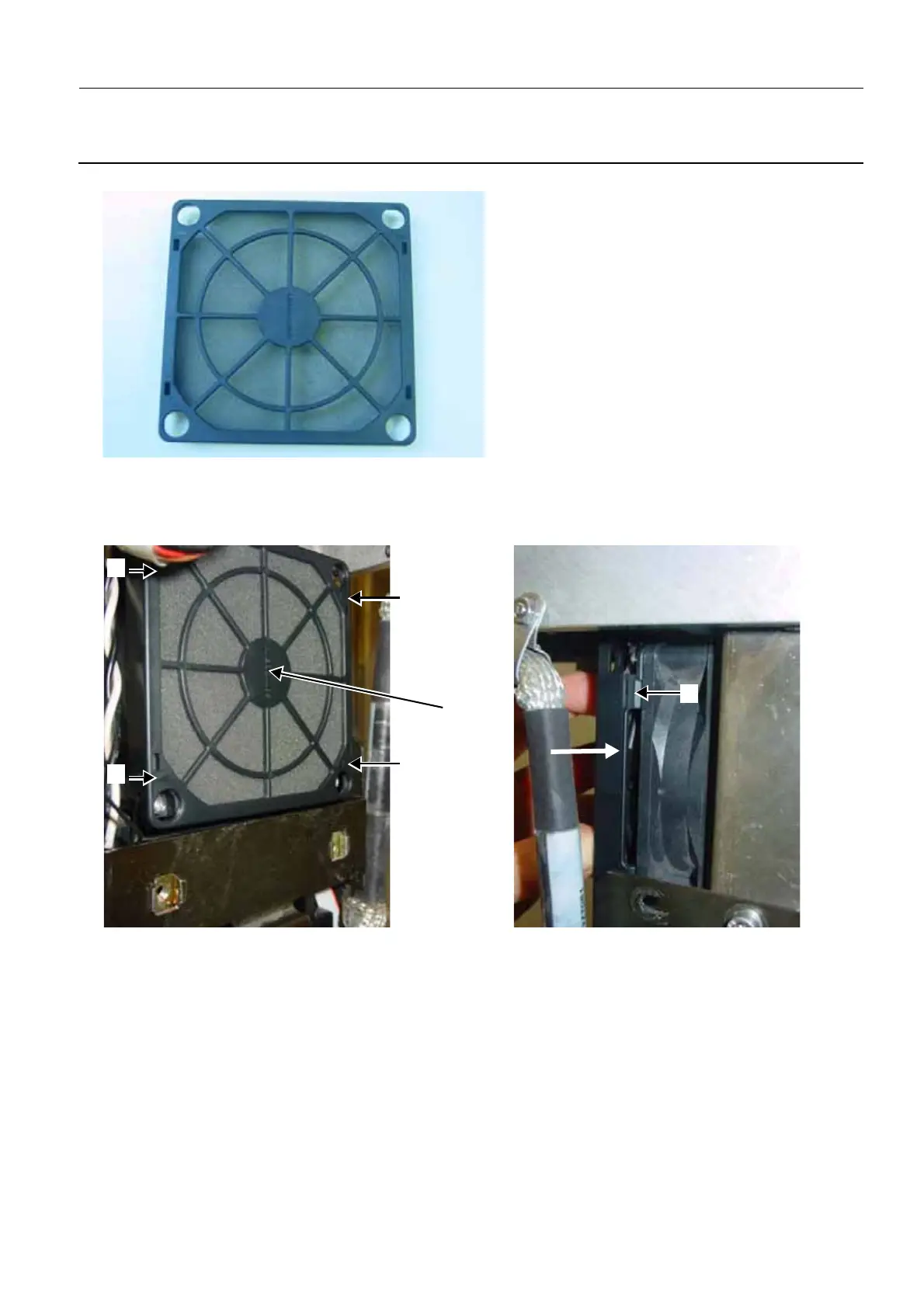

3. Put the Fan Filter back into the Fan Filter front cover.
4. Place the Fan Filter inside the Fan Filter front piece. Position the Fan Filter front piece over the Fan
back piece to that the text (1) written in the middle of the Fan Filter front piece is vertical (i.e goes up/
down) and not horizontal (i.e. goes left/right) and so that the arrows (2) are located on the vertical
edges and not the horizontal edges.
Note:
It is important that the text (1) and arrows (2) are orientated as described above. Having the text
(1) and arrows (2) orientated as described above makes the future removal of the Fan Filter front
piece simple.
5. Install the Fan Filter front piece and Fan Filter on the Fan Filter back piece by pushing them on to the
Fan Filter back piece. The sides of the Fan Filter front piece will clip over the latches (3) of the Fan
Filter back piece when you apply modest pressure.
Note:
If the Fan Filter is damaged, you must order a new dust kit (PN: 5394527).
1
2
2
2
2
3
