GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PM A300 - 21-inch 3MP Monitor Luminance Checks
Page no. 1795 Chapter 11
JC-PM-A-300.fm
4. Once the transfer of the test patterns is complete, click the top right corner of the
Media Browser:CDR window to return to the main Browser window. The Patient List in the Browser
now includes a Patient called AAPM Test Patterns, which contains the test patterns required to
check the luminosity of the 21-inch 3MP Monitor.
5. In the Browser, click the CDR-read/write icon and select Detach from the menu that appears. The
DVD-ROM drive of the ADS Computer opens.
6. Remove the Test Pattern CD-ROM and close the DVD-ROM drive.

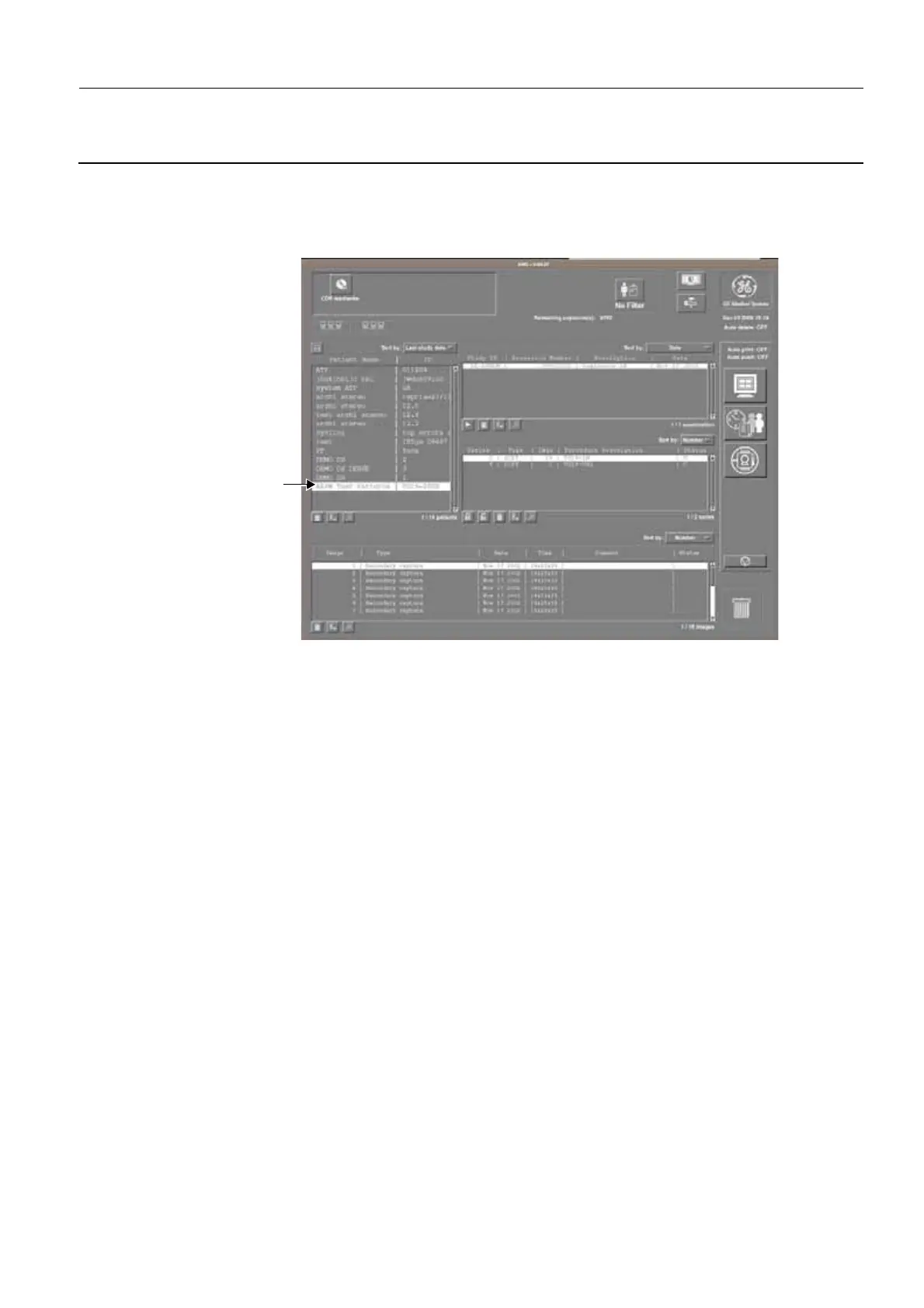

AAPM Test Patterns
