Chapter 11 Page no. 1794
JC-PM-A-300.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PM A300 - 21-inch 3MP Monitor Luminance Checks
4 APPLICABILITY
The Job Card must be applied during the planned maintenance visit on systems containing the optional
21-inch 3MP Monitor (P/N 5350390).
5 SAFETY PRECAUTIONS
None
6 PREREQUISITES
The 21-inch 3MP Monitor has already been installed and configured to use 1 - DICOM mode and the
maximum luminance is 400 cd/m² according to Monitor Mode Configuration on page 553 within Job Card
ELE A008 - Configuring the 21-inch 3MP Monitor.
7 PROCEDURE
7-1 Install Test Images
1. Insert the Test Pattern CD-ROM into the DVD-ROM drive of the ADS Computer.
2. In the Browser, click the CDR read/write icon and select Query from the menu that appears.
A Media Browser:CDR window appears.

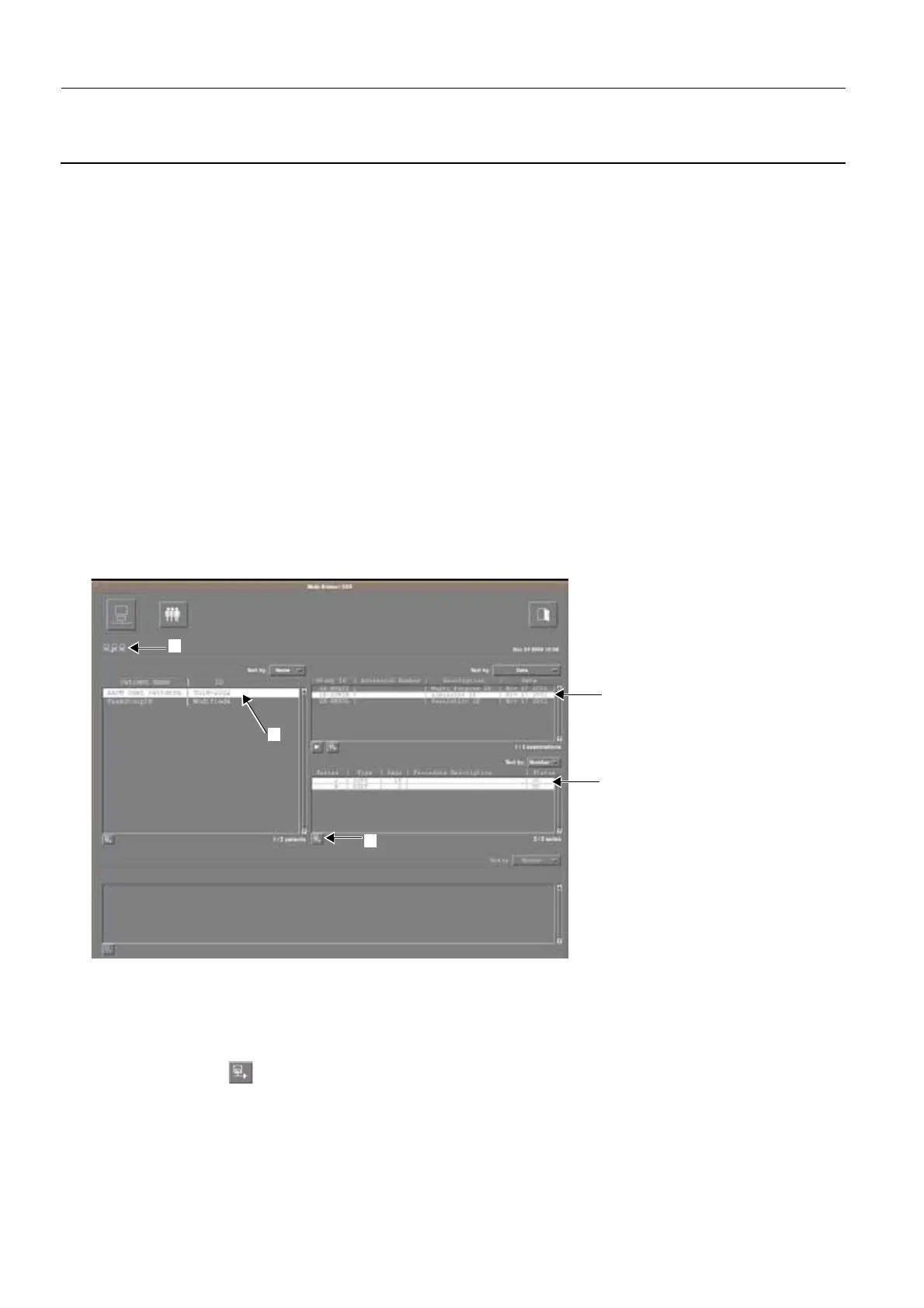

3. From the Media Browser:CDR window:
a. Select the AAPM Test Patterns patient.
b. Select the 1K-LUMIN Study ID.
c. Select both the 2 and 4 Series (use the Control key to select both Series).
d. Click the Disk icon under the Series list. From the Restore dialog box that appears, click OK.
e. The test patterns from the Test Pattern CD-ROM are transferred to the patient list on the ADS
Computer. During this transfer time, an animated data transfer icon towards of the top left of the
Media Browser:CDR window appears. When the transfer of the test patterns is complete, the data
transfer icon disappears.
d
a
b
c
e
To Next Page
