GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A008 - Configuring the 21-inch 3MP Monitor
Page no. 553 Chapter 7
JC-ELE-A-008.fm
7-2 Monitor Mode Configuration
The 21-inch 3 MP Monitor needs configuring to different settings to the factory defaults, so that:
• Landscape mode is enabled (see section 7-2-2)
• only the 1-DICOM mode is available and no other modes can be selected (see section 7-2-3 and
section 7-2-4)
• the mode window only appears for 15 seconds (see section 7-2-5)
• the luminosity of the monitor is checked to be 400 cd/m² (see section 7-2-6)
• the control buttons are inactive (to prevent the Operator changing the settings) (see section 7-2-7)
Note:
If the 21-inch 3 MP Monitor control buttons are locked, you can unlock them according to the pro-
cedure described in section 7-2-7.
7-2-1 General Controls
This section descibes the general use of the 21-inch 3 MP Monitor control buttons and power LED. The

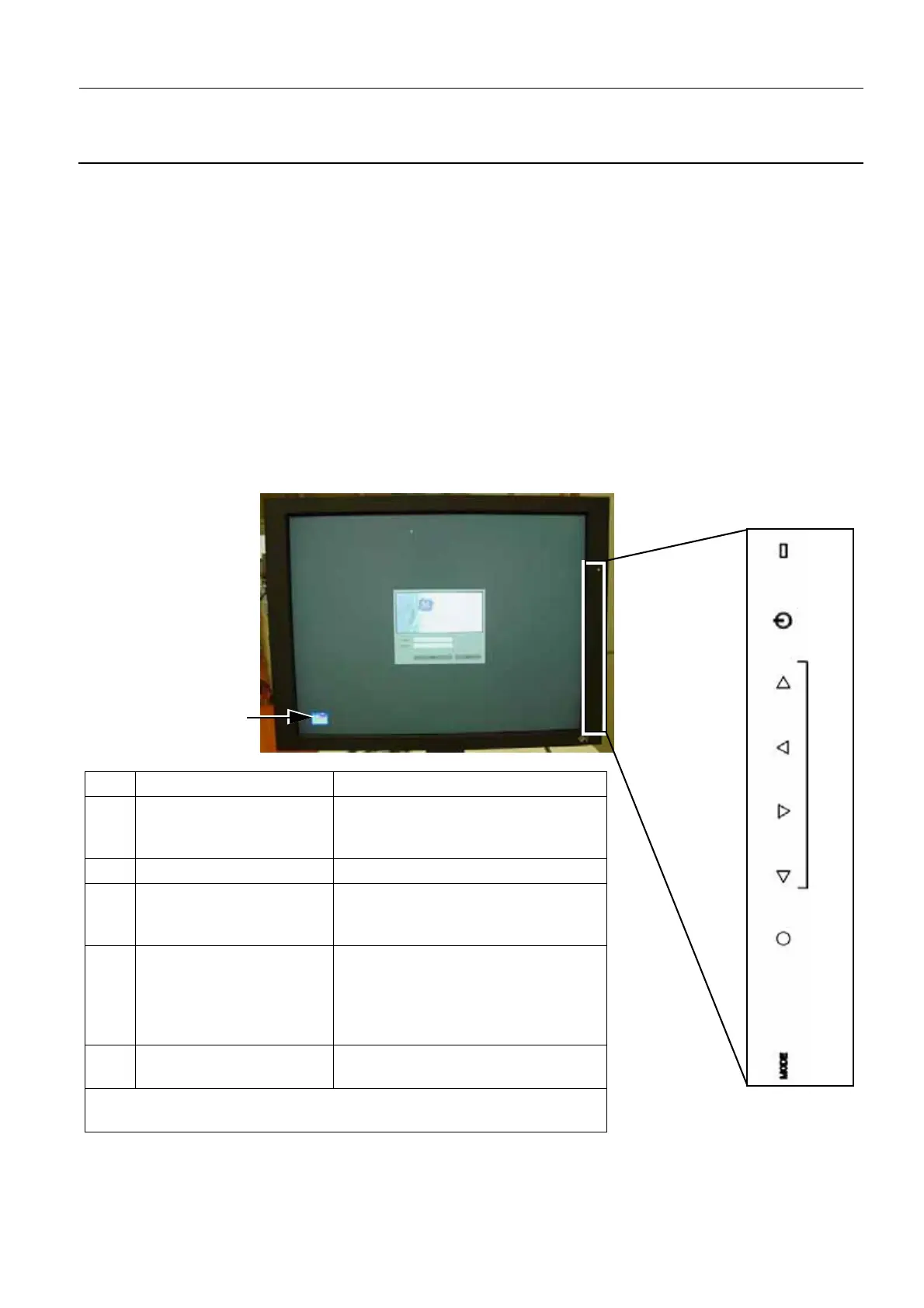

right hand side of the 21-inch 3 MP Monitor contains various buttons and a LED as shown below.
Control Panel
Existing
Mode
Setting
Item Function Description
1 Power Indicator LED Indicates the monitor’s operational
status: Green - ON, Yellow - Power
Saving, not illuminated - OFF.
2 Power button Turns the monitor power on or off.
3 Navigational menu buttons Up, Left, Right, and Down buttons
for selecting different monitor configu-
ration menu items and adjustings
4 Enter button A single tap displays the ScreenMan-
ager menu, or confirms the selection
of a menu item.
A double tap saves adjusted values
and closes configuration menu.
5 Mode button Toggles between different preset dis-
play modes
Note: The items in bold above are the names of the buttons used in the
procedures below within this Job Card.
1
2
3
4
5
