GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card ELE A008 - Configuring the 21-inch 3MP Monitor
Page no. 555 Chapter 7
JC-ELE-A-008.fm
7-2-3 Enable the DICOM-1 Mode and Disable All Other Modes
So the Operator cannot select other display modes, only the 1-DICOM mode must be enabled.

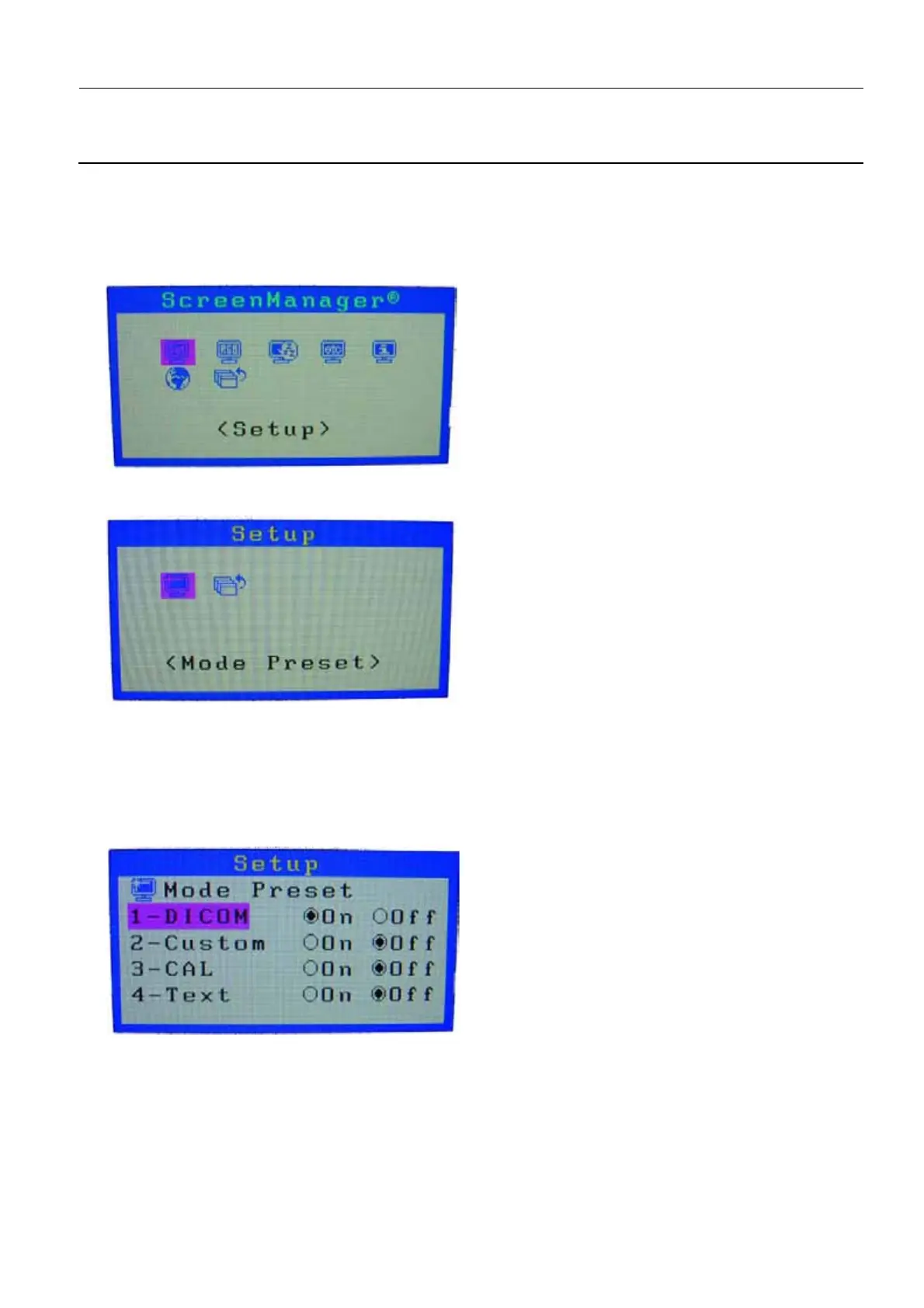

1. Press the Enter button to display the Screen Manager window.
2. On the Screen Manager window that appears, leave the <Setup> item selected and press the Enter
button.
3. On the Setup window that appears, leave the <Mode Preset> item selected and press the Enter but-
ton.
4. On the Setup - Mode Preset window that appears, use the Up/Down navigation menu buttons to
select each mode, and the Left/Right navigation buttons to change the state to On/Off, as follows:
- 1 - DICOM On
-2 - Custom Off
- 3 - CAL Off
-4 - Text Off
5. When the settings for each mode are as described and shown above, double tap the Enter button to
store the settings and close the Setup - Mode Preset window.
