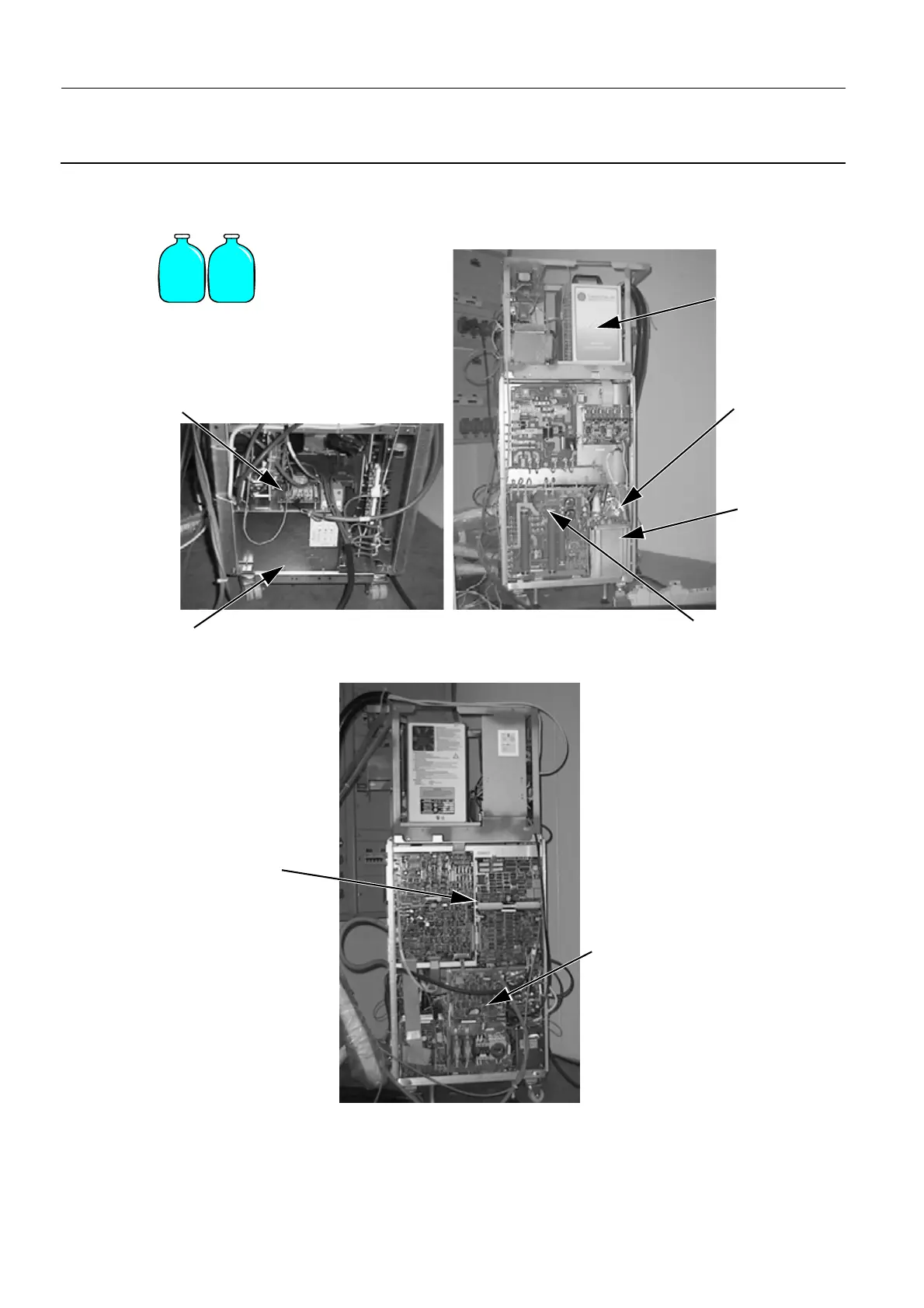

3-2-2. Generator + Conditioner Cabinet (continued)
200PL4 Relay board
200PL2 Supply command board
Mains distribution board
701HV unit
Conditioner
• Relay K1, K2
• Relay X1
• Coiled Resistor 280W
• Coiled Resistor 160W
• Fast Fuse 27X27 125A 150VAC
• Fuse 10A 380V
Coaxial cable
HVunit/IC
CPU Power supply cable
Data control cable
Line Filter Box
250 V distribution cable (WG4)
200PL1
Protective cover between
200PL1 and 200PL2
Coolant kit for install or replace
