Chapter 3 Page no. 240
Indicators and Switches.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Central Listing

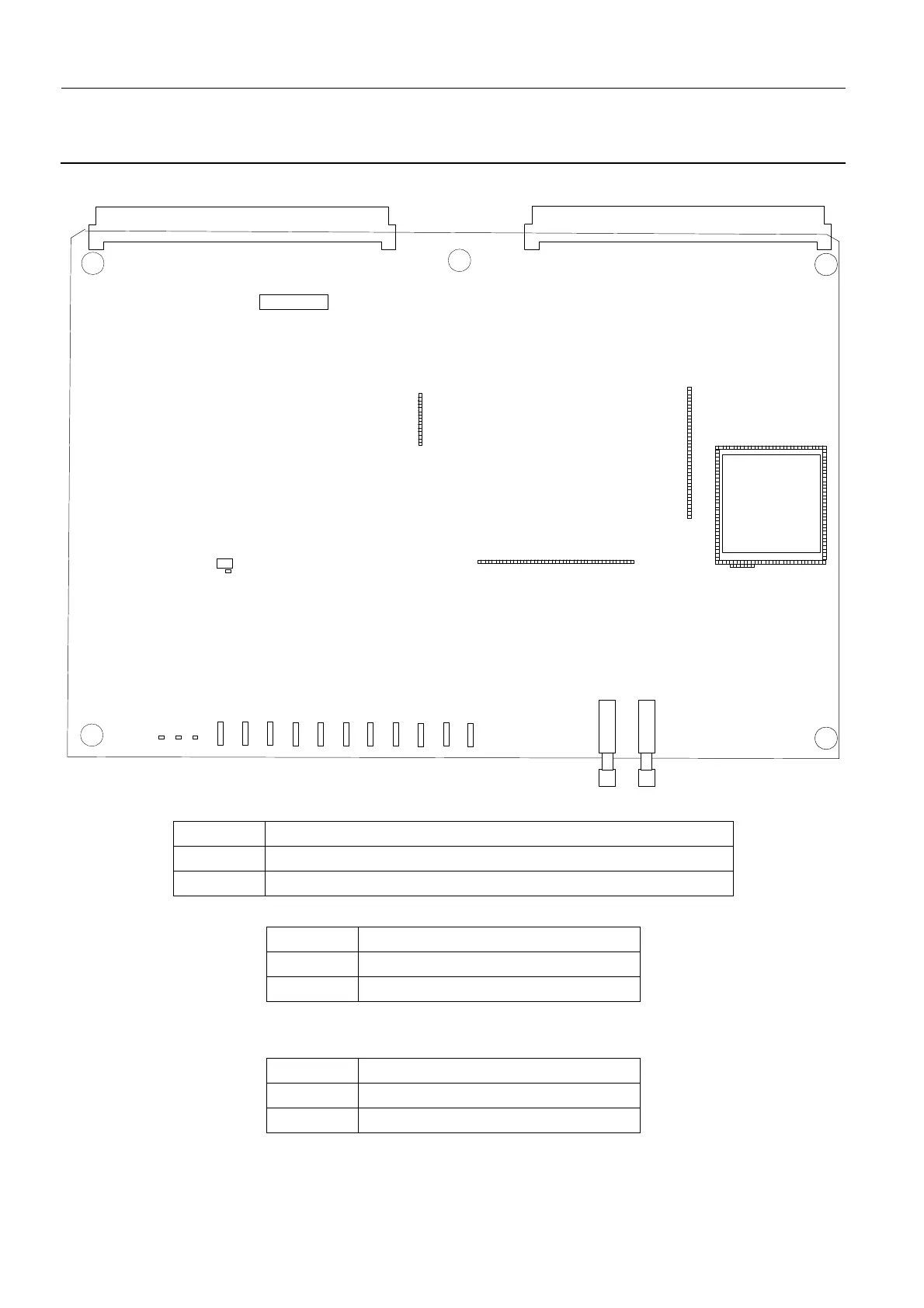

2-1. Generator CPU Board 400PL3
2-1-1. Generator CPU Board 400PL3 Connectors
2-1-2. Generator CPU Board 400PL3 Push Buttons
2-1-3. Jumpers
Connector Function
P1 To the XP1 connector on the Generator Interface Board 400PL2
P2 To the XP2 connector on the Generator Interface Board 400PL2
Switch Function
S1 Abort
S2 Reset
Jumper Function
X1 Not Applicable
X2 Battery Disconnection (see below)
X2
TP1
TP110
TP111
TP112
DS1
DS2
DS3
DS4
DS5
DS6
DS7
DS8
DS9
DS10
DS11
S1
S2
P2 P1
B1
TP2
TP8
TP9 TP27
TP28
TP43
TP103 TP109
TP60 TP50
TP74
