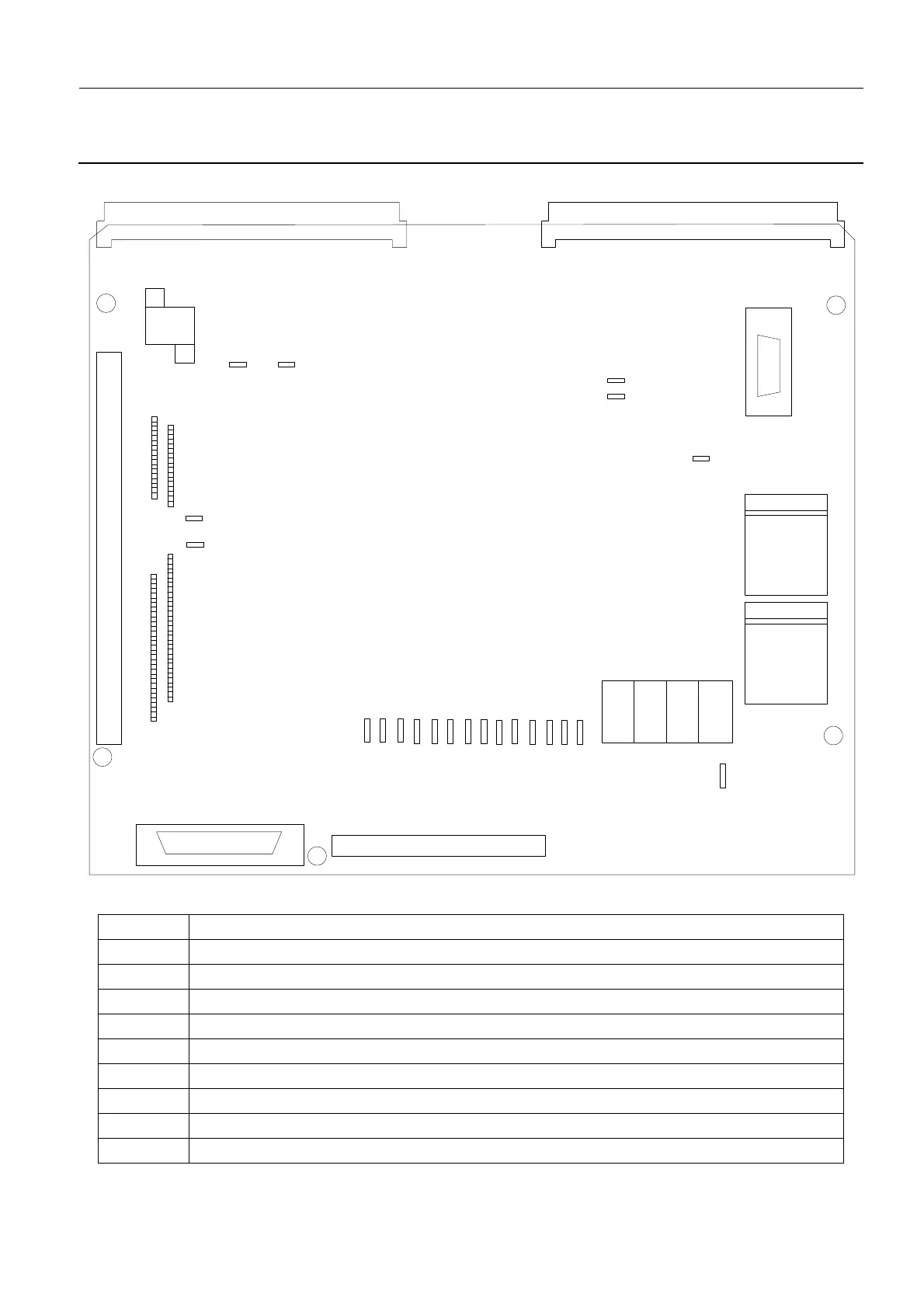

2-2. Generator Interface Board 400PL2
2-2-1. Generator Interface Board 400PL2 Connectors
Connector Function
XP1 To the P1 connector on the Generator CPU Board 400PL3
XP2 To the P2 connector on the Generator CPU Board 400PL3
XJ1 To the XJ9 connector on the Generator Command Board 400PL1 (power supply ±12 V, +5 V)
XJ2 To the XJ10 connector on the Generator Command Board 400PL1 (control signals)
XJ3 Not Applicable
XJ4 To ADS Workstation (RS-232 communications link)
XJ5 Not Applicable
XJ6 To PL104 (optical fiber serial link Rx)
XJ7 To PL104 (optical fiber serial link Tx)
XP1 XP2
DS1 DS2 DS3 DS4 DS5 DS6 DS7 DS8 DS9
DS10 DS11
DS12 DS13 DS14
DS15
TP1
TP10
TP24
TP33
PT2
PT4
PT7
PT1
PT6
PT5PT3
TP11
TP23
TP53
TP55
TP34
XJ1
XJ2
XJ10
XJ11
XJ4
XJ6 XJ7 XJ8 XJ9
F6
H6
