GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Central Listing
Page no. 255 Chapter 3
Indicators and Switches.fm

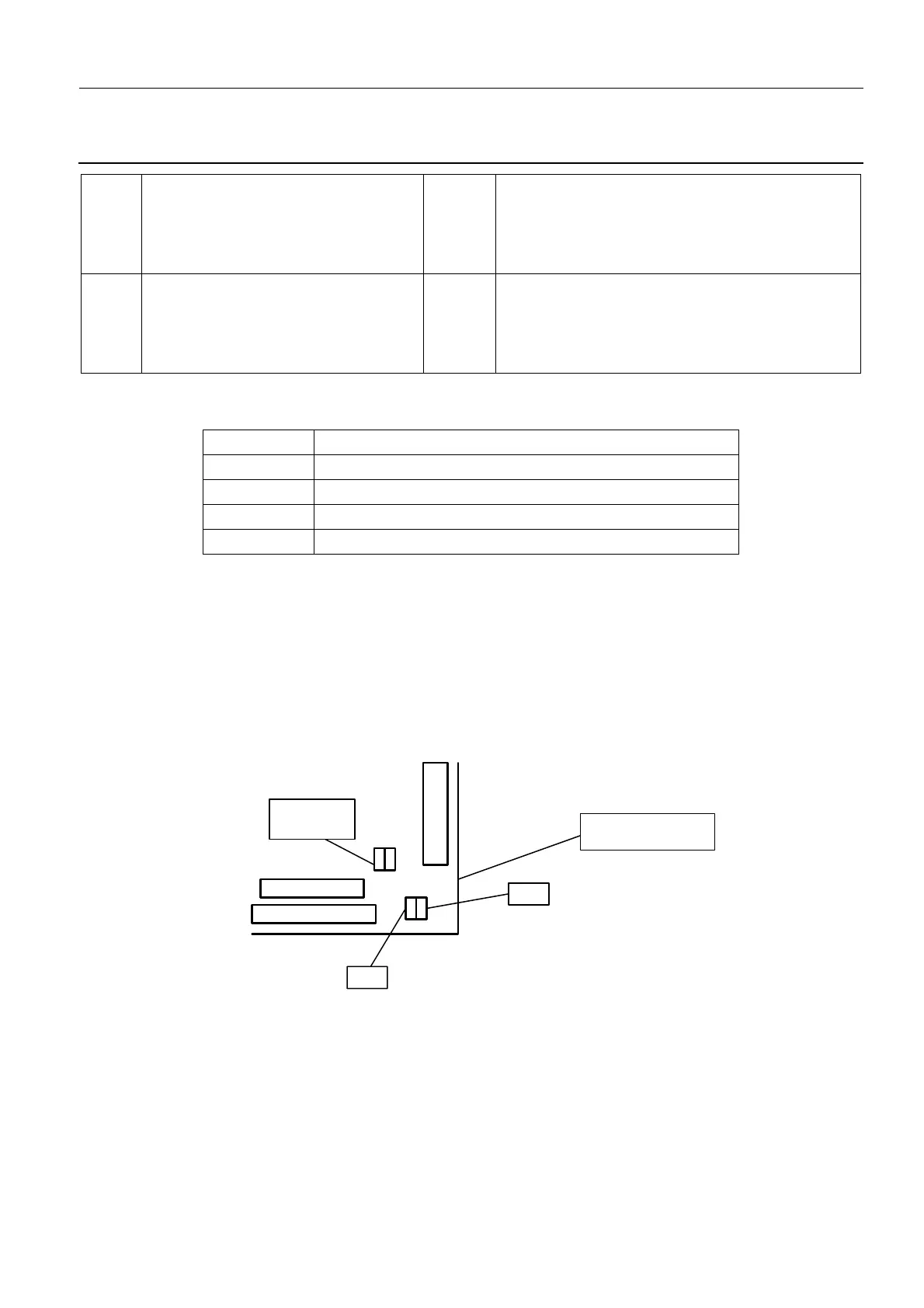

2-3-4. Generator Command Board 400PL1 Jumpers
1. Check that jumpers JP1 and JP2 are installed on Generator Command Board 400PL1. They must
not be installed in the parking position JP3 and JP4 at this point. See illustration below.
Note:
JP1 and JP2 are connected to the room relays on Generator Command Board 200PL4. Refer to
Job Card PHY A018 - Room Lamps and Door Configuration on page 475 for more information.
DS12 Security Re-obtainable Red Normal status: OFF
ON when the security signal has been triggered by
kV max, Chute kV, mA max, or Iond max.
OFF when there is no security issue.
DS13 Security Blocked Red Normal status: OFF
ON when the security signal has been triggered by
DEF alim or DEF TRAD.
OFF when there is no security issue.
Jumper Function
JP1 Defines lamp behavior when the door is open/closed
JP2 Defines lamp behavior when the door is open/closed
JP3 Parking for unused jumpers in JP1 (see text below)
JP4 Parking for unused jumpers in JP2 (see text below)
JP1
JP3 & JP4
(parking)
XJ8
XJ13
Right bottom edge
of board
JP2
XJ
10
• Board-Generator Command 400PL1; see component index page 179 .
