GE Senographe DS User Manual

GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Central Listing
Page no. 293 Chapter 3
Indicators and Switches.fm

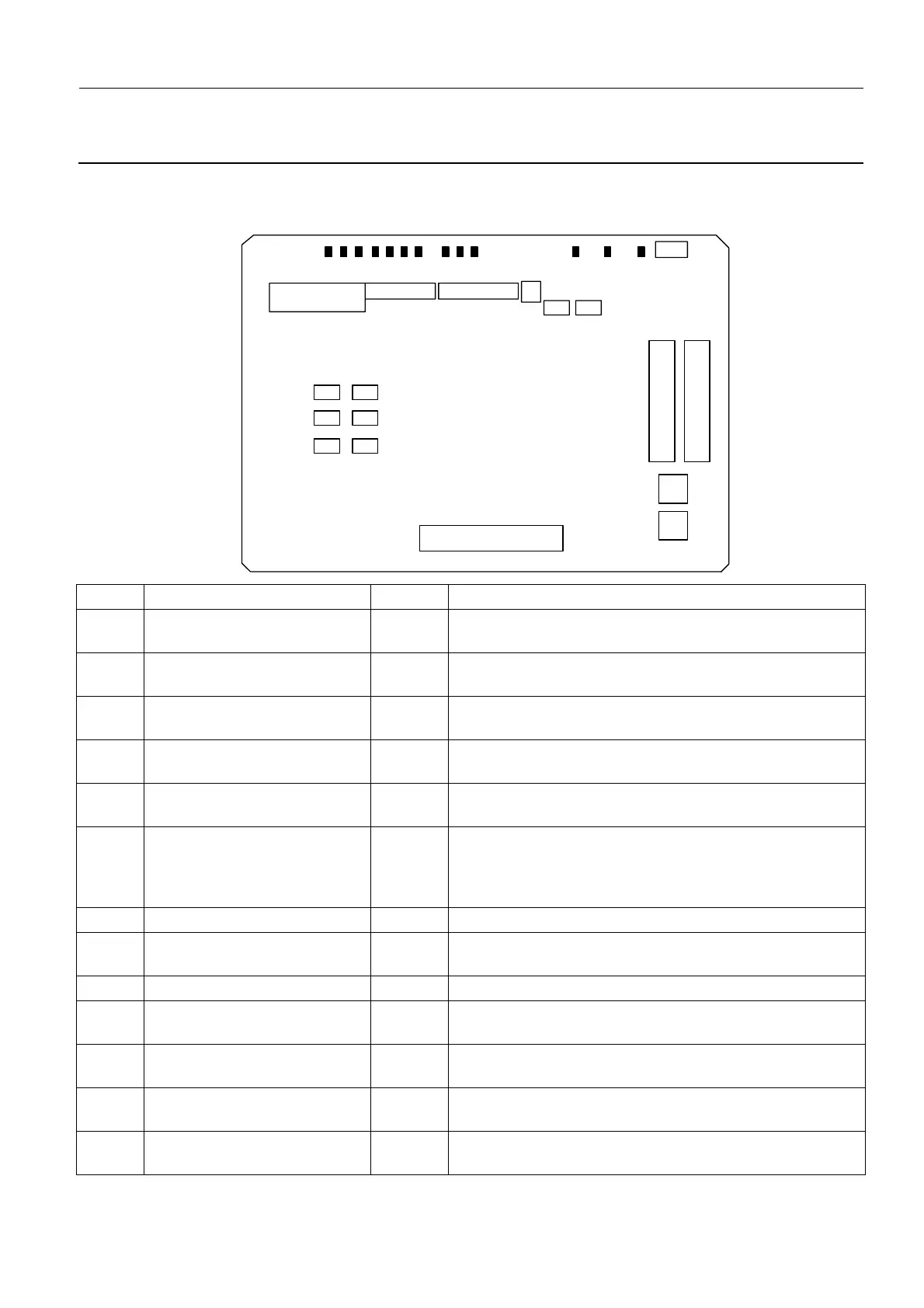

4-4. Interface Board PL104
LED Function Color Behavior
DS1 5 V Green ON when 5v supply voltage is OK
OFF when 5v supply voltage is defective
DS2 3,3 V Green ON when 3.3v supply voltage is OK
OFF when 3.3v supply voltage is defective
DS3 15 V Green ON when 15v supply voltage is OK
OFF when 15v supply voltage is defective
DS4 Enable Reset Red ON while the Interface board is being reset.
OFF when the Interface board is functioning normally.
DS5 Reset Interface Board Red ON while the Interface board is being reset.
OFF when the Interface board is functioning normally.
DS6 FPGA not configured Red On when the FPGA is not configured. The board is faulty
and needs replacing.
OFF when the FPGA is configured, and the board is oper-
ating correctly.
DS7 Not used Green Not used (debug only)
DS8 Ethernet RX Green ON when the Interface board receives Ethernet data.
OFF when the Interface board receives no Ethernet data.
DS9 Not used Green Not used (debug only)
DS10 X-Ray On Yellow ON when X-Rays are being generated
OFF when X-Rays are not being generated
DS11 Active link connection Green ON when active Ethernet connection exists.
OFF when no active Ethernet connection exists.
DS12 Exposure Command Yellow ON when an exposure command is received
OFF when no exposure command is received
DS13 Exposure Enable Yellow ON when an exposure is currently enabled
OFF when an exposure is currently not enabled
DS13
DS12
DS10
DS11
DS8
DS9
DS7
DS6
DS4
DS5
DS3 DS2 DS1
J11
J2
J3
J4
J1
J6J7
Jn1
Jn2
• Board-Interface PL104; see component index page 158 .
