Chapter 3 Page no. 300
Cables.FM
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Cable Lay-out and Pin-out
1-7. W104 - PDU Power Cable
PDU Board PL101 J1 to EMC filter E101 P’, N’.
1-8. W105 - 48 V DC Cable
AC/DC Converter Module J2 to EMC Filter E102 N.

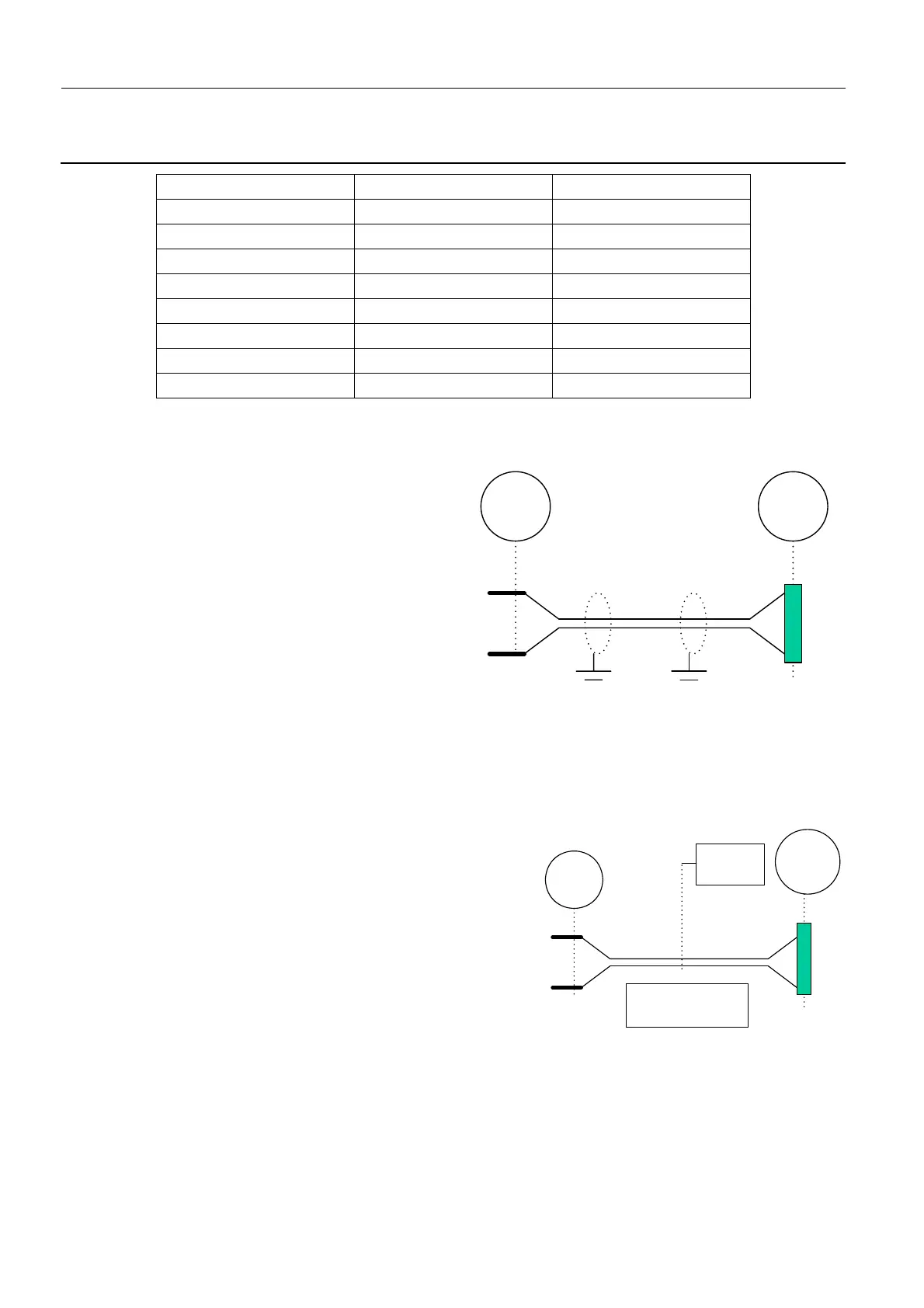

1-9. W106 - AC/DC Power
AC/DC Module Board PS101 J137 to EMC filter E101 P’, N’.
1-10. W107 - AC/DC Databus
AC/DC Module Board PS101 J138 to PDU Board PL101 J3.
J2-12 L Power On Command/reserved
J2-13 H-Motion Enable RT-CAN Diff 5/2.5V
J2-14 L-Motion Enable RT-CAN Diff 2.5/0V
J2-15 Command CAN Electric CAN Ground
J2-16 P Power supply 12 V
J2-17 H-CAN Network CAN Diff 5/2.5V
J2-18 L-CAN Network CAN Diff 2.5/0V
J2-19 H-Spare RT-CAN Diff 5/2.5V
J2-20 L-Spare RT-CAN Diff 2.5/0V
J1E101
1
4
P’
N’
Shielding
J1
37
E101
Pin 1 : Phase
Pin 3 : N
1
3
W106
2345983
To Next Page
