GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Cable Lay-out and Pin-out
Page no. 301 Chapter 3
Cables.FM
1-11. W108 - 48 V DC Cable
AC/DC Converter Module J1 to EMC Filter E102 P.
1-12. W110 - 48 V DC
PDU Board PL101 J5 to Terminal block ST102.

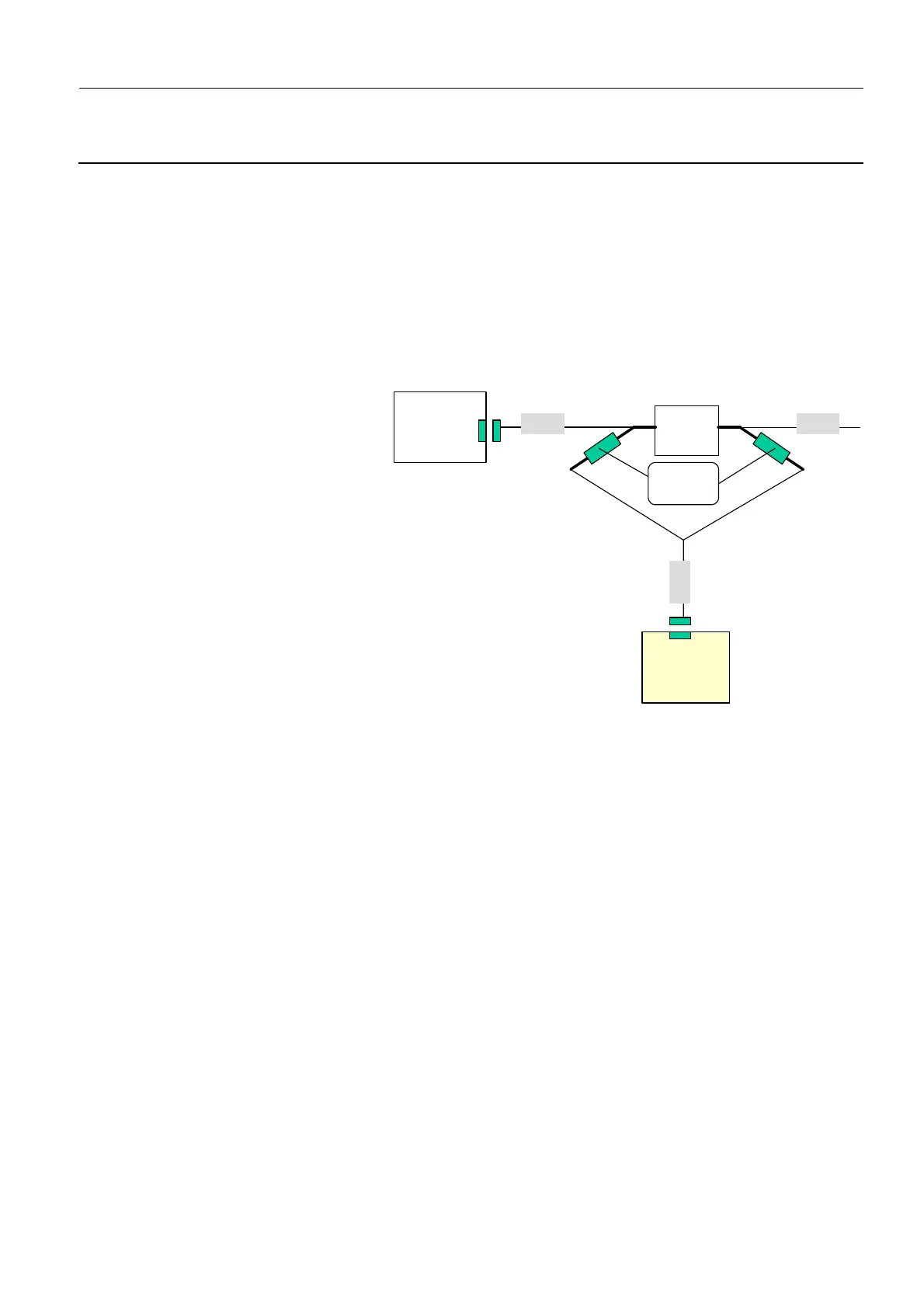

1-13. W109/W111/W113 - Shunt Cables
Shunt resistor and cable assembly:
1-14. W111 - 48 V DC Cable
See W109/W111/W113 - Shunt Cables on page 301.
1-15. W112 - 48 V DC Cable 4
EMC filter E102 N’ to Terminal Block ST102-X1.
1-16. W113 - 48 V DC Cable
See W109/W111/W113 - Shunt Cables on page 301.
AC/DC
PS101
W109
Shunt
R101
R
4.7kOhm
0.5W 5 %
W111
W113
J1
12
PDU
PL101
J4
Board
W109 - 48 V DC
connects shunt resistor R101 to the EMC filter E102.
W111 - 48 V DC
connects shunt resistor R101 to the PDU Board PL101.
W113 - 48 V DC
connects shunt resistor R101 to the terminal block ST102-F1/2.
