Chapter 4 Page no. 344
Chap-Pre-Requirements.fm
GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Pre-Installation System Requirements

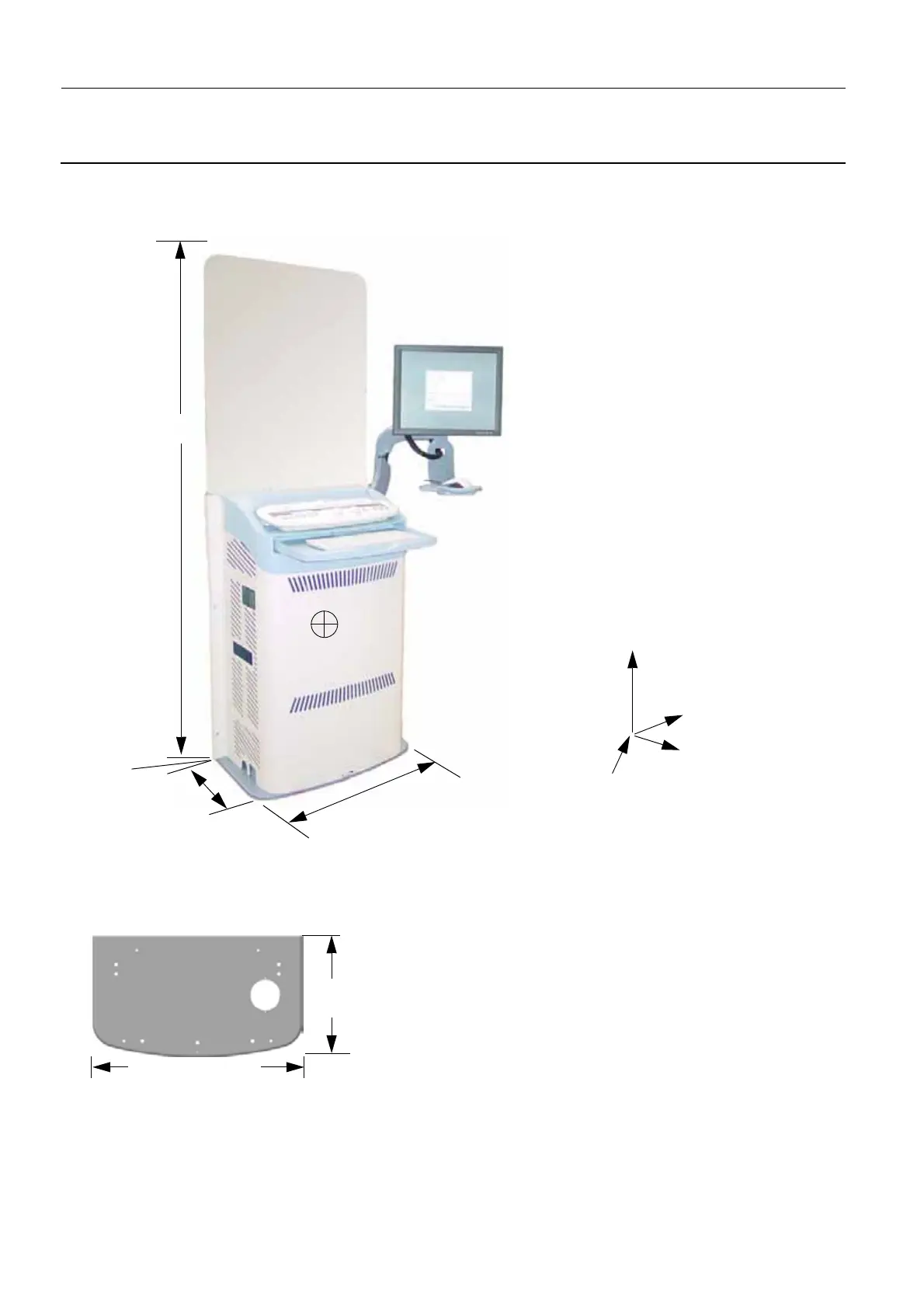

ILLUSTRATION 4 - CONTROL STATION DIMENSIONS - MM (INCHES)
• Anchor Points for the Control Station
Refer to Anchoring Inserts on page 354.
2225 (87.5) *
400 (15.75)
710 (27.9)
Center of
Gravity
X
Z
Y
Origin
Center of Gravity (origin at bottom,
left, back)
(with Lemerpax Radiation Shield):
X = 213 (8.4)
Y = 358 (14.1)
Z = 654 (25.75
)
All measurements shown as: mm (inches)
Control Station base plate
710 (27.9)
400 (15.75)
Cable entry
from left of
the Control
* - Control Station height with:
Mavig Radiation Shield is 1896 (74.7)
Lemerpax Radiation Shield is 2225 (87.5)
Origin
