Pre-Installation System Requirements
Page no. 345 Chapter 4
Chap-Pre-Requirements.fm

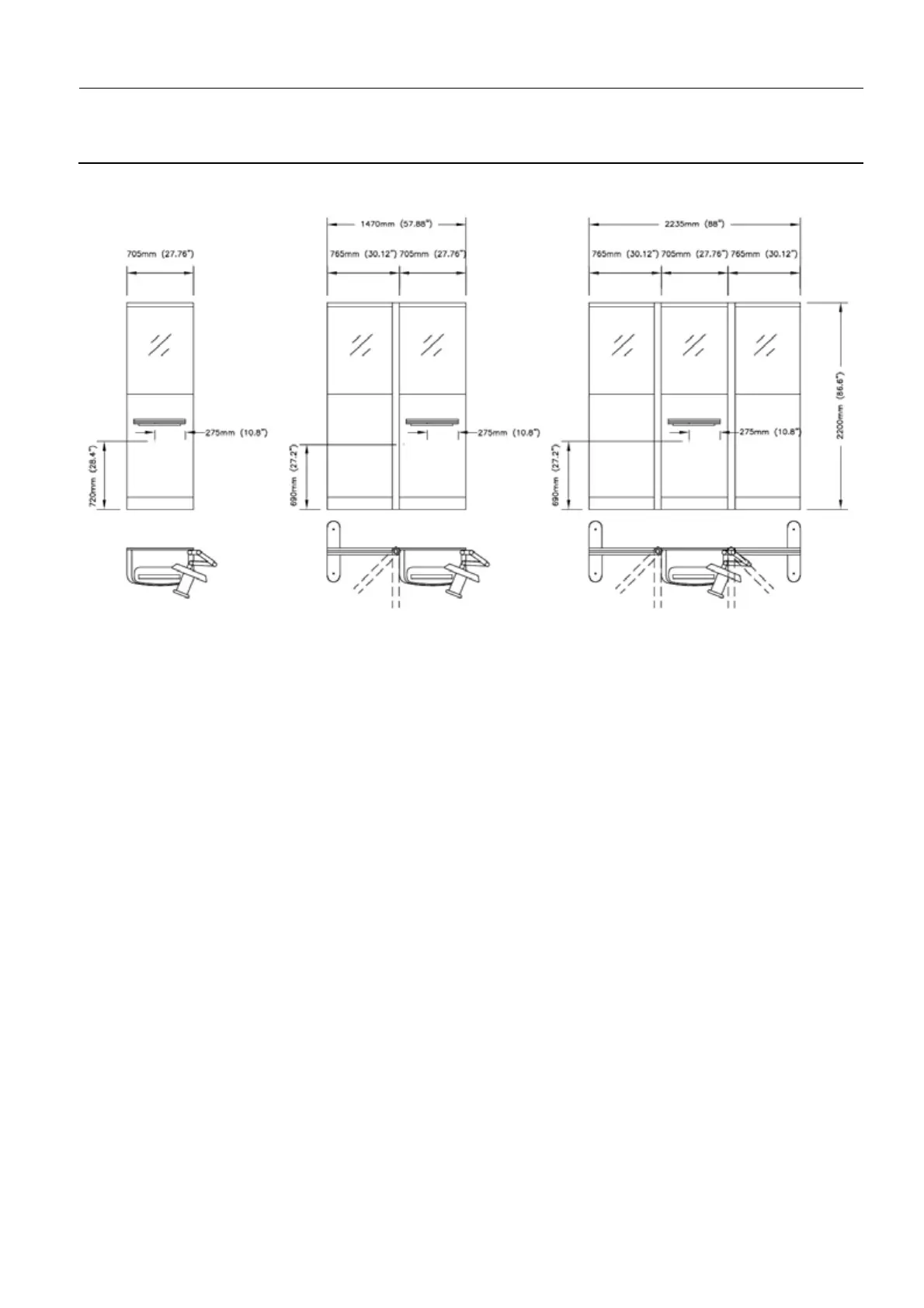

ILLUSTRATION 5 - DIMENSIONS OF OPTIONAL RADIATION SHIELDS
690 (27.2)
720 (28.4)
275
(10.8)
All measurements shown as: mm (inches)
Double Configuration:
Optional radiation shield plus one optional
radiation screen extension on one side (left or right)
Single Configuration:
Optional radiation shield
Triple Configuration:
Optional radiation shield plus one optional
radiation screen extension on each side
Ordering:
Optional radiation shield: S30321MM (2234536)
Optional radiation shield extension (never ordered alone): S30311CW (2166641)
