GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A001 - Unpacking the Gantry and Generator Cabinet
Page no. 393 Chapter 6
JC-PHY-A-001.fm
6-3 Unpack Gantry

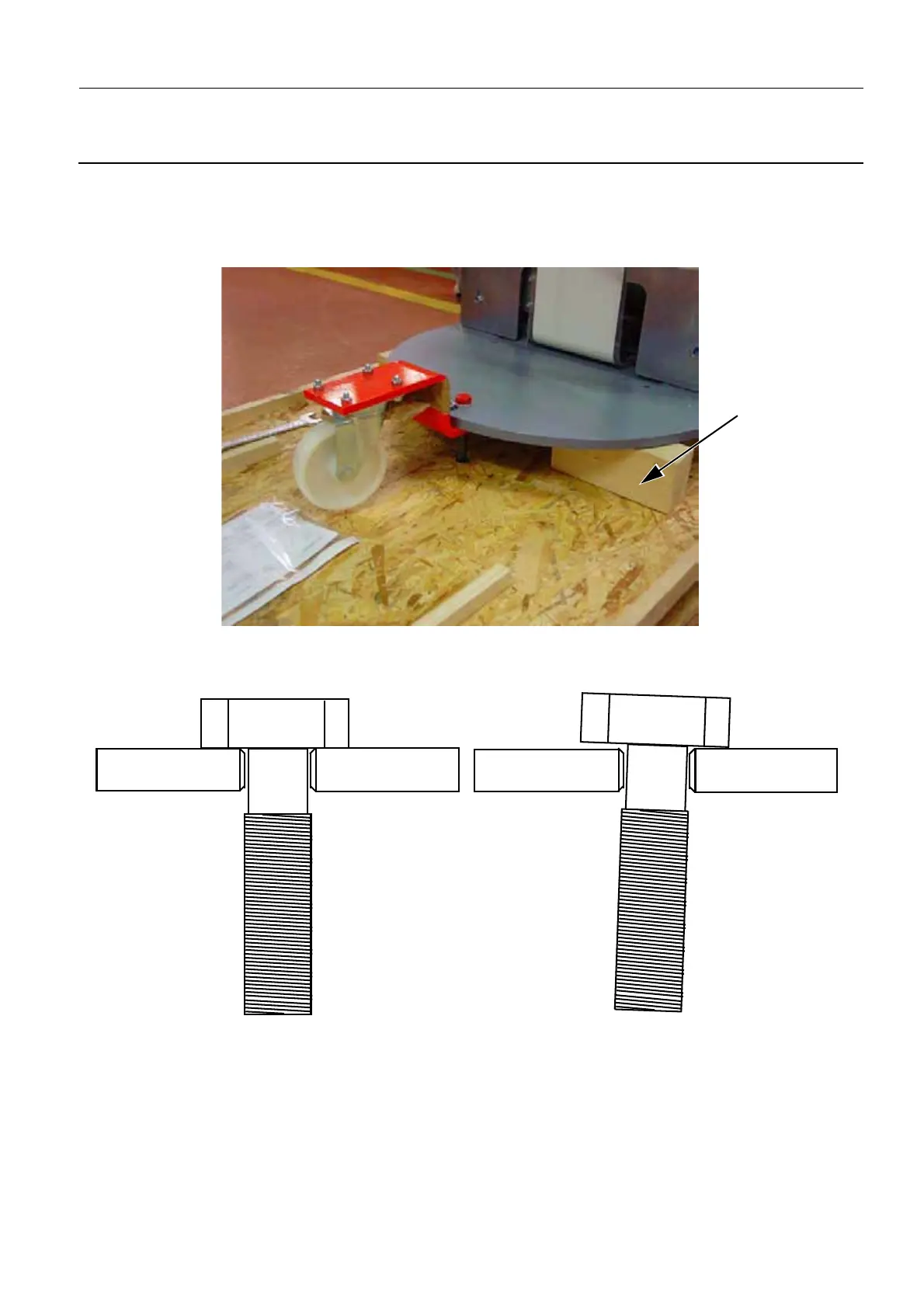

1. The Gantry base sits on four wooden blocks (1) so that the Gatry base wheels are raised from the
pallet floor. Three bolts (one at the front and two at the back) (2) are attached from the Gantry base to
a metal plates which exist below the pallet floor.
2. Ensure that the three bolts are perpendicular to the Gantry base so that you do not damage the bolt
threads.
1
Gantry base
Gantry base
Gantry base
Gantry base
GOOD : Perpendicular
No risk of thread damage
BAD : Not perpendicular
Risk of thread damage
